China Best Products Cherry picker

Aerial Work Platforms / Truck Mounted Booms / Trailer Mounted Booms

Aerial Work Platforms:  Series 10, Series 20, and Series 42

Aerial Work Platform: Series 10



Features:

• Suitable for single person to work upraised;
• High-strength aluminum alloy are used for the single lifting mast;
• the unit is light, easy and convenient to move;
• Compact design makes it easy in passing through narrow and lower passage on ordinary elevators;
• Special-designed guide rollers between each segment of mast ensure stable descending and ascending;
• Double protection with supporting bolts and evolvable stabilizers minimize the blind area of aerial work
  platform usage;
• Conforms to CE;
• Available accessories: mast stand, auxiliary for step;
• Power Supply: Single phase AC as standard, DC or both AC as option.

Specification:



Model		CBT6-1006	CBT6-1008
Working Height	mm	7700	9700
Platform Height	mm	6000	8000
Platform Capacity	kg	136	136
Loading Persons	p	1	1
Platform Size	mm	630x650	630x650
Voltage	v/hz	AC220/50	AC220/50
Power Pack	kw	0.75	0.75
Stored Dimensions	mm	1290x880	1290x880
Stored Height	mm	1740	2080
Net Weight	kg	300	330

                                                                                                                                                  Back, Go top

Aerial Work Platform: Series 20



Features:

• Suitable for 1-2 person to work upraised with better loading capacity;
• Two masts are descended or ascended synchronously;
• Entire lifting unit with guardrail offers such high intensity and convenient installation and disassembling that
  it could complete assembling or disassembling through lifting only once;
• Easy maneuvering and with straddle legs similar to that of single mast aerial work platform;
• Conforms to CE;
• Available accessories: mast stand, auxiliary for step use, side-sheer unit;
• Power Supply: Single phase AC as standard, DC or both AC as option.

Specification:

Model		CBT8-2008	CBT10-2010	CBT12-2012	CBT12B-2012
Working Height	mm	9700	11700	13700	13700
Platform Height	mm	8000	10000	12000	12000
Platform Capacity	kg	300	300	250	160
Loading Persons	p	2	2	2	1
Platform Size	mm	1200x600	1200x600	1330x600	1330x650
Voltage	v/hz	AC220/50	AC220/50	AC220/50	AC220/50
Power Pack	kw	0.75	0.75	1.5	1.5
Stored Dimensions	mm	1390x880	1390x880	1590x1015	1590x1015
Stored Height	mm	1780	2060	2480	2200
Net Weight	kg	560	680	750	780

                                                                                                                                                   Back, Go top

Aerial Work Platform: Series 42



Features:

• Two sets of independent upper and lower lifting structures;
• Four groups of aluminum alloy mast combination for lower lifting structure and double mast combination for
  upper lifting structure;
• The two structures can be shifted automatically with better operation and stability;
• The guardrail can be entirely hung on the platform without occupying too much room, offering easy in
  passing through lower passage;
• Its overall dimension is the smallest among similar products and it can be used both outside and indoor;
• Electric driving unit is equipped for moving;
• Power Supply: Single phase AC;
• Traveling Method: powered propeller as standard, manual traveling as option;
• Available accessories: uninterruptible power supply;
• Conforms to CE.

Specification:

Model		CBT14-4214	CBT16-4216	CBT18-4218
Working Height	mm	15700	17700	19700
Platform Height	mm	14000	16000	18000
Platform Capacity	kg	200	160	160
Loading Persons	p	1	1	1
Platform Size	mm	1350x810	1480x810	1480x810
Voltage	v/hz	AC220/50	AC220/50	AC220/50
Power Pack	kw	0.75/1.5	0.75/1.5	0.75/1.5
Stored Dimensions	mm	1690x1130	2260x1190	2260x1190
Stored Height	mm	1860	2080	2180
Net Weight	kg	1150	1150	1600

                                                                                                                                                   Back, Go top

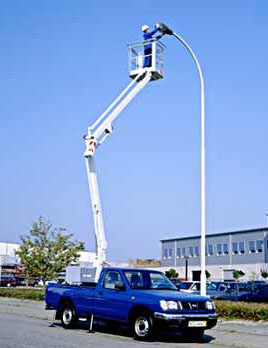

Truck Mounted Booms: PKK Series

Features:

• Waterproof press buttons;
• Up-under hydraulic pressure areas mutual lock for safety;
• Detachable work platform from camion;
• Completely hydraulic pressure control;
• Use and maintenance handbook
• Conforms to CE.

Specifications:

Model		PKK110	PKK130
Articulated construction	arms	3	3
Working height	m	approx. 10.50	approx. 13.00
Cage floor height	m	approx. 8.50	approx. 11.00
Lateral outreach to either side	m	approx.  4.50	approx.  4.10
Safe load on cage	kg	max. 215	max. 215
Size of working cage (LxWxH)	m	1.1 x 0.65 x 1.1	1.1 x 0.65 x 1.1
Overall length in travelling position	m	approx. 5.00	approx. 5.50
Overall width in travelling position	m	approx. 1.70	approx. 1.70
Overall height in travelling position	m	min. 2.50	min. 2.50
Minimum clearance width	m	approx. 0.85	approx. 0.85
Min. jacked area (LxW)	m	approx. 3.00 x 3.00	approx. 3.00 x 3.00
Total load	kg	approx. 750	approx. 900
Range of rotation		359°	420°
Nominal input voltage	VDC/Kw	24/2	24/2
Power track to cage		installed inside the boom	installed inside the boom
Color		red, RAL 3020	red, RAL 3020

                  　                                                                                                                                                                                     Back, Go top

Trailer Mounted Booms: PTS Series



Features:

• Three articulated arms for PTS 100, only two articulated arms for PTS 120 and 140；
• Additional arm applied to  PTS 120 and 140;
• Hydraulic pressure drive for convenient manipulation;
• Ergonomic design for work cage;
• Tool box built in work cage;
• Detachable & lockable cage with a low clearance length;
• Use and maintenance handbook
• Conforms to CE.

Specifications:

Model		PTS100	PTS120	PTS140
Articulated construction	arms	3	2	2
Working height	m	approx. 9.60	approx. 12.00	approx. 14.00
Cage floor height	m	approx. 7.80	approx. 10.00	approx. 12.00
Lateral outreach to either side	m	approx. 4.10	approx.  4.50	approx.  5.50
Safe load on cage	kg	max. 120	max. 215	max. 215
Size of working cage (LxWxH)	m	0.8 x 0.7 x 0.7	0.95 x 0.65 x 1.1	0.95 x 0.65 x 1.1
Overall length in travelling position	m	approx. 4.61	approx. 5.85	approx. 6.85
Overall width in travelling position	m	approx. 1.57	approx. 1.59	approx. 1.59
Minimum clearance width	m	approx. 0.85	approx. 0.85	approx. 0.85
Overall height in travelling position	m	min. 1.98	min. 2.03	min. 2.20
Min. jacked area (LxW)	m	approx. 3.00 x 3.00	approx. 3.85 x 4.20	approx. 3.85 x 4.20
Total load	kg	approx. 750	approx. 1180	approx. 1450
Range of rotation		2 x 180°	359°	420°
Nominal input voltage (AC)	V/Hz/KW	230 / 50/0.75	230/50/0.75	230 / 50/0.75
Nominal input voltage (DC)	VDC/KW		24/2	24/2
Power track to cage		installed inside the boom
Color		red. RAL 3020
Control		electro-hydraulic
Jacks		hand operated
Jack plate diam.	m	approx. 0.145
Trailer		Single-axle trailer with pneumatic tyres
Driving speed	km/h	max. 80
Axle		brakeless
Drive		electric motor, 230 V/9.7 Amps.-1 kW
