China Best Products satellite receivers

Chinese receivers are not FCC certified, not for the customers in the states.

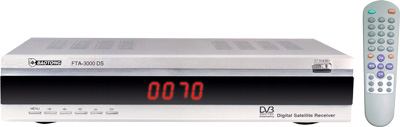

FTA3000

FOB China US$65/unit

minimum order 200 pcs



Features:
Digital Receiver
FTA-3000 (Free-to-Air)
Speed auto channel search by satellite or parameter;
Antenna selecting and position control function (DiSEqC1.2) (up to 16).
Channel name listing automatically and separately for TV and Radio;
Rapid shifting between lists.
Program preview in PIP (picture in picture)
PID set up
Program and Channel editing and deleting separately;
Program selecting rapidly.
Play/Pause function;
PAL/NTS/SECAM switchable.
Electronic Program Guide (EPG)
Favorite Programs setting/listing
Parent control programs setting /listing
Infrared and panel control.
Scheduler (up to 4);
LNB control;
Sound channel setting;
Voice volume control
Infrared remote control and operation for all function
Wide-range Voltage regulating power source.

A/V & Data In/Out

TV SCART

Video Output(CVBS, S-Video, RGB)

Audio Output

(Resolution : 20 bits DAC, Max. 2 Vrms)

VCR SCART

Video Output(CVBS)

Video Input(CVBS, S-Video, RGB)

Audio Output(Resolution : 20 bits DAC, Max. 2 Vrms(fixed))

VIDEO

RCA/Cinch, Video Output(CVBS)

AUDIO R/L

RCA/Cinch Volume and Mute Control

(Resolution : 20 bits DAC, Max. 2 Vrms)

S/PDIF

Digital Audio Output, Fiber-Optic (Resolution : 20 bits)

RS-232C

Transfer rate 115,200 bps, 9pin D-sub Type

RF-Modulator

RF-Connector

75, IEC 169-2, Male/Female

Frequency

470 - 860 MHz

Output Channel

CH21-69, CH28-69 or CH13-62 for the Re-modulator

TV Standard

PAL I/G/B/D/K selectable by Menu setting

Preset Channel

CH36(or TBD). Software changeable by Menu

Power Supply

Input Voltage

190 - 250V AC, 50/60 Hz

Type

SMPS

Power Consumption

Max. 15 W

Standby Power

<=8W

Protection

Separate internal fuse. The input shall have lightening Protection

Physical Specification

300 x 60 x 240 mm(Excluding the Foot)

Foot height is 8 mm

Weight (Net)

Around 1.75 kg

Operating Temp

0to + 45

Storage Temp

-10 to + 70

Storage Humidity

5% ~ 95% RH (Non-Condensing)

Please note: The specification of the STB may be changed without notice in advance.

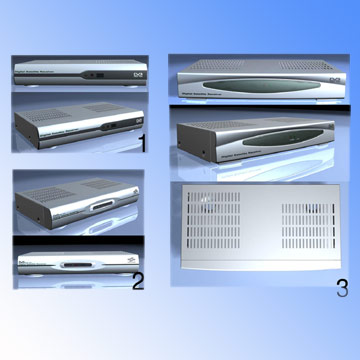

CG5860 Satellite receiver

FOB China US$65/unit

minimum order 500 pcs



FOB China US$65/unit

minimum order 100pcs

compatible with Pansat, Fortec

The receiver's size is 240 x 60.5 x 359mm, weight 1.8kg.
One carton can be loaded 7 units with size 485 x 370 x 260
The total G.W. for one carton loaded goods is 13kg.



Model No: CP-418X Features:

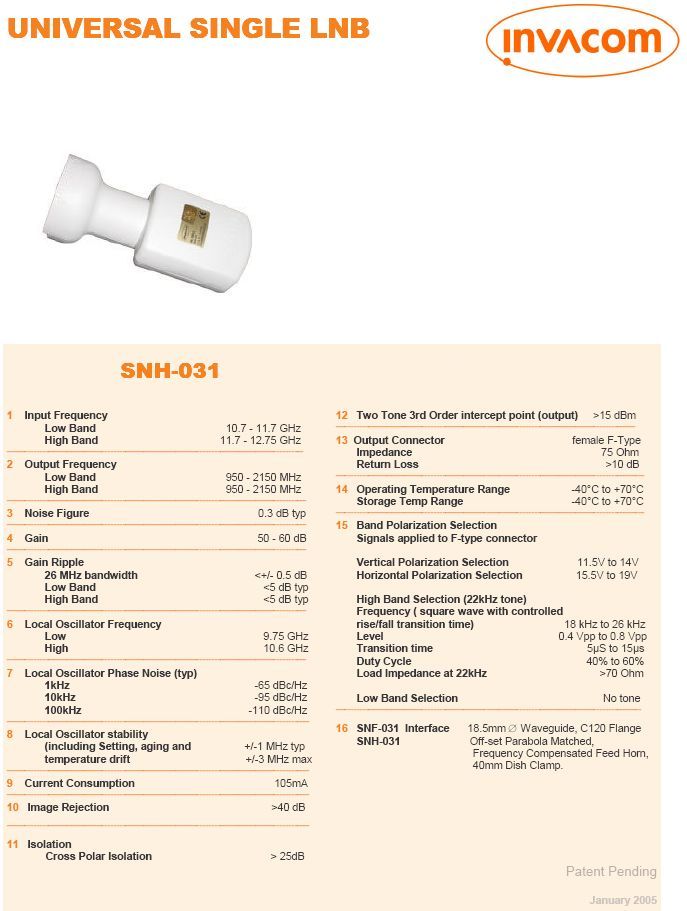

Universal Single 0.3 db LNB US$60 One dish two satellites
