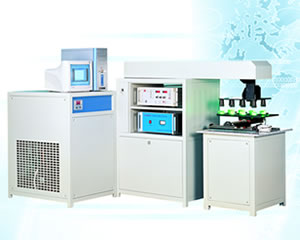

ChinaBestProducts TJ YAG-500 series Laser Sub-surface Engraving System

Characteristics：Using laser controlled by the computer as the processing method, the machine engraves all kinds of tri-dimensional patterns inside transparent crystal glass. Under the control of the computer, crystalline lens and focus point of laser make relative movement. The focus point will gasify into numerous smaller & ordered points because of optical effect inside the crystalline lens and the points will constitute an exquisite & perfect tri-dimensional pattern which can be made through some software such as 3DMAX, AutoCADRl4, & PHOTOSHOP. The machine has high reliability and can work continuously for a long time and engrave at a high speed. The non-touch style process ensures that the surface of the crystalline lens keeps its original fineness.

Purpose：Engrave tri-dimensional patterns, characters and portraits that are worth collecting, appreciating and memorizing inside the transparent crystal glass in different specs and shapes.

Application domain：Craft gifts, decoration, and glass industry, etc.

CLASSIFICATION CHART OF TJYAG SUBSURFACE ENGRAVING MACHINES:

Model	Laser head	Wavelength(nm)	Size (mm)	Control system	Cooling system	Engraving speed(point／min)	Certification	Price FOB Shanghai USD
3D Camara								19,800
504C	8	532	300X300X90	servo motor control system	compressor cooling system	10000—12000	CE	31,000
505B	1	532	280x280x90	servo motor control system	compressor cooling system	6000-10000	CE, FDA 0410154	29,000
505B	2	532	280x280x90	servo motor control system			CE, FDA	29,000
522	1	532	60x60×85	servo motor control system		10000-12000	CE, FDA	30,000
523K	1	532	Φ60×85	servo motor control system		120000-180000	CE, FDA	77,000

TJ YAG-505B (one laser head) 2 poly wood cases, total 1.831CBM, 520KGS

TJ YAG-505B (two laser heads) 2 poly wood cases, total 1.831CBM, 520KGS

TJ YAG-504C (8 laser heads) 3 poly wood cases, total 2.427CBM, 625KGS

TJ YAG-522 (1 laser head) 1 poly wood case, total 0.910CBM, 400KGS

TJ DP-523K (1 laser head) 1 poly wood case, total 0.550CBM, 200KGS

ship by ocean or air to world wide, ask us for shipping charges.
　

Conditions required to install laser subsurface engraving machines:

1、Power source：380V±5%/50HZ，three phase four wire, 20A

2、Ambient temperature：5-35℃

3、Relative humidity：≤75%（non-coagulation）

4、Working environment：clean, dust free relatively

Guarantee: We guarantee that the commodity hereof is made of the best materials with first class workmanship, brand new and unused and complies in all respects within the quality and specification. The guarantee period shall be 12 months counting from the date on which the commodity arrives at the port of destination, not including the round way air-ticked and other mess fee of our engineer oversea. After the guarantee year we will provide service by payment.

For the installation, operation and maintenances of the machine, we will provide a complete VCD and manual which particularly introduce everything above. At the same time, we can provide the free training for customer in our company. If the customer ask our engineer to install and service for the machine oversea, Please pay all the expense of transport, food and hotel of the engineer abroad.

PAYMENT TERMS: 100% T/T in advance

TIME OF SHIPMENT: Within 30 days after receiving payment.

Ask us

3D PORTRAIT LASER ENGRAVING SYSTEM C

There are 3 kinds of 3D portrait laser engraving systems as follows:

3D portrait laser engraving system A	505A laser subsurface engraving machine + 3D camera
3D portrait laser engraving system B	505B laser subsurface engraving machine + 3D camera
3D portrait laser engraving system C	503EB laser subsurface engraving machine + 3D camera

3D CAMERA

In the models TJ YAG-505A,505B,503EB laser subsurface engraving systems, 3D cameras such as the 3D Capturor II (0.3M pixels) or the 3D Mega Capturor II (1.3M pixels) can be used to take 3D photos of some persons to form 3D portraits with excellent quality.

Mega 3D camera is the latest innovation in art 3D digitizing technology. Its ability to capture more that 1.3 million points of geometry and texture makes this capturor a market leader in its field. It is renowned for it’s

-- Speed of Capture
-- Incredible precision
-- Multiple configurations
-- Great resolution
-- Scalability
-- Price

　

Technical Specifications

　

3D Camera

FOV

401X321

DOF

450

Resolution in X

0.3

Resolution in Y

0.3

Resolution in Z

0.4

Stand Off

1300

Ref. Distance (Z=0)

1500

Texture (Pixels)

1280X1024

Geometry (pts)

1.3M

Acqu. Time (sec)

0.7

　

All units in millimeters (mm) unless otherwise specified

　

TJ YAG-504C LASER SUBSURFACE ENGRAVING MACHINE

To meet the requirements of international market, our company develops YAG-504C laser subsurface engraving machine which accords with the CE standard of EU. This model possesses the functions and virtues of the original YAG-504 model, with 8 laser heads, thin dots, green laser, it can engrave the same graphics inside 8 workpieces at the same time, which facilitates large quantities of highly accurate processes of crystal craftworks. This model makes a great improvement on laser safety precautions, and according to the CE standard, it adopts enclosed engraving method and safety interlocks to ensure the operation safety and maintainers’ security.

1. Product main technical index

　

Laser Medium                                Nd: YAG

Laser Wavelength                             532nm

Highest Frequency of Laser Power Supply         100Hz

Power of Servo Motors                         3×200W

Maximum Engraving Range                     300mm×300mm×90mm

Engraving Speed                              3000~5000dots/min

Power of Laser Power Supply                    2 KW

Laser Head Number                            8

Continuous Working Time                       12 hrs

Working Current of the Whole Machine            20 A

Deadweight of Main Machine                    260 kg

Dimension of Main Machine                     980mm×860mm×1200mm

　

2. Technical index of circulating water cooler

　

Cooling Power                               3 KW

Water Medium                               deionized water or pure water

Water Supply Pressure                      0.1 Mpa

Consumed Power                             < 2KW

Weight                                     120kg

Dimension                                  650mm×650mm×875mm

　

　

TJ YAG-505B laser subsurface engraving machine obtains the following characteristics: first, take 3D photo of a person with 3D camera and process it in computer to form 3D portrait; second, utilizing laser focusing technology, it can engrave 3D everlasting portrait inside crystals with a rapid speed 6000~10000dots/min. With the development of material life, people pay more attention to the pursuance of spiritual individuality. Therefore, with a broad market, the 3D subsurface engraved portraits are becoming more and more popular.

1. Product main technical index

　

Laser Medium                                Nd: YAG

Laser Wavelength                             532nm

Highest Frequency of Laser Power Supply         200Hz

Power of Servo Motors                         3×200W

Maximum Engraving Range                     280mm×280mm×90mm

Engraving Speed                              6000~10000dots/min

Power of Laser Power Supply                    3 KW

Laser Head Number                            1

Continuous Working Time                       12 hrs

Working Current of the Whole Machine            20 A

Deadweight of Main Machine                    200 kg

Dimension of Main Machine                     750mm×775mm×1310mm

　

2. Technical index of circulating water cooler

　

Cooling Power                               3 KW

Cooling Medium                             R22

Water Medium                               deionized water or pure water

Water Supply Pressure                         0.18 Mpa

Consumed Power                             < 2KW

Weight                                     110kg

Dimension                                  650mm×650mm×875mm

　

　

TJYAG-522 3D portrait laser subsurface engraving machine

[feature 1]	small dimension, compact structure, small water cooler placed inside
[feature 2]	fast speed,
[feature 3]	high quality, superb in workmanship
[feature 4]	reasonable price

Information

　

TJ YAG-522 3D portrait laser subsurface engraving system consists of TJ YAG-522 galvo scanner laser subsurface engraving machine and 3D camera/scanner. TJ YAG-522 3D portrait laser subsurface engraving system has the following characteristics: firstly, snapping 3D photo of a person with 3D camera and edit it in computer to form a 3D portrait/head; secondly, utilizing laser focusing technology, the laser focal point can print 3D everlasting portrait into crystal blocks. This model is equipped with the galvanometer scanner so that it can work at a high speed; and it’s an integrated unit and its compact structure can save a lot of operation space. in particular, our 3d portrait crystal products look amazingly animated, With the development of modern material life, more and more people are paying attention to the pursuance of spiritual individuality. Therefore, with a broad market, the 3D subsurface engraved portraits are becoming more and more popular.3D Mega camera is the latest innovation in art 3D digitizing technology. Its ability to capture more than 1.3 million points of geometry and texture enables this capturor to take a lead in its domain. It is renowned for it’s Speed of capture (0.7sec), Incredible precision, Multiple configurations, Great resolution, Scalability, Price.

Main technical index of the machine

Laser Medium Nd: YAG

Laser Wavelength 532nm

Highest Frequency of Laser Power Supply 200Hz

Power of Servo Motor 200W

Maximum Engraving Range 60mmx60mm×85mm

Engraving Speed 10000~12000dots/min

Maximum required power the whole machine 6 KW

Laser Head Number 1 piece

Recommended Continuous Working Time 12 hrs/day

Working Current of the Whole Machine <30 A

Weight of the Whole Machine 350 kg

Dimension of the Whole Machine 700mm×760mm×1530mm

Refrigerating Medium(environment friendly) R407C

Water Medium deionized water or purified water

Water Supply Pressure 0.18 Mpa

Regular Power of the whole machine < 4KW

TJDP-523K 3D portrait laser subsurface engraving system

[feature 1]	Superfast, enclosed engraving, no lamp consumption
[feature 2]	Top quality, first class and matchless technology in the world
[feature 3]	Most reliable and dependable performance
[feature 4]	All-in-one compact structure and small dimension, light, reasonable price

Information

　

TJ DP-523K diode-pumped galvo scanner laser subsurface engraving machine has the following characteristics: firstly, taking a 3D photo of one or more persons with a 3D camera and process it in computer to form 3D portraits; secondly, utilizing laser focusing technology, it can engrave 3D everlasting portraits in crystal glass. This model is equipped with the advanced galvanometer scanner and laser diode as well as the 3KHz laser power supply so that it can work at an amazingly fast speed; and it adopts the all-in-one structure to greatly save the operation space and become less heavy. Compared with common lamp-pumped laser subsurface engraving machines, this machine is excellent in small dimensions, low power consumption, good laser quality, high efficiency, easy maintenance, etc. it has swivel casters and adjustable metal support at the base which facilitate its removal, enclosed engraving, top quality first class and matchless technology in the world, most reliable and dependable performance,

Main technical index of the machine

Laser Medium Diode-pumped Nd: YAG

Laser Wavelength 532nm

Highest Frequency of Laser Power Supply 3KHz

Servo Motor(200W) and galvo scanner

Maximum Engraving Range Φ60mm×85mm

Engraving Speed 120000~180000dots/min

Power of Laser Power Supply 300W

Maximum Power of the Whole Machine 1KW

Scan Laser Head Number 1

Continuous Working Time 12 hrs

Working Current of the Whole Machine <7A

Weight of the Whole Machine 170 kgs

Dimension of the Whole Machine 570mm×650mm×1220mm

Cooling Medium R134A (environment friendly)

Water Medium Deionized water or purified water

HS code 84561080 US duty 2.4% Machine tools operated by laser or other light or photon beam processes, other than for working metal, nesoi

duty free for Canada

	3D Camera
FOV	401X321
DOF	450
Resolution in X	0.3
Resolution in Y	0.3
Resolution in Z	0.4
Stand Off	1300
Ref. Distance (Z=0)	1500
Texture (Pixels)	1280X1024
Geometry (pts)	1.3M
Acqu. Time (sec)	0.7
