ChinaBestProducts HGL£­LWY Series of Laser Welding Machine

FOB Wuhan China

HGL-LWY60 US$15000

HGL-LWY120P USD$20,000

HGL-LWY250P USD$25,000

HGL-LWY300P USD$31,000

HGL-LWY400P USD$50,000

Lead time 15 days

¡¡

Application and Features

HG Laser has engaged in the welding research for micro-welding and sealed welding of thin material for twenty years. The series of laser welding machine¡¢drilling machine produced by HG Laser , as the first one, went into the domestic electronic and communication industries to replace the imported equipment, and have obtained tremendous economic and social profits. This project received the prizes of national¡¢provincial and ministry grade for several times.

¡¡
¡¡¡¡Advantages

Stable laser power, high precision, easy to operate, small volume, long service time.
Typical Specifications

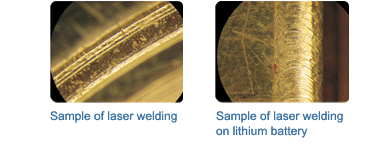

Welding the fittings of monitor electron gun, seal weld of Lithium battery outer shell, seal weld of the outer shell of all£­tantalum capacitor, spot welding of HD magnetic head main part, spot welding of optical fiber coupler parts, seal weld of pressure transducer, welding of nuclear fuel container, welding of engine high temperature alloy, drilling of metal screen mat, cutting and drilling on sheet steel.

¡¡
¡¡¡¡Specification

¡¡
Item/ Model LWY-25P LWY-150P LWY-300P LWY-500P
Laser medium Nd3+£ºYAG
Laser wavelength 1.06¦Ìm
Facula diameter ¦Õ6mm ¦Õ7mm ¦Õ8mm ¦Õ8mm
Average output power 25W 150W 300W 500W
Single pulse energy 25J 50J 80J 100J
Pulse width 0.1¡«20ms
Pulse repeated frequency 0¡«100Hz
Cooling system special laser cooling system
Numerical controlling work table can be equipped according to the demand of customers
Monitoring system double ocular microscope and monochrome industrial television(option)
Dimension 2200mm¡Á1200mm¡Á1600mm
Power supply and cooling water three-phase, 380VAC£¬10KVA£¬deionized water
Components laser generator, laser power supply, cooling system, beam delivery and focusing system, numerical controlling work table etc.
Weight 200Kg
