ChinaBestProducts  HGL-LSY50F high-speed laser marking/cutting system

FOB Wuhan China US$21,900

One year warranty

Application and Features

Laser Galvo marking technology is the great reformation in laser marking field this century. HGL-LSY50F high speed Laser Marking system is adopted from foreign advanced technique. The key components which includes galvo head, ceramic cavity and Q switch, are completely imported. This system has higher repeatability, faster marking speed, positioning accuracy more widely marking scope.
HGL-LSY50F Laser Marking System has higher reliability, easy serving and convenient operation. With automatic and semi-automatic transferring equipment which can be customized by our corporation, the system can be applied to mark on line in electronic, communication, packaging, hardware industry and so on.

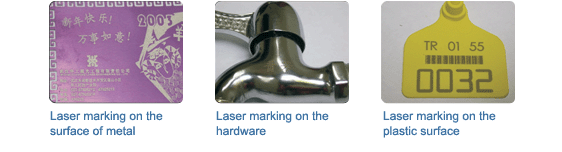

Application: electronic device, communicate device , computer, cell phone press key, beverage, medicine, cigarette, hardware, case button, watch shell, label, cleaning utensil etc.

¡¡
¡¡¡¡Advantages



¡¡
¡¡¡¡Specification

¡¡
Laser medium: Nd3+:YAG
Average power: 50W
Laser wavelength: 1.06¦Ìm
Sound-optical modulating frequency: 0¡«50KHz
Marking speed : Max. line scanning speed: 7000mm/s
Depth of marking: 0.001¡«0.2mm
Marking area: 70mm¡Á70mm£¬110mm¡Á110mm £¬160¡Á160mm(Optional)
Dimension: 550mm¡Á750mm¡Á1100mm
Power supply and cooling water: 3 phase, five-line AC, 50Hz£¬4.5KW, deionized water
Components: main control cabinet (include controlling system, computer, laser power supply, ¡¡¡¡¡¡¡¡sound-optical Q-switch power supply), cooler, main frame (include laser generator, sound-optic ¡¡¡¡Q-switch, galvo head, working table)
Weight : 220Kg
