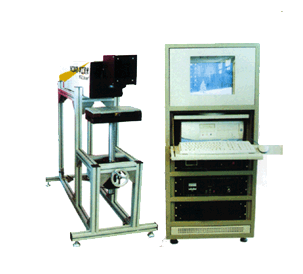

ChinaBestProducts HGL-LSC Series of Laser Marking System
Characteristics and Advantages
This series of laser marking system is made up of CO2 laser , high speed
scanning lens and some auxiliary parts with high quality which are made in
SYNRAD Co. in USA . It can mark on the surface of working material without
contact, and the characters and figures will never worn out. The CO2 laser made
by SYNRAD corp. is metal sealed off structure with diffuse cooling system. It
has the advantages of high quality, high positioning accuracy, high speed, high
reliability and long service time even 30000 hours
Main application
¡ï It can carve on many kinds of non-metallic or metallic materials. and is
widely used in electronic components (parts, chips), carpentry, plexiglass,
plastic, fastener, PCB board, online and off-line marking for packing of food
and beverage, artistic engraving on bamboo and wood, cutting for non-metallic
materials etc.
¡ï It can be used in bar code, 2-dimension code, graphics characters.
It is controlled by pc , easy to operate, and can be compatible with all kinds
of software, such as AUTOCAD, CORELDRAW, PHOTOSHOP etc.
¡ï The key parts of the machine are produced by the companies with advanced
technology, has high stability and the working hours can last 24 hours
uninterruptedly.
Specification
Item/ Model: HGL-LSC10F HGL-LSC25F HGL-LSC50F HGL-LSC100F
Laser medium: CO2
Laser device: SYNRAD corp. in USA
Output power: 10W 25W 50W 100W
Max marking area: 50mm x 50mm, 70mm x 70mm, 110mm x 110mm, 175mm x 175mm
Max line marking speed : 7000mm/s
Dimension:1250mm x 1450mm x 1300mm
Power supply and cooling water:1 phase, 220V£¬1¡«3KW£¬deionized water
Components: laser marking machine ( including high speed galvo head ,long life
radio-frequency stimulated CO2 laser , outside beam delivery system) ,cooling
system, control power supply, computer
Life time of the tube 30,000 hours Weight 60Kg 100Kg 120Kg 150Kg
FOB Wuhan Price (USD) $12,000 $20,000 $25,000 $35,000
Sample of laser marking on wood
Sample of laser marking on button
Sample of laser marking on IC chip
