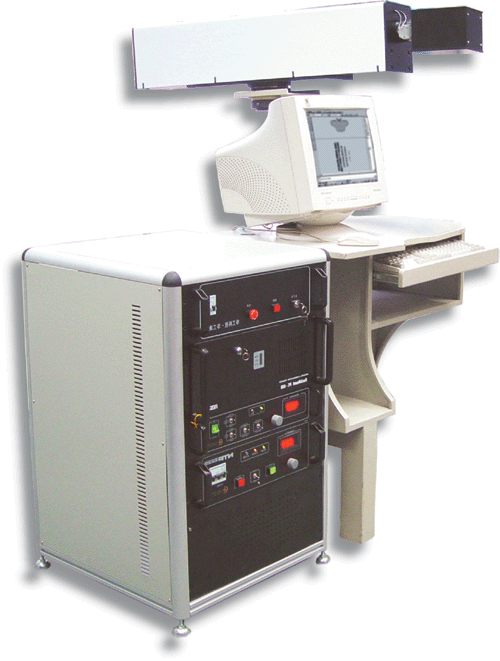

HGL-S Laser Scan and Show System
This series product include HGL－SS30 laser space scan system and HGL－SR10
laser show system. The system can variable laser beam and diagrams under the
computer control, using the laser characteristic of good directivity and
monochromaticity.
It can be used at royal celebration and skyrocket soiree with the smog
in the sky and on the water curtains as background to set off festal ambience
ulteriorly; and be fixed at airport, haven and dock etc.
Technical Specifications
| HGL－SS30 | HGL－SR10 | |
| Laser Medium | KTP/Nd:YAG | |
| Laser Wavelength | 532nm（green light） | |
| Laser Average Power | 10－30W（adjustable） | 10－20W（adjustable） |
| Laser Transmit Distance | 6－7.5KM(fair night sky) | |
| Laser Scan Frequency | 500Hz | |
| Laser Control | manual manage or automation （optionalness） | |
| power input for control system | 3 phase 380V,10KW | |
| power input for cooling system | 3 phase 380V,10KW,4KW | |
| power input for computer | 1 phase 220V,0.5KW | |
| power input for main engine | 3 phase 380V（±10％）,50Hz | |
| length |
532nm(green)
|
| radiation |
8mrad
|
| spin angle |
±20°
|
| laser power |
1-25W，35W
|
| beam diameter |
≥10mm
|
| range |
6－10km
|
| input power |
3 phase 380V，5KW
|
FOB Wuhan China $50,000
Spare laser tube $500 ea 6000 hours max
Lead time 30 days
packing, three parts, main system, cooling system, control panel
80×90×120 cm3
80×80×120 cm3
40×100×60 cm3
1.872 cbm
Weight 160Kg,80Kg,50Kg
