For Ceramic Scribing, Cutting
& Drilling

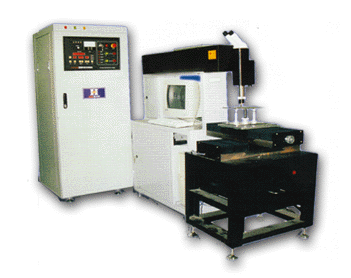

The CDC200 system is mainly used for ceramic scribing, cutting
and drilling, with the advantages of high working accuracy and
efficiency and lower cost. Automatic or semiautomatic
manufacturing can be carried out easily with the linkage control
from exterior signal. CDC200 system is used widely in the field
thick film circuit of manufacturing in micro-electronic. |
Technical Specifications:
|
Laser-Pulsed Solid State Laser:¡¡
|
|
|
Laser Medium
|
Nd3+:YAG
|
|
Wavelength
|
1.06 ¦Ìm
|
|
Single pulse energy
|
0 - 5 J
|
|
Pulse width
|
step adjustable
|
|
Max. rep. frequency
|
150Hz,0.1Hz/Step
|
|
Max. average output power
|
250W
|
|
Cooling
|
Dual circulating water cooling system Procession
Function:
|
|
Max. scribing speed?
|
200mm/min
|
|
Min. line wide
|
0.2mm
|
|
Cutting depth
|
0~1 .0mm
|
|
Cutting speed
|
200mm/min
|
|
Drilling range
|
¡Ý0.3mmOptional units
|
|
X-Y worktable
|
250mm*160mm(standard)
|
|
Monitoring system
|
Binocular stereosis microscope
|
|
CNC Driving system
|
According to the
accuracy of machine, the step
|
|
|
motor or
|
|
|
server motor can be chosen by user
|
|
|
¡¡
