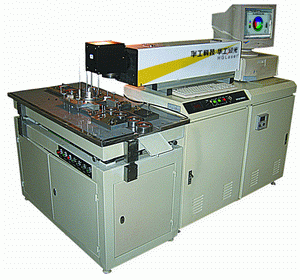

ChinaBestProducts HGL series of Special Bearing Marking System





Application and Features

This marking system is the perfect product to fulfill internationalization and strengthen the competitive ability. It is widely used in laser marking for many kinds of bearing. This system obtains the advantages of small volume, easy operation, high reliability and high speed, it is suitable for pipelining.


　　Advantages




　　Specification


Laser medium: Nd3+:YAG
Sound-optical modulating frequency: 500～20KHz
Output power: 50W
Marking speed: 1～50s/piece (according to the bearing)
Marking area: 70mm×70mm、110mm×110mm(Optional)
Dimension: 1900mm×800mm×1300mm
Power supply and cooling water: one phase220V，50Hz，4KW，deionized water
Components: main control cabinet, laser generator, cooling system, automatic feeding system(can be chosen)
Weight: 300Kg


Main specification of the bearing to be marked



Style/ specification: diameter thickness
Large scale 100mm～180mm 20mm～60mm
Middle scale 50mm～115mm 15mm～50mm
Small scale 30mm～75mm 20mm～60mm
Min. size 17mm～32mm 6mm～25mm
