| Model |
HHJM-700 |
HHJM-720 |
HHJM-704 |

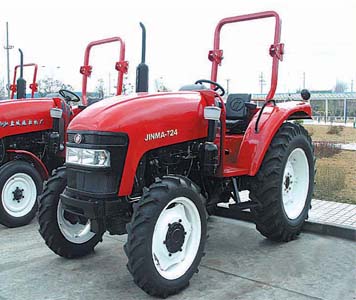

HHJM-724 |
| Drive type |
2WD |
4WD |
Overall
dimensions
£¨mm£© |
Total length |
4010 |
4058 |
| Total width |
1929 |
1929 |
| Total height |
2630 |
2782 |
| Wheel base£¨mm£© |
2188 |
2236 |
Wheel
tread
£¨mm£© |
Front |
As usual 1450 |
| Rear |
As usual 1510 |
| Min ground
clearance£¨mm£© |
430 |
340 |
Tractor weight
£¨kg£© |
Structural weight |
2770 |
2960 |
| Min use weight |
3000 |
3190 |
| Engine
¡¡ |
Model |
LR4105T79 |
R4105T19B |
LR4105T79 |
R4105T19B |
| Type |
4-Cylinder,vertical,water cooled,4-stroke |
Power/Rated speed
£¨kW/r/min) |
51.5/2200 |
53.0/2200 |
51.5/2200 |
53.0/2200 |
| Starting type |
Electric start |
| Displacement£¨L£© |
4.6 |
| Tire |
Front |
6.50-20 |
8.3-24 |
| Rear |
14.9-30 |
14.9-30 |
Turning radius
£¨m£© |
With one-side
braking |
3.9¡À0.3 |
4.3¡À0.3 |
| Without braking |
4.6¡À0.3 |
5.5¡À0.3 |
| Clutch |
Dual stage |
| Brake |
Dry friction,disc
brake |
| Gearbox |
Iz planet slowdown
compound |
| Steering type |
Hydraulic steering |
|
Distributor |
Type |
Semi-separated |
| Max lifting forces(kN) |
11.6 |
11.9 |
11.6 |
11.9 |
| Lifting linkage |
Rear 3-point
hitch,category 2 |
| Rated traction
force£¨N£© |
12500 |
13500 |
14500 |
15000 |
| Plowing depth
control |
Draft and position combined,float
dominate |
| Speed
(km/h) |
Forward |
Gear |
1st |
2nd |
3rd |
4th |
5th |
6th |
7th |
8th |
| Speed |
2.27 |
4.01 |
6.45 |
8.09 |
9.06 |
16.05 |
25.82 |
32.35 |
| Reverse |
Gear |
1st |
2nd |
| Speed |
3.15 |
12.61 |
| PTO |
Type |
Nonindependent |
| Speed(r/min) |
720 |
