| Model |
HHJM-550 |

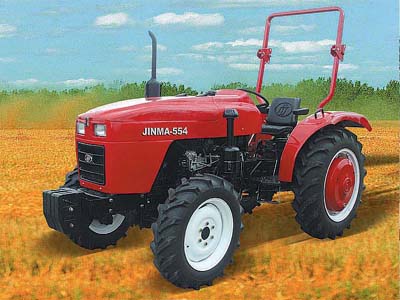

HHJM-554 |
| Drive type
|
2WD |
4WD |
Overall
Dimensions
£¨mm) |
Total length |
3855 |
3838 |
| Total width |
1830 |
1625 |
| Total height |
2440 |
2485 |
| Wheel Base£¨mm£© |
2007.5 |
2073 |
Wheel
tread
£¨mm£© |
Front |
1250-1550 |
1300 |
| Rear |
1300-1600 |
1300-1600 |
| Min ground
clearance(mm£© |
370 |
325 |
| Farming ground
clearance£¨mm£© |
430 |
375 |
Tractor
weight
£¨kg£© |
Structural weight |
1790 |
2000 |
| Min use weight |
1942 |
2163 |
| Engine |
Model |
SL4105BT |
| Type |
4-Cylinder,vertical,water cooled,4-stroke |
Power/Rated speed
£¨kW/r/min) |
40.4/2300 |
| Starting type |
Electric start |
| Displacement£¨L) |
3.810 |
| Tire |
Front |
6.00-16 |
8.3-20 |
| Rear |
12.4-28 |
12.4-28 |
Turning
radius
£¨m£© |
With one-side
braking |
3.8¡À0.3 |
3.9¡À0.3 |
| Without braking |
4.4¡À0.3 |
4.5¡À0.3 |
| Clutch |
Single stage or
Dual stage |
| Brake |
Oil bathing ,two
disc brake |
| Gearbox |
Two-shaft,meshed
gear £¨4+1£©¡Á2 combine or Creeper can be chosen |
| Steering type |
Mechanical steering or Hydraulic
steering |
| Lifting linkage |
Rear 3-point
hitch, category 2 |
| Rated traction
force£¨N£© |
11500 |
14200 |
| Plowing depth control |
Draft and position combined,float
dominate |
| Speed
(km/h) |
Forward |
Gear
|
1st |
2nd |
3rd |
4th |
5th |
6th |
7th |
8th |
|
4¡Á(2+1)
|
2.243 |
3.293 |
5.355 |
7.031 |
10.070 |
14.793 |
24.049 |
31.576 |
|
Creeper
|
0.336 |
0.493 |
0.802 |
1.053 |
1.508 |
2.214 |
3.600 |
4.725 |
| Reverse |
Gear
|
1st |
2nd |
3rd |
4th |
|
4¡Á(2+1)
|
3.327 |
4.888 |
7.945 |
10.433 |
|
Creeper
|
0.498 |
0.732 |
1.190 |
1.562 |
| PTO |
Type |
Nonindependent or
semi-independent |
| Speed(r/min) |
Choose any two of
540,720,1000 |
