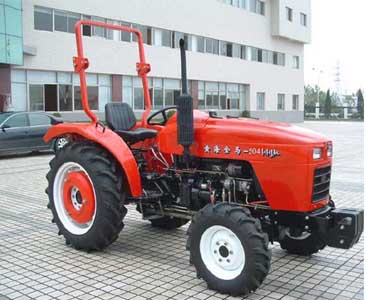

| Model |
HHJM-504 |
| Drive type
|
4WD |
Overall
Dimensions £¨mm) |
Total length |
3865 |
| Total width |
1625 |
| Total height |
2065 |
| Wheel Base£¨mm£© |
2010 |
Wheel
tread
£¨mm£© |
Front |
1300 |
| Rear |
1300-1600£¬As
usual1300 |
| Min ground
clearance(mm£© |
325 |
| Farming ground
clearance£¨mm£© |
375 |
Tractor
weight
£¨kg£© |
Structural weight |
1925 |
| Min use weight |
2116 |
| Engine |
Model |
495BT |
| Type |
4-Cylinder,vertical,water cooled,4-stroke |
| Power/Rated
speed£¨kW/r/min) |
36.8/2400 |
| Starting type |
Electic start |
| Displacement£¨L) |
2.977 |
| Tire |
Front |
8.3-20 |
| Rear |
12.4-28 |
Turning
radius
£¨m£© |
With one-side
braking |
3.7¡À0.3 |
| Without braking |
4.3¡À0.3 |
| Clutch |
Single stage or
Dual stage |
| Brake |
Oil bathing ,two
disc brake |
| Gearbox |
Two-shaft,meshed
gear 4¡Á£¨2+1£© combine or Creeper can be chosen |
| Steering type |
Mechanical steering or Hydraulic
steering |
| Lifting linkage |
Rear 3-point
hitch, category 2 |
| Rated traction
force£¨N£© |
13000 |
| Plowing depth control |
Draft and position combined,float
dominate |
| Speed
(km/h) |
Forward |
Gear
|
1st |
2nd |
3rd |
4th |
5th |
6th |
7th |
8th |
|
4¡Á(2+1)
|
2.340 |
3.436 |
5.588 |
7.336 |
10.508 |
15.436 |
25.094 |
32.948 |
|
Creeper
|
0.350 |
0.515 |
0.837 |
1.099 |
1.573 |
2.311 |
3.756 |
4.931 |
| Reverse |
Gear
|
1st |
2nd |
3rd |
4th |
|
4¡Á(2+1)
|
3.471 |
5.100 |
8.291 |
10.886 |
|
Creeper
|
0.519 |
0.764 |
1.241 |
1.630 |
| PTO |
Type |
Nonindependent or
semi-independent |
| Speed(r/min) |
Choose any two of
540,720,1000 |
