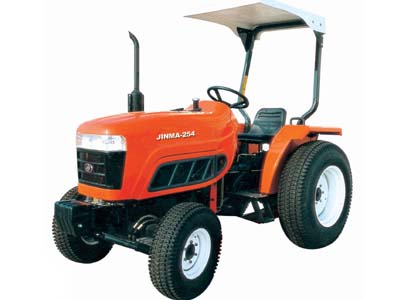

China Best Products Chinese tractor Jinma Series 18-72 HP Farming Tractor

| Model | HHJM-254 | HHJM-254 I | ||||||||
| Drive type | 4WD | |||||||||
| Overall Dimensions (mm) |
Total length | 2991 | 2740 | |||||||
| Total width | 1290 | 1290 | ||||||||
| Total height | 1438 | 1438 | ||||||||
| Wheel Base (mm) | 1560/1644 | 1625/1644 | ||||||||
| Wheel
tread (mm) |
Front | 1050 | ||||||||
| Rear | 1080-1380 | |||||||||
| Min ground clearance (mm) | 295 | |||||||||
| Tractor
weight (kg) |
Structural weight | 1020 | 1060 | |||||||
| Min use weight | 1140 | 1190 | ||||||||
| Engine | Model | XN2100 or 385 | TY2100T | |||||||
| Type | vertical, water cooled ,4-stroke | |||||||||
| Power/Rated speed (kW/r/min) | 18.40/2350 | |||||||||
| Starting type | Electric start | |||||||||
| Tire | Front | 6.00-16 | ||||||||
| Rear | 9.5-24 | |||||||||
| Turning
radius (m) |
With one-side braking | 2.8 ¡À 0.2 | 2.7 ¡À 0.2 | |||||||
| Without braking | 3.0 ¡À 0.2 | 3.0 ¡À 0.2 | ||||||||
| Clutch | Dual stage | Single stage | ||||||||
| Brake | Disc brake | |||||||||
| Gearbox | Spur gear (3+1)x2 compound or Creeper can be chosen | |||||||||
| Steering type | Mechanical steering or Hydraulic steering | |||||||||
| Lifting linkage | Rear 3-point hitch, category 1 | |||||||||
| Rated traction force(N) | 5980 | |||||||||
| Speed (km/h) |
Forward |
Gear | 1st | 2nd | 3rd | 4th | 5th | 6th | ||
| (3+1)x2 | 1.73 | 3.42 | 5.70 | 7.99 | 15.79 | 26.35 | ||||
| Creeper | 0.32 | 0.64 | 1.06 | 1.40 | 2.94 | 4.91 | ||||
|
Reverse |
Gear | 1st | 2nd | |||||||
| (3+1)x2 | 1.37 | 6.34 | ||||||||
| Creeper | 0.26 | 1.18 | ||||||||
| PTO | Type | Nonindependent or semi-independent | ||||||||
| Speed(r/min) | 540, 720 dual speed (540,1000 or 540, 720) can be chosen | |||||||||
