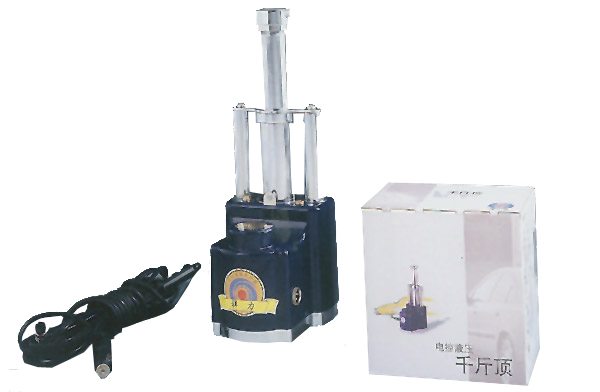

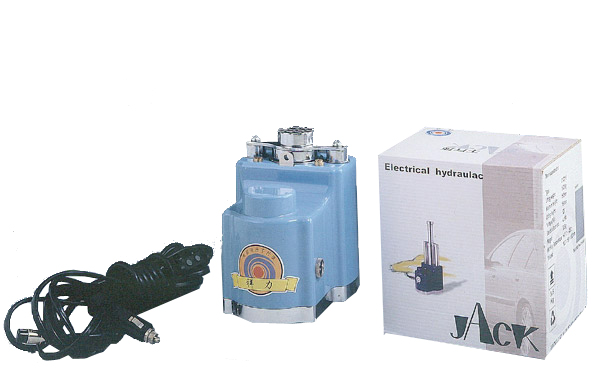

1.6T/3520lbs Portable electric Hydraulic Auto Jack

easy, one button lift your car

compact,  4.88" x 5.91" x 6.5"

light weight, less than 10 lbs

fast, lift your car in less than one minute

neat, keep your hands clean

perfect,  for women, teens and elders

Take the hassle away from changing a flat tire, lift your vehicle at the touch of a button! Electric jack lifts up to 3520 lbs in seconds ... no more digging through the trunk and trouble with an old-fashioned hand jack! Next time, simply position it in the right place under your car, plug it into your vehicle's 12V DC socket and press a button. Perfect for women, teens, and elders! Heavy duty design lifts up to 1.6 ton for use with most vehicle.

wholesale US$59 or

CAD$69

Minimum order 120 pcs, 3400 pcs/20ft container

US$43/unit FOB Shenzhen

Lead time 45 days

Retail US$120

ship to Canada, USA for flat rate US$20 by TNT Economy, ask us for other countries.

INTRODUCTION:

DYQ serial electric hydraulic jack (hereinafter called the product or the jack) is a new generation auto lifting device patented as the latest development with novel design, nice look, easy operation, reliable safety and high efficiency.

SPECIFICATIONS:

Model: DYQA-1.6

Lifting Capacity:

1600kg/3520lbs

Minimum Highss:

165mm/6.5inch

Maximum Highs:

345mm/13.6inch

Weight:

4.5kg/9.9lbs

Voltage:

12V

Maximum Current in Use:

15A

Air Temperature in Use:

between 45C and -25C

Size:

124x150x165mm/4.88 x 5.91 x 6.5 inch

CHARACTERISTICS AND ADVANTAGES:

The product is characterized as small size, light weight, nice look, high durability, easy operation and reliable safety. it is unique in (a) press-button to operate  (b) lifting up the vehicle in about one minute  (c) lifting the vehicle as high as 345mm  (d) maximum current in use being 15A

CAUTION:

1. The right model in the series must be used to a vehicle according to its size and weight, and over-weight lifting is strictly prohibited.

2. Non-professional personnel are forbidden to disassemble the product or take any part off the product.

3. Required voltage must be used.

4. The product must be handled with care.

5. The vehicle must be securely supported after it is lifted up before anybody goes underneath.

6. The jack must be placed right under the area of the vehicle which is designed to come into contact with the jack in use.

7. The jack must not be used upside down, and it must not be used on a slope of over 10 degrees.

8. Before the jack is used on a slope, solid objects must be applied to the wheels of the vehicle as stoppers to prevent the wheels from moving.

9. The jack should be used on a flat and smooth ground, and if the ground is soft a hardwood board should be placed underneath the jack.

10. The air release outlet must not be blocked where air is discharged when the jack comes down.

11. In case only one of the cylinders rises when used, release the jack to its starting position and restart it.

12. The product contains SEA-20 thickened hydraulic liquid which is life time self-sufficient, and any other hydraulic liquid is not allowed.

13. The product is not water or fire proof, and must not be used under water or with exposure to fire risk.

DYQ serial electric hydraulic jack was awarded gold prize in manufacture at 1995 Pittsburgh International New Products Exhibition, and was granted the state patent in china. It is currently applying for German GS and Euro CE certificates. The product is manufactured under strict quality inspection in compliance with quality and safety standards in the industry, and it is insured by CPIC. The product has been enjoying a rapidly increasing market demand with its best quality, exquisite design and easy operation, making itself one of the first-choice indispensable tools for auto owners.
　







中文

产品介绍:

>

>DYQ系列电控液压千斤顶是新一代的汽车起重工具，是新研制的专利产品，其设计新颖、美观大方、操作简便、安全可靠、省时省力。

>

>

>技术标准：

>        型号：DYQA-1.6

>        载重重量：1600kg

>        最低高度：165mm

>        最高高度：345mm

>        重量：4.5kg

>        电压（直流）：12V

>        电流：≤15A

>        适用温度：+45℃ ～ -25℃

>        体积：（L×W×H）124×150×165（mm）

>

>    (一) 产品设计特点：

>        体积小

>        重量轻

>        外型美观

>        经久耐用

>        操作简便

>        安全可靠

>

>    （二）产品设计优势：

>        只需按动按扭

>        1分钟左右即可将车顶起

>        升起高度最高325mm

>        负载电流小于15A

>

>

>注意事项:

>1: 根据车型选用该系列中符合要求的千斤顶,严禁超重使用;

>2: 非专业人员严禁拆卸该产品任何部件;

>3: 电压应与产品标注的电压相符;

>4: 本产品应轻放,严禁摔碰;

>5: 当车顶起后,未加支撑安全架时严禁进入车底,以防发生意外;

>6: 选择起重点,将千斤顶置于起重点中央以防发生意外;

>7: 本产品不能倒置使用,使用倾斜度不得超过10°;

>8: 当在倾斜路面使用本产品时,须用硬物将四轮固定, 然后启动

>9: 使用本产品地面应平整,不得有尖物或硬物,如地面松软下方应垫硬木;

>10: 严禁堵塞排气孔,千斤顶回落时排气孔排气属正常现象;

>11:

>使用本产品过程中出现单缸升起现象时,只要将千斤顶回落到底,重新启动,即可排除;

>12:

>本产品使用”海牌20号稠化液压油”,在使用过程中不需加油,严禁添加其他牌号液压油;

>13: 本产品为非防暴,防水产品,严禁在易燃易爆环境及水下使用.

>

>(

>公司已成功设计开发出DYQ系列电控液压千斤顶，产品曾荣获1995年匹兹堡国际新产品展制造类金奖，并获得国家专利，目前正在申请德国GS和欧盟CE认证。产品在生产过程中经过严格的质量检测，质量安全符合企业标准，并由中国人民保险公司承保。一流的质量，精巧的设计，简单的操作让该产品迅速走入市场，成为有车族的首选必备工具之一。)
