China Best Products Gasoline/Diesel/Wind generator
Small horsepower EPA/CE generators/water pump up to 13hp.
| OVERVIEW |
|

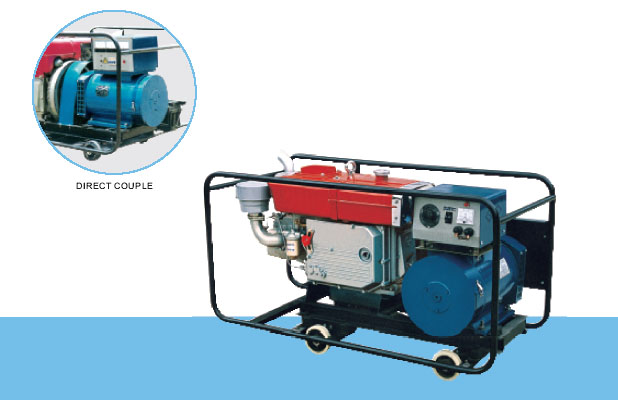

SF series of ordinary diesel generating sets have been provided
with high quality water-cooled (condensor) diesel engine. those
engine can work well in different situation.
2. The structure of generating sets: the engine has been coupled with alternator though v-belt or coupled directly with alternator. both of them have been installed on the basis of anti-shock pad, the gen-sets has been fixed on the frame of steel pipes which has four wheels. 3.Other feathers: easy to operate: it's easy to operate and maintain control panel reliable voltage regulator, no-fuse circuit breaker over-current protection, wheels type design, double-shaft balance design, electric starting. |
| FEATURE |
|
1.Voltage steady-state regulation¡À5%
Transient-state regulation -15~20% steady time 5s Frequency steady-state regulation +5% 2.The noise of gen-sets should be no more than 85dB(a) The fuel consumption is no more than 2.5kg/kw.h. |
¡¡
| Model | 1SF | 1.5SF | 2SF23 | 3SF29-2 | 4SF-1 | 5SF39 | 7.5SF33 | 8SF21 | 10SF34-5 | 10SF34-6 | 12SF60 | 15SF29 | 20SF34 | |
| Diesel engine |
Model | 165F | 165F | 170 | R175 | J180N | S195GN | S1100ND | S1100ND | ZH105ND | 295D | 2100D | 395D | 495D |
| Cylinder bore X stoke (mm) | 65/70 | 65/70 | 70/75 | 75/75 | 80/85 | 95/115 | 95/115 | 100/115 | 105/115 | 95/115 | 100/115 | 95/115 | 95/115 | |
| Power (KW) |
2.4 | 2.4 | 2.94 | 4.41 | 4.78 | 9 | 9 | 10.3 | 13.2 | 13.2/15.8 | 14.7/17.6 | 19.9/23.9 | 26.5/31.8 | |
| Speed (r/min) |
2600 | 2600 | 2200 | 2600 | 2600 | 2000 | 2000 | 2200 | 2200 | 1500/1800 | 1500/1800 | 1500/1800 | 1500/1800 | |
| Compression ratio | 20.5-22 | 20.5-22 | 22 | 21-22 | 21-22 | 20 | 20 | 18-20 | 17 | 19-20 | 19-20 | 20 | 18-20 | |
| Starting | Manual | Manual or electric |
Electric |
|||||||||||
| Generator | Model | ST-1 | ST-1.5 | ST-2 | ST-3 | ST-4 | ST-5 | ST-7.5 | ST-8 | ST-10 | ST-10 | ST-12 | ST-15 | ST-20 |
| Power (KW) |
1 | 1.5 | 2 | 3 | 4 | 5 | 7.5 | 8 | 10 | 10 | 12 | 15 | 20 | |
| Voltage (V) |
230/115 |
|||||||||||||
| Current (A) |
4.35/ 8.7 |
6.5/ 13 |
8.7/ 17.4 |
13/ 26 |
17.4/ 34.8 |
21.8/ 43.5 |
32.6/ 65.2 |
34.8/ 69.5 |
43.5/ 87 |
43.5/ 87 |
52.2/ 104.4 |
65.2/ 130.4 |
87/ 174 |
|
| Frequency (Hz) |
50/60 | |||||||||||||
| Speed (r/min) |
1500/1800 | |||||||||||||
| Power
factor (Cos Ø) |
1 | |||||||||||||
| Generating set |
Volume
of oil tank (L) |
4.5 (3.6) |
5 (4) |
4.5 (3.6 |
4.5 (3.6) |
5 (4) |
15.5 (12.4) |
15.5 (12.4) |
15.5 (12.4) |
15.5 (12.4) |
22.3 (17.8) |
22.3 (17.8) |
51 (41) |
51 (41) |
| Overall
dimensions (mm) |
950¡Á 430¡Á 500 |
950¡Á 430¡Á 500 |
950¡Á 470¡Á 550 |
950¡Á 470¡Á 550 |
950¡Á 500¡Á 500 |
1350¡Á 620¡Á 760 |
1350¡Á 620¡Á 760 |
1450¡Á 650¡Á 900 |
1450¡Á 650¡Á 900 |
1260¡Á 810 ¡Á 1130 |
1260¡Á 810 ¡Á 1130 |
1550¡Á 650¡Á 1130 |
1700¡Á 650¡Á 1290 |
|
| N.W. (kg) |
78 | 78 | 145 | 150 | 210 | 280 | 310 | 330 | 380 | 460 | 460 | 630 | 650 | |
|
TYRE
|
GFS-2
|
GFS-3
|
GFS-5
|
GFS-8
|
GFS-10
|
GFS-12
|
GFS-15
|
GFS-20
|
GFS-24
|
GFS-30
|
GFS-40
|
||
|
RATED OUTPUT(kW)
|
2
|
3
|
5
|
8
|
10
|
12
|
15
|
20
|
24
|
30
|
40
|
||
|
RATED VOLTAGE(V)
|
230/115
|
230/115
|
400/230
|
400/230
|
400/230
|
400/230
|
400/230
|
400/230
|
400/230
|
400/230
|
400/230
|
||
|
RATED CURRENT(A)
|
52/104
|
65/130
|
36.1
|
52/104 |
65/130
|
36.1
|
43.3
|
54.1
|
72.1
|
90.2
|
135.3
|
||
|
ENGINE
|
TYPE
|
YN170FG
|
YN178FG
|
YN186FG
|
DLH1110
|
295AD
|
295AD
|
395AD
|
495AD
|
495AD
|
495AD
|
R4100ZD2
|
|
|
12H POWER(KW)
|
4
|
5
|
15
|
15
|
15
|
15
|
22
|
28.5
|
28.5
|
36
|
55
|
||
|
FUEL CONSUMPTION(g/kw.h)
|
245
|
245
|
245
|
245
|
245
|
245
|
245
|
235
|
233
|
233
|
233
|
||
|
STARTING MODEL
|
ELECTRIC STARTING
(DC12/24V)
|
||||||||||||
|
ALTERNATOR
|
TYPE
|
ST-2
|
ST-3
|
STC-5
|
STC-8
|
STC-10
|
STC-12
|
STC-15
|
STC-20
|
STC-24
|
STC-30
|
STC-40
|
|
|
RATED POWER(KW)
|
2
|
3
|
5
|
8
|
10
|
12
|
15
|
20
|
24
|
30
|
40
|
||
|
EXCITATION MODE
|
TRIPLE HARMONIC EXCITING
|
||||||||||||
|
INSULATION CLASS
|
B or F
|
||||||||||||
|
OUTSIDE DIMENSION(mm)
|
L
|
755
|
755
|
755
|
1500
|
1500
|
1700
|
2000
|
2350
|
2350
|
2520
|
2860
|
|
|
W
|
588
|
588
|
588
|
700
|
700
|
800
|
900
|
950
|
950
|
950
|
1330
|
||
|
H
|
660
|
660
|
660
|
900
|
900
|
1000
|
1040
|
1165
|
1165
|
1190
|
1560
|
||
|
NET WEIGHT(kg)
|
|||||||||||||
|
Note: 1)Please come down on information of low-noise
diesel generating sets series others.
¡¡¡¡¡¡2)The diesel engine can be chosen ¡¡¡¡¡¡3)The Alternator and voltage can be changed.(Stamford or Yanna) ¡¡¡¡¡¡4)Other special requirement, please contact us. |
|||||||||||||
| OVERVIEW |
|
1. All diesel generating sets include diesel engine, alternator
and control box.
2. Starting method of gensets 1)Key start. 2)Automatic starting wholly when electric supply has been stopped. the gensets can start automatically in 3-28 seconds (time can be adjustable)between electric supply and gensets need 6-8 seconds. it will spend 12 seconds to accept load when electric supply resumed, genset will maintain 20-230 seconds, then closes down automatically. 3. Control panel system: voltmeter, hertzmeter, ampemeter, voltmeter of battery, gauge of water temp, gauge of oil pressure. control section: start/stop, key type switch, inductive type self-protection switch, and indicator lamp. |
| FEATURE |
|
1. Automatic starting control panel this panel includes manual
control panel, time relay, indicator testing button, alarm
resetting button, over speed inductive switch, alarm buzzer of
low voltage of battery, starting malfunction alarm.
2. Automatic changing-over panel. when the electric supply has been stopped, the gensets will start automatically. when the electric supply has resumed, the gensets will halt automatically. 3. Automatic diesel generating sets with intelligence performance and principle. 4. Booster,battery charger,alarm buzzer, attached |
¡¡
|
Model of generating set
|
24GF56
|
30GF47
|
40GF64
|
50GF114
|
64GF41
|
75GF10B
|
90GF69
|
100GF14
|
120GF115
|
C500GF
|
C600GF
|
C800GF
|
C1000GF
|
|
|
Model of diesel engine
|
495D
|
495ZD
|
4120S1D1
|
¡Á4125D1
/4130D |
4135AD
/6130D4 |
A6135D/
6130D4 |
6135AD/
6130D7 |
6135ZD/
6130D7 |
6135AZD/
6130ZD |
CUMMINS KT38-G
|
CUMMINS KT38-G2
|
CUMMINS KT38-G5
|
CUMMINS KTA50-G3
|
|
|
Type of diesel engine
|
Vertical four-stroke
|
Vertical four-stroke direct injection
|
||||||||||||
|
12hr rated output(kW)
|
26.5
|
36.8
|
48
|
59/70
|
73.6/92
|
88.3/92
|
110.3
/110 |
139.7/
110 |
161.8/
147 |
615
|
731
|
970
|
1227
|
|
|
fuel, lube Model of generator)
|
Fuel
|
<258.4
|
<251.6
|
<251.6
|
<242/
|
<242/
238 |
<228.4/
238 |
<231.2/
238 |
<231.2/
238 |
<231.2/
238 |
<232
|
<219
|
<195
|
<204
|
|
Lube
|
<2.04
|
<2.04
|
<1.63
|
<2.72
|
<2.72
|
<2.72/
2.3 |
<2.72/
2.3 |
<2.72/
2.3 |
<2.72
|
¡¡
|
¡¡
|
¡¡
|
¡¡
|
|
|
Model of generator
|
STC-24/ SB-T-24
|
STC-30/ SB-T-30
|
STC-40/ SB-T-40
|
STC-50/ SB-T-50
|
TZH-64/SB-W-64
|
TZH-75/SB-W-75
|
TZH-90/
SB-W-90 |
TZH-100/
SB-W-100 |
TZH-120/
SB-W-120 |
HC5FS
|
500S22
|
500C12
|
IFC6
|
|
|
Rate power (Kw)
|
24
|
30
|
40
|
50
|
64
|
75
|
90
|
100
|
120
|
500
|
600
|
800
|
1000
|
|
|
Rated frequency
(Hz)rated speed of rotation (r/min), rated voltage (V) |
50Hz, 1500r/min, three phase four wire ,400/230V or
380/200V
|
|||||||||||||
|
Exciting
|
Harmonic
|
(Brush of brushless) Harmonic, Phase compound exciting
|
||||||||||||
|
Starting
|
electric
|
|||||||||||||
|
Adjustmet of voltage
|
Manual or auto
|
|||||||||||||
|
Circulation of cooliong water
|
Closed water cooling
|
¡¡
|
¡¡
|
¡¡
|
¡¡
|
¡¡
|
¡¡
|
¡¡
|
¡¡
|
¡¡
|
¡¡
|
¡¡
|
¡¡
|
|
|
Circulation dimensions (L¡ÁW¡ÁH)(mm)
|
1700¡Á640 ¡Á1290
|
1700¡Á750¡Á1290
|
2300¡Á880¡Á1950
|
¡¡
|
2750¡Á880¡Á2450
|
¡¡
|
2950¡Á880¡Á
2250 |
¡¡
|
2950¡Á880¡Á
2100 |
3950¡Á1300¡Á2055
|
¡¡
|
5000¡Á1900¡Á2640
|
5500¡Á1900¡Á2640
|
|
|
Weight (kg)
|
680
|
680
|
1300
|
1500
|
1600
|
1600
|
1800
|
2000
|
2500
|
7800
|
8300
|
9400
|
10800
|
|
 |
 |
 |
 |
| 10-12GF | 15-50GF | 64-160GF | 200-250GF |
|
Model of generating set |
3GF29 | 5GF39 |
7.5GF33 8GF21 |
10GF34 | 12GF60 | 15GF29 | 20GF34 | 24GF56 | 30GF47 | 40GF64 | 50GF114 | 64GF41 | 75GF108 | 90GF69 | 100GF14 | 120GF115 | |
|
Model of diesel engine |
R175N R175ND |
S195G S195GNM |
S195G S1100 |
ZH1105ND 295D |
2100D 295D |
395D 480D |
495D | 495D | 495D | 4120S1D1 |
4125D1/ 4130D |
4135AD/ 6130D4 |
A6135D/ 6130D4 |
6135AD/ 6130D7 |
6135ZD/ 6130D7 |
6135AZD/ 6130ZD |
|
|
Type of diesel engine |
Horizontal four-stoke |
Vertical four-stroke |
Vertical four-stroke Direct injection |
||||||||||||||
|
12hr rated rated output (kW) |
4.41 | 9/10 | 9/10.3 | 12.1/13.2 | 14.7/13.2 | 19.9/19 | 26.5 | 36.8 | 48 | 59/70 | 73.6/92 | 88.3/92 | 110.3/110 | 139.7/110 | 161.8/147 | ||
|
Fuel, lube, consumption of 12hr rated output (g/kW. hr) |
Fuel | <280.2 | <258.4 | <250.3 |
<246.2/ 265.2 |
<263.8 |
<251.3/ 258.4 |
<258.4 | <251.6 | <242/238 |
<228.4/ 238 |
<231.2/238 |
<231/ 238 |
||||
| Lube | <4.76 | <2.31 | <2.04 | <2.04/1.63 | <2.04 | <1.63 | <2.72 | <2.72/2.3 | <2.72 | ||||||||
|
Model of generator |
STC-3 | STC-5 |
STC-7.5/ STC-8 |
STC-10 | STC-12 | STC-15 | STC-20 |
STC-24/ SB-T-24 |
STC-30/ SB-T-30 |
STC-40/ SB-T-40 |
STC-50/ SB-T-50 |
TZH-64/ SB-W-64 |
TZH-75/ SB-W-75 |
TZH-90/ SB-W-90 |
TZH-100/ SB-W-100 |
TZH-120/ SB-W-120 |
|
|
Rated power (kW) |
3 | 5 | 7.5-8 | 10 | 12 | 15 | 20 | 24 | 30 | 40 | 50 | 64 | 75 | 90 | 100 | 120 | |
|
Rated frequency (Hz) Rated speed if rotation (r/min) Rated voltage (V) |
50Hz |
50Hz |
|||||||||||||||
| Exciting |
Harmonic |
(Brush of brushless) Harmonic. re-exciting | |||||||||||||||
| Starting | Manual of electric | Electric | |||||||||||||||
|
Adjustment of voltage |
Manual of auto | ||||||||||||||||
|
Circulation of cooling water |
Condenser/evaporative | Close water cooling | |||||||||||||||
|
Overall dimensions (LXWXH) |
950¨G 470¨G 550 |
1350¨G620¨G760 1450¨G650X900 |
1260¨G 610¨G 1130 |
1550¨G 650¨G 1920 |
1700¨G 640¨G 1290 |
1700¨G 750¨G 1290 |
2300X800X1950 | 2750X880X2450 | 2950X880X2250 |
2950¨G 880¨G 2100 |
|||||||
|
Weight (kg) |
150 | 280 | 310 | 380 | 460 | 630 | 650 | 680 | 680 | 1300 | 1500 | 1600 | 1600 | 1800 | 2000 | 2500 | |
¡¡
US 2.5% 85016100.--AC generators (alternators) of an output not exceeding 75 kVA--01/01/2002
