R series diesel/gas 1.0 1.8 T

Model

Powershifter

CPCD10N

CPCD15N

CPCD18N

CPQD10N

CPQD15N

CPQD18N

Manual

CPC10N

CPC15N

CPC18N

CPQ10N

CPQ15N

CPQ18N

RW9

RW8

RG26

RW9

RW8

RG26

RW9

RW8

RG26

RW20

RW20-Y

RW20

RW20-Y

Power Type

Diesel

Gasoline

LPG

Gasoline

LPG

Rated capacity

1000

1500

1750

1000

1500

1750

Load center

500

Lift height

3000

Engine

Manufacture

ISUZU

CHINA

ISUZU

CHINA

ISUZU

CHINA

NISSAN

Transmission

Manufacture

CHINA

R series gas/LPG 2.0 3.5 T

Model		CPQD20N/CPQD25N/CPQD30N/CPQD35N				CPQD20N/CPQD25N		CPQD30N/CPQD35N
		RW11	RW11-Y	RW11A	RW11A-Y	RW11	RW11-Y	RW11	RW11-Y
Power Type		Gasoline	LPG	Gasoline	LPG	Gasoline	LPG	Gasoline	LPG
Rated capacity		2000/2500/3000/3500				2000/2500		3000/3500
Load center		500				500		500
Lift height		3000				3000		3000
Engine	Manufacture	NISSAN		NISSAN		NISSAN		NISSAN
Transmission	Manufacture	CHINA		NISSAN		CHINA		CHINA

R series diesel 2.0 3.0 3.5 T

Model

CPCD20N/CPCD25N/CPCD30N/CPCD35N

CPC20N/CPC25N/CPC30N/CPC35N

RW8

RW9

RW13

RG6

RW8B

RW9B

RW15A

RW8

RW9

RW13

RG6

Power Type

Diesel

Rated capacity

2000/2500/3000/3500

Load center

500

Lift height

3000

Engine

Manufacture

ISUZU

CHINA

ISUZU

NISSAN

ISUZU

CHINA

Transmission

Manufacture

CHINA

Okamura

NISSAN

CHINA

H Series Internal Combustion

High-rigid and wide view mast
The mast offers a greater degree of rigidity and resistance against torsion and bending. The wide view mast offers operator a clearly view when workin.

Instrument and control rod
Integrated panel, convenient control rod, tube in good order.

New quality suspension seat
This new seat offers greater comfort.

Power steering with horizontal steering

Super air intake system
A new design brings fresh and clean air through the intake system.

Open step
The open step design provides the
operator easy entry and exit.

1,000-3,500kg Diesel

Hydraulic transmission

General				Dimensions						Engine
Model	Power type	Rated capacity	Load center	Lift height	Overall dimensions				Turning radius (outside)	Model	Manu-facture	Rated output/r.p.m
Model	Power type	Rated capacity	Load center	Lift height	Length to face to fork	Overall width	Mast lowered height	Overhead guard height	Turning radius (outside)	Model	Manu-facture	Rated output/r.p.m
		kg	mm	mm	mm	mm	mm	mm	mm			kw
CPCD10HW9	Diesel	1000	500	3000	2160	1075	1995	2050	1890	C240PKJ	ISUZU	35/2500
CPCD15HW9	Diesel	1500	500	3000	2225	1075	1995	2050	1965	C240PKJ	ISUZU	35/2500
CPCD20HBW9	Diesel	2000	500	3000	2515	1150	2030	2070	2190	C240PKJ	ISUZU	35/2500
CPCD25HBW9	Diesel	2500	500	3000	2580	1150	2030	2070	2250	C240PKJ	ISUZU	35/2500
CPCD30HBW9	Diesel	3000	500	3000	2690	1240	2100	2100	2350	C240PKJ	ISUZU	35/2500
CPCD30HBW13	Diesel	3000	500	3000	2690	1240	2100	2100	2350	4JG2	ISUZU	44.9/2450
CPCD35HBW13	Diesel	3500	500	3000	2790	1240	2250	2100	2450	4JG2	ISUZU	44.9/2450
CPCD20HW15A	Diesel	2000	500	3000	2515	1150	2030	2070	2190	TD27	NISSAN	44/2500
CPCD25HW15A	Diesel	2500	500	3000	2580	1150	2030	2070	2250	TD27	NISSAN	44/2500
CPCD30HW15A	Diesel	3000	500	3000	2690	1240	2100	2100	2350	TD27	NISSAN	44/2500
CPCD10HG26	Diesel	1000	500	3000	2160	1075	1995	2050	1890	485	CHINA	30/2600
CPCD15HG26	Diesel	1500	500	3000	2225	1075	1995	2050	1965	485	CHINA	30/2600
CPCD20HB	Diesel	2000	500	3000	2515	1150	2030	2070	2190	490(D1)	CHINA	37/2650
CPCD25HB	Diesel	2500	500	3000	2580	1150	2030	2070	2250	490(D1)	CHINA	37/2650
CPCD30HB	Diesel	3000	500	3000	2690	1240	2100	2100	2350	490(D1)	CHINA	37/2650

1,000-3,500kg Diesel

Mechanical transmission

Mechanical tra ssion
　

General				Dimensions						Engine
Model	Power type	Rated capacity	Load centeer	Lift height	Overall dimensions				Trming radius (outside)	Model	Manu-facture	Rated output/r.p.m
Model	Power type	Rated capacity	Load centeer	Lift height	Length to face to fork	Overall width	Mast lowered height	Overhead guard height	Trming radius (outside)	Model	Manu-facture	Rated output/r.p.m
		kg	mm	mm	mm	mm	mm	mm	mm			kw
CPC10HW9	Diesel	1000	500	3000	2160	1075	1995	2050	1890	C240PKJ	ISUZU	35/2500
CPC15HW9	Diesel	1500	500	3000	2225	1075	1995	2050	1965	C240PKJ	ISUZU	35/2500
CPC20HBW9	Diesel	2000	500	3000	2515	1150	2030	2070	2190	C240PKJ	ISUZU	35/2500
CPC25HBW9	Diesel	2500	500	3000	2580	1150	2030	2070	2250	C240PKJ	ISUZU	35/2500
CPC30HBW9	Diesel	3000	500	3000	2690	1240	2100	2100	2350	C240PKJ	ISUZU	35/2500
CPC35HBW13	Diesel	3500	500	3000	2790	1240	2250	2100	2450	4JG2	ISUZU	44.9/2450
CPCD10HG26	Diesel	1000	500	3000	2160	1075	1995	2050	1890	485	CHINA	30/2600
CPCD15HG26	Diesel	1500	500	3000	2225	1075	1995	2050	1965	485	CHINA	30/2600
CPC20HB	Diesel	2000	500	3000	2515	1150	2030	2070	2190	490(D1)	CHINA	37/2650
CPC25HB	Diesel	2500	500	3000	2580	1150	2030	2070	2250	490(D1)	CHINA	37/2650
CPC30HB	Diesel	3000	500	3000	2690	1240	2100	2100	2350	490(D1)	CHINA	37/2650

H Series Internal Combustion

Hydrostatic Power Steering System
H &F05 forklifts are equipped with a hydrostatic power steering system that works to reduxe steering effort and lessen fatigue over long hours of operation. Completely hydraulic in design with no mechanical linkages, the smooth operation of this system helps to eliminate kickback and oversteer characteristics.

Easier Maintenanc And Servicing
Along with the kind of engineering that promises unsurpassed performance and productility in all applications, F05 forklifts are designed with many features that facilitate maintenance and servicing. For example, the wide-opening top panel and radiator cover aare equipped with gas stays and convenient hand grips that enable quick access to the engine compartment.

Non-slip floor and Step
The wide-open steo is not only convenient tu use but safer thanks to anti-slio mats. To further improve safefu in demanding work conditions, the floor board is constructed os embossed steel to reduce of possibility of slipping.

1,000-3,500kg Diesel

Hydraulic transmission

General				Dimensions						Engine
Model	Power type	Rated capacity	Load center	Lift height	Overall dimensions				Turning radius (outside)	Model	Manu-facture	Rated output/r.p.m
Model	Power type	Rated capacity	Load center	Lift height	Length to face to fork	Overall width	Mast lowered height	Overhead guard height	Turning radius (outside)	Model	Manu-facture	Rated output/r.p.m
		kg	mm	mm	mm	mm	mm	mm	mm			kw
CPCD50H	Diesel	5000	600	3000	3485	1990	2500	2370	3160	6102G1-4b	CHINA	59/2200
CPCD60H	Diesel	6000	600	3000	3545	1990	2500	2370	3200	6102G1-4b	CHINA	59/2200
CPCD70H	Diesel	7000	600	3000	3645	1990	2500	2370	3280	6102G1-4b	CHINA	59/2200
CPCD50HA	Diesel	5000	600	3000	3485	1990	2500	2370	3160	LR4105G10	CHINA	59/2300
CPCD60HA	Diesel	6000	600	3000	3545	1990	2500	2370	3200	LR4105G10	CHINA	59/2300
CPCD70HA	Diesel	7000	600	3000	3645	1990	2500	2370	3280	LR4105G10	CHINA	59/2300

General				Dimensions						Engine
Model	Power type	Rated capacity	Load center	Lift height	Overall dimensions				Turning radius (outside)	Model	Manu-facture	Rated output/r.p.m
Model	Power type	Rated capacity	Load center	Lift height	Length to face to fork	Overall width	Mast lowered height	Overhead guard height	Turning radius (outside)	Model	Manu-facture	Rated output/r.p.m
		kg	mm	mm	mm	mm	mm	mm	mm			kw
F05W50	Diesel	5000	600	3000	3485	1990	2500	2370	3160	TD42	NISSAN	62/2300
F05W60	Diesel	6000	600	3000	3545	1990	2500	2370	3200	TD42	NISSAN	62/2300
F05W70	Diesel	7000	600	3000	3645	1990	2500	2370	3280	TD42	NISSAN	62/2300
F05V50	Diesel	5000	600	3000	3485	1990	2500	2370	3160	FE6	NISSAN	88/2100
F05V60	Diesel	6000	600	3000	3545	1990	2500	2370	3200	FE6	NISSAN	88/2100
F05V70	Diesel	7000	600	3000	3645	1990	2500	2370	3280	FE6	NISSAN	88/2100

1,000-3,500kg Gasoline

Hydraulic transmission

General				Dimensions						Engine
Model	Power type	Rated capacity	Load center	Lift height	Overall dimensions				Turning radius (outside)	Model	Manu-facture	Rated output/r.p.m
Model	Power type	Rated capacity	Load center	Lift height	Length to face to fork	Overall width	Mast lowered height	Overhead guard height	Turning radius (outside)	Model	Manu-facture	Rated output/r.p.m
		kg	mm	mm	mm	mm	mm	mm	mm			kw
CPQD10HW20	Gasoline	1000	500	3000	2160	1075	1995	2050	1890	H20-II	NISSAN	32.3/2300
CPQD15HW20	Gasoline	1500	500	3000	2225	1075	1995	2050	1995	H20-II	NISSAN	32.3/2300
CPQD20HBW11	Gasoline	2000	500	3000	2515	1150	2030	2070	2190	H25	NISSAN	41.2/2600
CPQD25HBW11	Gasoline	2500	500	3000	2580	1150	2030	2070	2250	H25	NISSAN	41.2/2600
CPQD30HBW11	Gasoline	3000	500	3000	2690	1240	2100	2100	2350	H25	NISSAN	41.2/2600
CPQD10HW20A	Gasoline	1000	500	3000	2160	1075	1995	3935	2050	H20-II	NISSAN	32.3/2300
CPQD15HW20A	Gasoline	1500	500	3000	2225	1075	1995	3935	2050	H20-II	NISSAN	32.3/2300
CPQD20HW11A	Gasoline	2000	500	3000	2515	1150	2030	2070	2190	H25	NISSAN	36.4/2200
CPQD25HW11A	Gasoline	2500	500	3000	2580	1150	2030	2070	2250	H25	NISSAN	36.4/2200
CPQD30HW11A	Gasoline	3000	500	3000	2690	1240	2100	2100	2350	H25	NISSAN	36.4/2200

1,000-3,500kg LPG

Mechanical transmission

General				Dimensions						Engine
Model	Power type	Rated capacity	Load center	Lift height	Overall dimensions				Turning radius (outside)	Model	Manu-facture	Rated output/r.p.m
Model	Power type	Rated capacity	Load center	Lift height	Length to face to fork	Overall width	Mast lowered height	Overhead guard height	Turning radius (outside)	Model	Manu-facture	Rated output/r.p.m
		kg	mm	mm	mm	mm	mm	mm	mm			kw
CPQ10HW20	Gasoline	1000	500	3000	2160	1075	1995	2050	1890	H20-II	NISSAN	32.3/2300
CPQ15HW20	Gasoline	1500	500	3000	2225	1075	1995	2050	1995	H20-II	NISSAN	32.3/2300
CPQ20HBW11	Gasoline	2000	500	3000	2515	1150	2030	2070	2190	H25	NISSAN	41.2/2600
CPQ25HBW11	Gasoline	2500	500	3000	2580	1150	2030	2070	2250	H25	NISSAN	41.2/2600
CPQ30HBW11	Gasoline	3000	500	3000	2690	1240	2100	2100	2350	H25	NISSAN	41.2/2600

1,000-3,500kg LPG

Hydraulic transmission

General				Dimensions						Engine
Model	Power type	Rated capacity	Load centeer	Lift height	Overall dimensions				Trming radius (outside)	Model	Manu-facture	Rated output/r.p.m
Model	Power type	Rated capacity	Load centeer	Lift height	Length to face to fork	Overall width	Mast lowered height	Overhead guard height	Trming radius (outside)	Model	Manu-facture	Rated output/r.p.m
		kg	mm	mm	mm	mm	mm	mm	mm			kw
CPYD10HW20	LPG/Gasoline	1000	500	3000	2160	1075	1995	2050	1890	H20-II	NISSAN	32.3/2300
CPYD15HW20	LPG/Gasoline	1500	500	3000	2225	1075	1995	2050	1995	H20-II	NISSAN	32.3/2300
CPYD20HBW11	LPG/Gasoline	2000	500	3000	2515	1150	2030	2070	2190	H25	NISSAN	41.2/2600
CPYD25HBW11	LPG/Gasoline	2500	500	3000	2580	1150	2030	2070	2250	H25	NISSAN	41.2/2600
CPYD30HBW11	LPG/Gasoline	3000	500	3000	2690	1240	2100	2100	2350	H25	NISSAN	41.2/2600
CPYD10HW20A	LPG/Gasoline	1000	500	3000	2160	1075	1995	3935	2050	H20-II	NISSAN	32.3/2300
CPYD15HW20A	LPG/Gasoline	1500	500	3000	2225	1075	1995	3935	2050	H20-II	NISSAN	32.3/2300
CPYD20HW11A	LPG/Gasoline	2000	500	3000	2515	1150	2030	2070	2190	H25	NISSAN	36.4/2200
CPYD25HW11A	LPG/Gasoline	2500	500	3000	2580	1150	2030	2070	2250	H25	NISSAN	36.4/2200
CPYD30HW11A	LPG/Gasoline	3000	500	3000	2690	1240	2100	2100	2350	H25	NISSAN	36.4/2200

1,000-3,500kg LPG

Mechanical transmission

General				Dimensions						Engine
Model	Power type	Rated capacity	Load centeer	Lift height	Overall dimensions				Trming radius (outside)	Model	Manu-facture	Rated output/r.p.m
Model	Power type	Rated capacity	Load centeer	Lift height	Length to face to fork	Overall width	Mast lowered height	Overhead guard height	Trming radius (outside)	Model	Manu-facture	Rated output/r.p.m
		kg	mm	mm	mm	mm	mm	mm	mm			kw
CPY10HW20	LPG/Gasoline	1000	500	3000	2160	1075	1995	2050	1890	H20-II	NISSAN	32.3/2300
CPY15HW20	LPG/Gasoline	1500	500	3000	2225	1075	1995	2050	1995	H20-II	NISSAN	32.3/2300
CPY20HBW11	LPG/Gasoline	2000	500	3000	2515	1150	2030	2070	2190	H25	NISSAN	41.2/2600
CPY25HBW11	LPG/Gasoline	2500	500	3000	2580	1150	2030	2070	2250	H25	NISSAN	41.2/2600
CPY30HBW11	LPG/Gasoline	3000	500	3000	2690	1240	2100	2100	2350	H25	NISSAN	41.2/2600

echanical tra ssion
　

H Series Internal Combustion

As a result of ergonomically designed and located controls, everything you need to see, reach and grasp are precisely where the operator will expect them.

The hood is assisted by gas struts to open up a full 90 degress providing excellent access to all battery cells

Owing to power steering motor and pump fixed in the box, it brings with low noise, excellent waterproofing,excellent dustproofing and easy service.

Owing to electronic controller fixed in the box, it brings with low noise, excellent waterproofing,excellent dustproofing and easy service.

Owing to loading handing motor and pump fixed in the box, it brings with low noise, excellent waterproofing,excellent dustproofing and easy service.

1,000-3,000kg electric forklift specification

General				Dimensions						Battery			Engine
Model	Power type	Rated capacity	Load center	Lift height	Overall dimensions				Turning radius (outside)	Model	Voltage/ Capacity (5Hr)	Rated output/ r.p.m	Drive	Load handing	Power steering
Model	Power type	Rated capacity	Load center	Lift height	Length to face to fork	Overall width	Mast lowered height	Overhead guard height	Turning radius (outside)	Model	Voltage/ Capacity (5Hr)	Rated output/ r.p.m	Rated output/r.p.m
		kg	mm	mm	mm	mm	mm	mm	mm		V/AH	kw	kw	kw	kw
CPD10H	Battery	1000	500	3000	2895	1075	1995	2110	1760	D-400BS	48/400	690	5/1480	6.3/2000	0.55/2000
CPD10HA	Battery	1000	500	3000	2895	1075	1995	2110	1760	D-400BS	48/400	690	5/1480	6.3/2000	0.55/2000
CPD15H	Battery	1500	500	3000	2895	1075	1995	2140	1760	D-450s	48/450	800	5/1480	6.3/2000	0.75/1650
CPD15HA	Battery	1500	500	3000	2895	1075	1995	2140	1760	D-450s	48/450	800	5/1480	6.3/2000	0.75/1650
CPD20H	Battery	2000	500	3000	2290	1150	2075	2140	2060	D-450	48/450	900	6.3/1200	7.5/2000	0.75/1650
CPD20HA	Battery	2000	500	3000	2290	1150	2075	2140	2060	D-450	48/450	900	6.3/1200	7.5/2000	0.75/1650
CPD25H	Battery	2500	500	3000	2325	1150	2075	2100	2100	D-580G	48/580	1030	6.3/1200	7.5/2000	0.75/1650
CPD25HA	Battery	2500	500	3000	2325	1150	2075	2100	2100	D-580G	48/580	1030	6.3/1200	7.5/2000	0.75/1650
CPD30H	Battery	3000	500	3000	2480	1240	2100	2240	2240	D-480R	80/480	1390	10/1200	10/2000	1.35/1500
CPD30HA	Battery	3000	500	3000	2480	1240	2100	2240	2240	D-480R	80/480	1390	10/1200	10/2000	1.35/1500

J series electric

Model			CPD10J	CPD15J	CPD18J	CPD20J	CPD25J	CPD30J	CPD10-JD1	CPD15-JD1	CPD18-JD1	CPD20-JD1	CPD25-JD1	CPD30-JD1
Power type			Batt-ery	Batt-ery	Battery	Battery	Battery	Battery	Battery	Battery	Battery	Battery	Battery	Battery
Rated capacity		kg	1000	1500	1800	2000	2500	3000	1000	1500	1800	2000	2500	3000
Load center		mm	500	500	500	500	500	500	500	500	500	500	500	500
Lift height		mm	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
Cont-roler	Manufa-cture		Curtis						Inmotion

J series electric

Model			CPDS-13J	CPDS-15J	CPDS-16J	CPDS-18J	CPDS-20J	CPDS13-JD1	CPDS15-JD1	CPDS16-JD1	CPDS18-JD1	CPDS20-JD1
Power Type			Battery
Rated capacity		Kg	1300	1500	1600	1800	2000	1300	1500	1600	1800	2000
Load center		mm	500	500	500	500	500	500	500	500	500	500
Lift height		mm	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
Controler	Manufa-cture		ZAPI	ZAPI	ZAPI	ZAPI	ZAPI	inmotion	inmotion	inmotion	inmotion	inmotion

2,000-2,500kg explosion-proof forklift specification

General
　

Dimensions

Battery

Drive motor

Load handing motor

Power steering

Model

Power type

Rated capacity

Load center

Lift height

Overall dimensions

Turning radius (outside)

Model

Voltage/
Capacity
(5Hr)

Rated output/r.p.m

Length to face to fork

Overall width

Mast lowered height

Overhead guard height

V/AH

CPCD20-EX

Battery

2000

500

3000

2350

1150

2070

2258

2100

DZ2-500-GT

48/500

6.3/1400

7.5/2000

0.75/1550

CPCD25-EX

Battery

2500

500

3000

2350

1150

2070

2258

2100

DZ2-500-GT

48/500

6.3/1400

7.5/2000

0.75/1550

anical tra ssion
　

Hydraulic Hand Pallet truck

　

MODEL

CBY23-II,III,IV m V

CAPACITY KG
2000,2300,2500

OVERALL FORK WIDTH MM 540 685(27")v

LOWERED HEIGHT MM 85 73.66(2.9")

LIFTING HEIGHT MM >110 >110(4.3")

STANDARD FORK LENGHT MM 1150 1220(48")

LOAD WHEEL TANDEM NYLON/POLYURETHANE
SINGLE NYLON/POLYURETHANE

STEERING WHEEL NYLON/POLYURETHANE RUBBER COVER ALUMINIUM NYLON/POLYURETHANE RUBBER COVER ALUMINIUM

SELF WEIGHT KG 95 100

WOODEN PALLET PACKAGE SIZE FOR 6UNITS CM 230*55*75 230*70*73

20'CONTAINER LOAD UNITS 180 144

*SPECIAL SPECIFICATION AVAILABLE UPON REQUEST:FORK LENGH COLOUR,CUSTOMER BRAND
*OENIS AVAILABLE

ssion

Electric Manual Stacker

　

MODEL

EMS-A

CAPACITY

1000LBS

1500/2000LBS

1500/2000LBS

LIFTING HEGHT

94"/107"

62"/74"

96"/110"/130"

FORK LENGHT

30"

30"

30"

FORK WIDTH

3"

3"

3"

OVERALL HELGHT

73"/81"

80"/90"

73"/80"/90"

OVERALL WIDTH

42"-56"

42"-56"

42"-56"

LOWERED HELGHT

13/4"

13/4"

13/4"

FORK WHEEL

4"

4"

4"

STEERING WHEEL

8"

8"

8"

MAST

TELESCOPE

SINGLE

TELESCOPE

　

MODEL

EMS-E

CAPACITY

1000KG

1000KG

1000KG

LIFTING HEGHT

1600MM

2500M

3000M

FORK LENGHT

1150MM

1150MM

1150MM

FORK WIDTH

160MM

160MM

160MM

OVERALL HELGHT

1970MM

1780MM

1990MM

OVERALL WIDTH

540MM

540MM

540MM

LOWERED HELGHT

85MM

85MM

85MM

FORK WHEEL

83MM

83MM

83MM

STEERING WHEEL

200MM

200MM

200MM

MAST

SINGLE

TELESCOPE

TELESCOPE

　

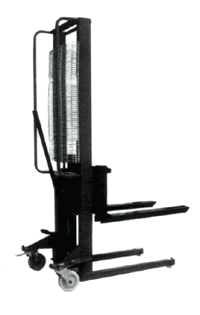

Hand Lift Truck

　

MODEL

　

　

SYC5000

SYC1000

SYC1500

Capacity

　

kg

500

1000

1500

Load Center

C

mm

400

400

400

Max Lifing height

H

mm

1600

1500

1500

Min lowered height

H

mm

80

100

100

Fork length

L

mm

800

800

800

Overall fork width

E

mm

745

860

860

Lifting speed

mm/stroke

≥35

≥25

≥25

Lenght*Width*Height

A*B*F

mm

1350*800*2000

1400*1000*2047

1400*1000*2047

Front wheel diameter

　

mm

80

80

80

Rear wheel diameter

　

mm

150

150

150

Min ground clearance

X

mm

>20

>40

>40

Min outside turning radius

R

mm

<1250

<1400

<1400

Service weight

　

kg

145

160

160

20 Container load

　

　

26

22

22

　

Shop Crane

　

MODEL

CAPACITY

PACKAGE

PACKAGE SIZE

SERVICE WEIGHT

YDJ2T

2000kg

1UNIT

1435*330*230

109

YDJ3T

3000kg

2UNITS

A:1390*360*240

154

B:1320*840*130

YDJ0.5T

500kg

2UNITS

1580*480*390

84

YDJ1T

1000kg

2UNITS

A:1550*335*210

101

B:520*470*115

YDJ2T

2001kg

2UNITS

A:1610*300*190

102

B:870*560*170

　

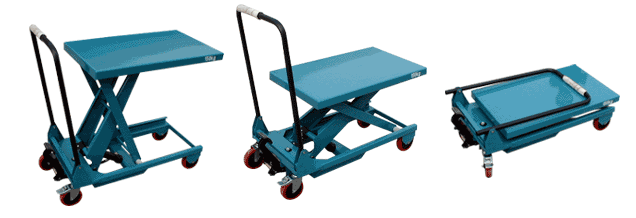

Scissor Table Truck

　

MODEL

TF15

TF30

TF50

TF75

TF100

TF35

Capacity

150

300

500

750

1000

350

Lifting Height(mm)

730

900

900

1000

1000

1300

Lowered heidht(mm)

210

270

270

410

410

345

Table dimension (mm)

700*450*35

815*500*50

815*500*50

100*513*55

100*513*55

905*512*55

Foot Pedal cycles to lift weight about

≤16

≤32

≤45

≤50

≤65

≤34

Service weight(kg)

30

72

84

110

114

95

Packing Dimension(mm)

810*470*290

900*535*300

900*535*300

1140*535*410

180*620*430

1000*540*360

20’Container load

315

200

200

110

75

122

　

High Lift Hand Pallet Truck

　

MODEL

　

HHPT

Capacity

kg

1000

Max lifting height

mm

800

Lowered height

mm

90

Fork lenght

mm

1140

Overall fork width

mm

520,680

Front wheel

　

single

Lifting speed(load/no load

mm/bout

62/20

Descending speed

　

controllable

Service weight

kg

110

Package size(4anits)

mm

1900*565*725

20’Container Contains

　

120/96

　

Ask us
