One For All

As vitality construction equipment, backhoe loaders are applied in city utility constructions, road constructions and maintenance, pipes constructions, harbor constructions and military applications with equipped a front bucket and a backhoe bucket and multiform attachments.
YCW750backhoe loaders are designed by international standard with the Chinese application requirement such as 0.83m3 4 in 1 bucket 0.23m3 ,backhoe bucket, high power and hydraulic flow. The main components such as engine, axle, transmission, hydraulic vales and pump are from the best backhoe loaders component suppliers in the world for the machine reliability and consumers value maximized.
One in all as your dream, we provide the best tools for creating your bright future.

The Design For The Perfection Applications
The chassis of YCW750 backhoe loader is unitary. Operator cab can be exchangeable with 5 isolation mounts on the chassis. The tanks of hydraulic and fuel are independence and exchangeable and arranged in a lower position for stability improvement and service. The tanks are the ladder for operator access.
The machine weight distribution is equilibrium between front loader and backhoe. It can avoid the gravity offset during backhoe working.
The arrangement of engine hood and the radiation system are tip up for the view during the front loader working. The hood can be tip up by hand for the service.
It is better for the central mounted and stabilizations to control the gravity offset and improve machine flexibility and stability.

Transfer With Great Easy

Fully synchronized 4-speed forward/reverse shuttle transmission with hydraulically actuated clutches and high stall ratio torque converter and heavy-duty axles provide stable traction force for the machine.
4 gears forward and reverse, the maximum speed is 35km/h.
The speed of reverse is  13% higher than forward and improves productivity of the machine.
The forward and reverse are controlled by direction change control ever and it is a neutral start protection function.
The turning angle is 510 machine can work in a straitness area. The front axle oscillation each side is 110 and it provides machine can work stable in bumpiness condition.

Enthusiasm And Championship Power
YCW750 backhoe loader equip with Cummins turbo charge engine.
The nominal power is 95horse power and the maximum torque is 384 Nm(1500 rpm), the reserve coefficient is more than 40%,it can provide the power for the over load application.

Creating The Maximum Value
The loader is arranged vertical loader arms with double parallel lift cylinders. New arch design of the loader arms increases the dumping ability. Reverse linkage allows act perfectly and provides maximum breakout forced and faster dump time.
Return-to-dig feature avoid from materiel drip during the loader arm lift.4 in 1 bucket is a standard configure of YCW750 backhoe loader.4 in 1bucket can be as loader, scrape, bulldoze, flatland, clamp, paving and lift performance.
Over-center backhoe design distributes the weight of the hoe toward the front fo the tractor for improved overall stability to give you excellent roading characteristics, and lift and climb ability. The over-center design reduces overall length. There is a LCH damping system is the backhoes swing for buffer in the limit positions. The stabilizers with hydraulic locks allow machine work stable in the variety landform.

The Source Of power And Efficiency
Front loader and backhoe are controlled by individually control valves. There are variable flow auxiliary hydraulic systems for variety attachments. The system is open-center and results smooth, fast response in precise digging operations.
The tandem gear pump driven by engine directly can provide 140L/min flow and the 21 Mpa hydraulic pressures. The large oil tank radiator ensure the hot oil cooling. The filter is 10-micron.

Movement Smooth And Drive Safely
Maintenance-free, self-adjusting, inboard mounted, wet disc brakes are hydraulically actuated and efficiency.
The right and left wheel can be operated individually for pivot turns or simultaneously for normal braking. The pivot turns radius is 3240 mm.

Operator Comfort, Ease Of Operation and Control

Cab with heat and A/C provides a comfortable environment for operator. Roomy space provides excellent visibility to the work site. The curved glass and flown line fender, and the cab with curved structure provide aesthetic feeling in vision.

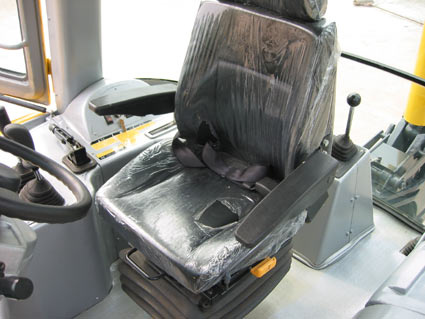

The operator seat with retractable can be suspension and allows easy operator movement between the loader and backhoe control.
Included with the cab is interior rear-view mirror, front and rear windshield wipers and window hydro penning and storage compartment.
Custom designed controls enhance operator interaction for improved work cycles. The pedals are pensile for easy clean of the cab floor. Instruments locate on the steer column and the right side console for allowing easy operator to read.
Steer column can be tipped as operator requirement and controlled by one hand. Hydraulic steer system allows easy operate the machine.

Smart Control And Under Control
Electric systems are waterproof and dustproof, heavy duty cable and connectors. Fuse and relay are located in the Cab for easy service.
The battery of maintenance-free with long lifetime and powerful energy provides of cold weather start.
The instrument with liquid crystal display monitors the key points of machine application for the trouble solve on time.
