Trenchless equipment



　　Since the middle of last century, as one of the most authoritative research institutes in the field of construction machinery in China, doing perfectly on every single process of our product manufacturing, design, researching, and improvement, we have kept thinking one same question:
　　 what kind of construction equipments are best suitable for the construction force in China and even the whole world?
　　We finally find out that the level of builders’ efficiency is the decisive element of the competitive advantage for construction organizations. As all machineries are the extension of functions of limbs of human beings, only by real coordination between workers and machines, the combination may works to bring out the last potential.
　　Therefore, we research and develop our products for one ultimate aim of giving the user an equipment that by using which, who can maximize his efficiency.
　　So, we invented all our techniques by insisting on the spirit of possessing overall self-owned intellectual property, and keep learning the leading-edge technical advance in the industry.
　　 Thus, the complete-product quality and the working performance of our products, have reached the top level of the industry, not only domestically, but also globally.




Horizontal direction drilling system





Horizontal direction drilling system




KSD5


Click it to open new window

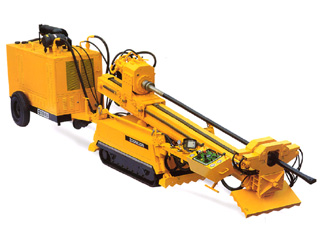

KSD25


FEATURES


● Uses either compressed air or drilling mud to enable dry or wet drilling designed to work in a variety of ground conditions from soft soil to solid rock over 250MPa



● Separate hydraulic powerpack allows flexible positioning, suitable for jobs in confined areas



● The rubber tracks greatly reduce the risk of damage to the road surface. Unique track traversing mechanism ensures more agile and accurate positioning.



● Rotary head has three speeds, suitable for different ground conditions and pipe sizes. Shock damping at rotary head to reduce the impact from hammer drilling and protect the drill rod threads.



● Using world-renowned components in this machine to make it has excellent performances and reliability.



● Full-load sensitive control makes operation simple and efficient.



● Real-time monitoring and control of the drilling tools, ensuring safe and accurate drilling and pipe-pulling to prescribed route.



KDS25 Specifications


Main Technical Specification
Diesel Engine Power(kw) 112 / 150 H.P
Max. Torque(N.m) 9060 6820 4630
Speed(r/min) 0-40 0-50 0-70
Max. Thrust Force(KN) 170 / 17 T
Max. Pullback Force(KN) 250 / 25 T
Max. Pipe Diameter(mm) 800
Max. Pipe Length(m) 300
Drill Rod Diameter(mm) 78
Drill Rod Length(m) 3
Pneumatic Hammer Diameter(mm) 102
Pneumatic Hammer Impact Force(J) 600
Location System Radiodetection RD386 ( Drill Track)
Pneumatic Water Pump LUTZ 04
Air Consumption(m3/min) 15.5
Air Pressure(Mpa) 1.13 / 11.3 bar / 170 P.S.I
Outside Dimensions of the Rig(mm) L 5600 × W 1300 × H 2020
Weight of the rig(kg) 5560
Weight of powerpack(kg) 1800

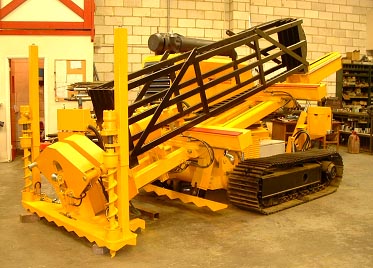

KSD15


Click it to open new window



KDS15 Specifications


Main Technical Specification
Diesel Engine Power(kw) 141
Max. Torque(N.m) 6000
Speed(r/min) 0-150
Max. Thrust Force(KN) 150 / 15 T
Max. Pullback Force(KN) 150 / 15 T
Max. Pipe Diameter(mm) 600
Max. Pipe Length(m) 200
Drill Rod Diameter(mm) 60
Drill Rod Length(m) 3
Pneumatic Hammer Diameter(mm) 102
Pneumatic Hammer Impact Force(J) 600
Location System Radiodetection RD386 ( Drill Track)
Pneumatic Water Pump LUTZ 04
Air Consumption(m3/min) 15.5
Air Pressure(Mpa) 1.13 / 11.3 bar / 170 P.S.I
Outside Dimensions of the Rig(mm) L 5800 × W 2120 × H 1800
Weight of the rig(kg) 8000



Power mole





20 years experience, specializing in mole’s developing and manufacturing, offers high compact but powerful moles products for our customers around the world.
Only 7 parts in any mole, without any seal and spring, makes it reliable and cost saving for maintenance.

FEATURES


    20 years experience, specializing in mole’s developing and manufacturing, offers high compact but powerful moles products for our customers around the world.
    Only 7 parts in any mole, without any seal and spring, makes it reliable and cost saving for maintenance.



Specifications


Model Outside Dim install pipe Dim Max ramming Dim  Max bursting Pipe Dim Weight Air consume Air pressure
   mm /  in Mm / in mm  /   in mm /   in Kg/ lbs. m3/min 3/min bar  lbs/in2
PM45 48 /1.89 40 /1.51     8.4 /18.5 0.4-3.5 /5-125 2.7-8.0 /40-120
PM67 67 /2.64 63 /2.48     30 /66 (2.8)/（100) (7)/(100)
PM67S 67 /2.64 63 /2.48     19 /42 0.7-3.5/ 5-125 5.0-8.0 /80-120
PM75 75 /2.95 70 /2.75     38 /84 (2.8) /(100) (7)/(100)
PM75S 75 /2.95 70 /2.75     24 /53 0.5-3.5 /8-125 5.0-8.0 /80-120
PM82 82 /3.23 75 /2.95     40 /88 (2.8)/(100) (7)/(100)
PM82S 82 /3.23 75 /2.95     31 /68  1.2-3.5 /0-125 5.0-8.0 /80-120
PM100

100/ 94

 90 /3.54 125  /4.92 125 /4.92 66 /145   (2.8)/(100) (7)/(100)
PM110 110 /4.33 100/ 3.93 125  /4.92

125 /4.92

 85 /188 1.2-3.5 /40-125 5.0-8.0 /80-120
PM137 137 /5.39 125 /4.92 200  /7.87

200 /7.87

 120 /265 (2.8) /(100) (7)/(100)
PM155 155 /6.10 140 /5.51 400 /15.74 400 /15.74 180 /396 1.6-3.5 /0-125 5.0-8.0 /80-120
PM300

300/11.81

 1200

1200/47.24

 In good condition can over 1000mm 747/1643 (2.8)/(100) (7)/(100)
