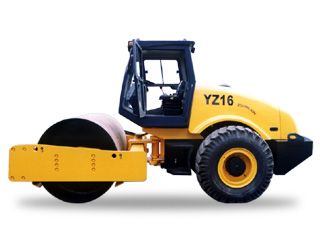

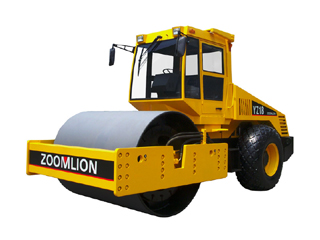

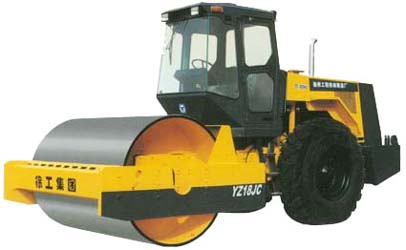

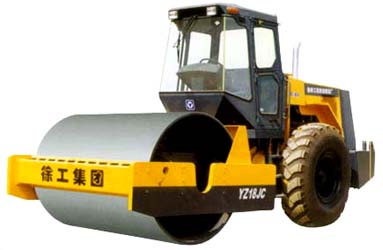

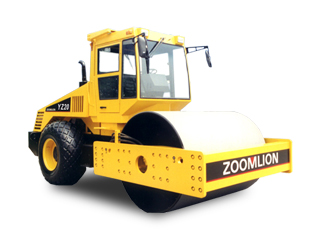

YZ16JC、YZ18JC、YZ20JC Single drum vibratory roller

Introduction
　　Road roller model YZ16JC、YZ18JC、YZ20JC is of multi-function vibratory roller,which can efficiently compact various soil surface and gravel back-filling and is suitably applied to projects construction,such as:highway,airport,embankment back-filling,seaport,dam,railway,mine,etc.that need various compacting,depth and high efficiency.
　　This type of road roller is featured in its hydraulic vibrating,machanical driving,as well as articulated fully hydraulic steering.
　The vibrating drum has the characteristics of heavy vibrating weighting,single-frequency with duel amplitudes soas to compact various paving layer with different depths.Hydraulic system,which adopts the enclosed system consisting of imported piston pumpand motor,ensures every performance required by vibrating parameters.Mechanical driving system is consisted of three-gear shifting mechanism,forward/reverse machanism and differentialmechanism; foot brake adopts two double-clip disc -type brake;and belt type parking functions ensures high flexibility,gredeability and stable braking performance.The fully hydraulic steering system eases the steering operation. The clutch and foot braking of the machine adopt pneumatic(air-compensation) control,which greatly reduces the operative force and improve the machine flexibility.The vibrating bearing being of imported component improves the machine's reliability. The power system,which is of D6114 water cooling diesel engine with world-wide advanced technology,greatly better the machine's reliability.
　The machine adopts the articulated beam-frame so as to make easy maintenance.The operation cab with 3-level shock absorber and sealed noise-proof provides the operator with comfortable and safe working condition.
Main technical specification
  YZ16JC YZ18JC YZ20JC
working mass(Kg) 16000 18000 20000
Module mass on front drum(Kg) 7700 8700 9500
Module mass on rear drum(Kg) 8300 9300 10500
Static liner load(N/cm) 348 390 427
Driving speed(Km/h)
　　1st 2.86 2.86 2.86
　　2nd 5.3 5.3 5.3
　　3rd 9.7 9.7 9.7
Theoretical gradeability(%) 30 30 30
Min. turning radius(mm) 6500 6500 6500
Min.ground clearance(mm) 385 385 365
Max.shell protuberating(mm) 120 120 120
Steering angle ±32° ±32° ±32°
Swing angle ±11° ±11° ±11°
Vibrating frequency(Hz) 28 28 28
Norminal amplitude(High/low(mm) 2.0/1.0 2.1/1.1 2.0/1.1
Centrifugal force@high/low Amp(kN) 300/150 330/190 350/200
Vibrating drum dia.(mm) 1523 1523 1523
Vibrating drum width(mm) 2179 2179 2179
Engine
　　Type Shanghai diesel D6114 D6114 D6114
　　type Water cooled,
　　Max.Power@1800r/min(kW) 115 115 125
Contour size
　　Total length(mm) 5720 5720 5783
　　Total width(mm) 2410 2410 2410
　　Total height(mm) 3160 3160 3160

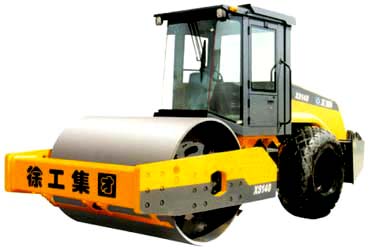

XS140、XS160、XS180 can be equipped with：
　　* Platau type。
　　* YZK16J、YZK18J，padfoot drum。

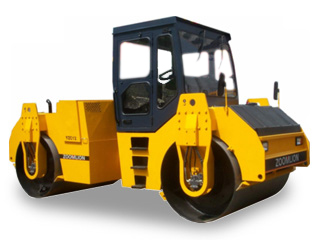

XD120、XD130 Tandem vibratory roller

Introduction
　　XD120、XD130 Vibratory roller is of heavy-duty,self-propelled double-drum vibratory roller,mainly applied to compaction for the asphalt concrete and cement concrete road surface of the high grade motorway,airport,parking lots and industrial yard,and also being used for the large-scale base,sub-base and embankment fill compaction.
　　XD120、XD130 Vibratory roller adopts fully hydraulic transmission and fully electric-hydraulic control. All the main system and components are perchased from international manufacturers, which feature with advantages like: infinitely variable speeds drive,infinitely variable frequency vibration,double amplitude,crab-walking mechanism,flow-variable water spraying system,spring clamping scraper.
Main technical specification
Description XD120 XD130
Working mass(Kg) 12300 13000
Module mass on fron drum(Kg) 6100 6400
Module mass on rear drum(Kg) 6200 6600
Liner load on front drum(N/cm) 281 3000
Liner load on rear drum(N/cm) 285 309
Speed range(Km/h) 0－10 0－10
Gradeability(%) 30 30
Min.outer turning radius(mm) 6000 6110
Min.clearance(mm) 420 495
Steering angle ±(23°+23°) ±(23°+23°)
Crab-walking angle ±23° ±23°
Swing angle ±12° ±12°
Max. crab-walking distance(mm) ±200 ±200
Vibrating frequency(Hz) 30－45 30－45
Norminal amplitude(high/low)(mm) 0.80/0.40 0.75/0.39
Centrfugal force@48Hz high/low amplitude(kN) 140/70 150/80
Vibrating drum diameter(mm) 1250 1250
Vibrating drum width(mm) 2130 2130
Engine 　
　　Model Deutz F6L912 Cummins B3.9-C
　　Type Air-cooling Water cooling
　　Max.power@2500r/min(kW) 80 97
Overall length(mm) 6000 6000
Overall width(mm) 2270 2270
Overall height(mm) 3430 3430
Fuel tank capacity(L) 220 220
Water tank capacity(L) 2×500 2×500

XD120、XD130 rollers can be equipped with the following in case of need：
　　* Vibrating drum with 10 amplitudes。
　　* Fops and Rops frame（150mm higher for cab）。
　　* Cab+Fops and Rops frame（150mm higher for overall height）。

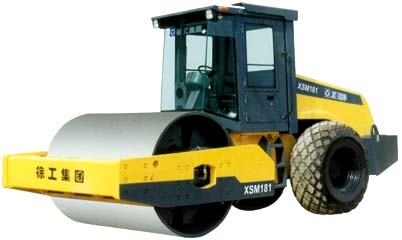

XSM216/XSM218/XSM220 Single-Drum Vibratory Roller

Introduction
　　XSM216/XSM218/XSM220 vibratory roller is one kind of heavy self-propelled vibratory roller.It is mainly used for the compacting work of infrastructure,sub-base and backfilling,which combined of sorts of material. It is the ideal compacting machine for the building of high level highway,airport,dam and industry construction.
　　XSM216/XSM218/XSM220 vibratory roller adopts articulated chassis,power shift transmission,driving axle produced by sino-foreign joint venture,F/R three speed electronically controlled shifting,enclosed hydraulic vibrating system,3 stage shock-absorbtion,hydraulic articulated steering,Rops framework etc.
Main technical specification
Model XSM181 XSM201
Min.working mass(Kg) 18000 20000
Module mass on front drum(Kg) 8700 9700
Module mass on rear wheels(Kg) 9300 10300
Static liner load(N/cm) 390 445
Speed range 　
　　ⅠSp(Km/h) 2.6 2.6
　　ⅡSp(Km/h) 5.1 5.1
　　Ⅲ Sp(Km/h) 8.4 8.4
Gradeability(%) 30 30
Min.turning outer radiu(mm) 6500 6500
Min.clearance(mm) 385 385
Max.shell protuberating(mm) 120 120
Steering angle ±34° ±34°
Swing angle ±11° ±11°
Vibration frequency(Hz) 28 28
Norminal amplitude(high/low)(mm) 2.1/1.0 2.1/1.0
Centrifugal force @ high/low amplitude(kN) 330/190 350/200
Vibrating drum diameter(mm) 1523 1523
Vibrating drum width(mm) 2178 2178
Engine model D6114ZG
　　Type Water cooled,turbo-charged
　　Max.power2000r/min(kW) 115 128
　　Rated speed(r/min) 2000 2000
Power gearbox BD132 BD132
　　Pressure(Mpa) 1.6 1.6
　　Total length(mm) 6346 6346
　　Total width(mm) 2423 2423
　　Total height(mm) 3218 3218



CR60. CR80 Vibrating Tamper

Brief Introduction
　　CR vibrating tamper is suitable for compacting sand, clay and bituminous materials. Also used for compacting base foundation of the construction, irrigation and road project, especially for compaction work where the road roller can not be used such as trench, footings and hardshoulds etc.
The machine is designed in nice-looking shape, featuring in comfortable operation, rational structure, easy maintenance and service, which makes it be an necessary compacting equipment for compaction work for narrow and restricted areas. To accomplish satisfactory compacting effectiveness only needs 2--3 times of compacting by this kind of machine.
Features
　　* Equipped with the engine imported from Japan;
　　* The engine with power directly output allows the power being transmitted to the tamper plate at maximum efficiency.
　　* High-performance of shock-absorbing system makes it more easy to operate.
Main Technical Specification
Model CR60 CR80
Basic mass (Kg) 60 80
Jumping height(mm) 65 70
Vibrating frequency(Hz) 8－10 8－10
Driving speed(m/min) 8－13 8－13
Engine power(kW) 2.2 2.2



SR75、SR90、SR100 Vibrating Plate Compactor

Brief Introduction
　　SR series vibrating compactor is suitable for compacting soil, gravel, and bituminous material. Also used to replace the road roller for repair work of small areas and compacting streets, footpaths, man-hole well openings and narrow and restricted areas near the buildings.
Features
　　* Equipped with Honda engine directly imported from
Japan.
　　* Adopting the vibrating bearing imported from Japan.
　　* Equipped with centrifugal clutch, belt drive.
　　* High performance of shock-absorbing system makes it
more easy to operate.
Main Technical Specification
Model SR75 SR90 SR100
Basic mass(Kg) 80 90 100
Base plate dimension(mm) 460×500 576×505 576×505
Centrifugal force(kN) 19 15 18
Driving speed(m/min) 25 20 20
Engine power(kW) 4.1 4.1 4.1

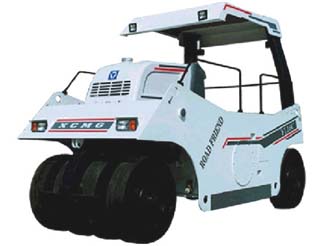

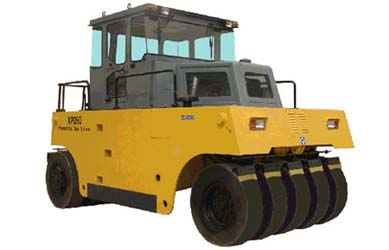

XP260、XP300 Pneumatic roller

Introduction
　　XP260,XP300 Pneumatic roller is of super-heavy self-propelled pneumatic roller,which is mainly applied to compaction work for base,sub-base,fill and asphalt surface. It is the ideal compacting equipment for constructing high-grade express highway,airport,seaport,embankment and industry buildings.
　　XP260、XP300 Pneumatic roller is featured with its 3-gear mechancal drive,pneumatic-hydraulic braking,water suction and sprinking system with big power,compressed sprinking structure for tyre surface and hydraulic steering mechanism,etc.
　　XP260,XP300 Pneumatic roller is characterized of high working efficiency and compaction performance. By increasing or decreasing ballast and changing the pneumatic pressure in tyres may adjust the rolling pressure of tyres,which realizes the dense compaction on the layer material without leaving any false compaction,so so to ensure the road surface hardness and shearing strength.
Main technical specification
Model XP260 XP300
Min.working mass(Kg) 14500 17000
Max. working mass(Kg) 26000 30000
Rolling pressure(Kpa) 250－420 260－480
Driving speed 　
Forward,1st (Km/h) 6.5 6.5
　Forward 2nd(Km/h) 11.0 11.0
　　Forward 3rd(Km/h) 19.0 19.0
Reverse speed(Km/h) 5.0 5.0
Gradeability(%) 40 40
Min. turning radius(mm) 9000 9000
Min.clearance(mm) 290 290
Compacting width(mm) 2750 2750
Overlapping of front tyre(mm) ±45 ±45
Overlapping of front & rear tyre(mm) 50 50
Tyres Smooth 11.00－20
Number of tyres Front 5,Rear 6
Engine model D6114ZG39A D6114ZG39A
　　Type Water cooling, trbo-charged
　　Max.power@2000r/min(kW) 115 132
Overall dimensions(Contour size) 　
　　length(mm) 4910 5060
　　Width(mm) 2845 2845
　　Height(mm) 3380 3380

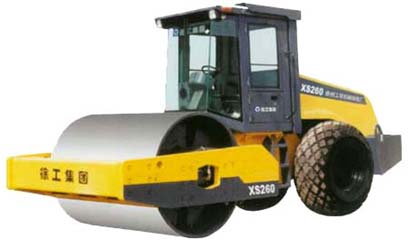

XS260、XS260H Single drum vibratory roller

Brief Introduction
　　XS260 and XS260H vibratory roller are the extre-heavy self propelled single-drum vibratory roller,which is mainly suited for compacting jobs with construction of high class highway,airports,harbours,dame and industrial yards.Also lends itself to be used on the large-scale base course,sub-base and embankment fill compaction.
　　* The diesel engine with air-cooling supercharged, middle cool and strong power.
　　* Anti-slip hydraulic driving system and anti-slip hydraulic driving axle could meet various requirement for traction.
　　* Dual frequency & dual amplitude closed vibrating system and the rational static linear load matching with centrifugal force could make the machine satisfy different compaction requirement under different working condition.
* The treamline design and wide vision make it easy for operation and control.
　　* The control cab is equipped with ultra-violet radiation-proof, air conditioner, low-temperature starting system and electrical frost removing device,which makes the machine being applied in plateau area.(only for plateau -type machine)
Main Technical Specification
Model XS260/XS260H
Working mass(Kg) 25600
Mass distributed on front drum(Kg) 17500
Mass distributed on rear drum(Kg) 8100
Static linear load(N/cm) 805
Speed range(Km/h) 0－12
Theoretical gradeability(%) 50
Min.outer turning radius(mm) 6870
Vibrating frequency(Hz) 27/32
Nominal amplitude (low/high fre.)(mm) 2.1/1.0
Centrifugal force (low fre. high amp./ high fre.low amp.)(kN) 430/290
Vibrating drum diameter(mm) 1600
Vibrating drum width(mm) 2130
Engine model Deutz BF6L913C
Rated power(kW) 141
Following options for XS260/XS260H vibratory roller could be available at requested of the customers:
　　* Imported compactionmeter
　　* Domestically-made compactionmeter

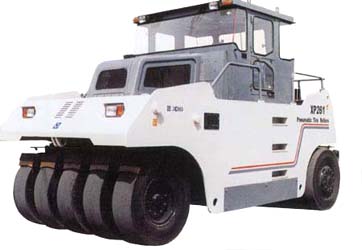

XP261、XP301 Pneumatic Roller

Brief Introduction
　　XP261 and XP301 pneumatic roller is of super-heavy self-propelled pneumatic roller, which is mainly applied to compaction work for base, sub-base,fill and asphalt surface. It is the ideal compacting equipment for constructing high-grade express way, airport, seaport, embankment and industry buildings.
XP260 and XP301is featured in its 2-gear infinitely various speed,dynamic-hydraulic transmission, pneumatic-hydraulic braking,easy operation,comfortable seat, water suction and sprinkling system with big power, compressed sprinkling structure for tyre surface and hydraulic steering mechanism,etc.
XP260 and XP301 pneumatic rolleris characterized of high working efficiency and compaction performance. By increasing or decreasing ballast and changing the pneumatic pressure in tyres may adjust the rolling pressure of tyres, which realizes the dense compaction on the layer material without leaving any false compaction, so as to ensure the road surface hardness and shearing strength.
Main Technical Specification
  XP261 XP301
Min. working mass(Kg) 14500 17000
Max.working mass(Kg) 26000 30000
Rolling pressure(kPa) 250－420 260－480
Driving speed 　 　
　　Ⅰ(Km/h) 0－8 0－8
　　Ⅱ(Km/h) 0－20 0－16
Theoretical gradeability(%) 40 40
Min.outer turning radius(mm) 9000 9000
Min. ground clearance(mm) 290 290
Compacting width(mm) 2750 2750
Swinging distance of front tyre(mm) ±45 ±45
Overlapping of front & rear tyre(mm) 50 50
Tyre specification Smooth 11.00－20
Tyre numbers 5-tyre front & 6-tyre rear
Engine model D6114ZG39A
　　Type water-cooling, supercharged
　　Max. power@2000r/min(kW) 115 132
Total size(contour size) 　 　
　　Length(mm) 4910 5060
　　Width(mm) 2845 2845
　　Height(mm) 3380 3380

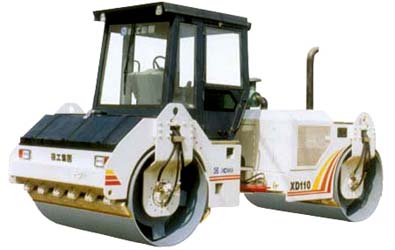

XD110 Tandem Vibratory Roller

Brief Introduction
　　XD110 vibratory rollers are a kind of heavy-duty tandem roller, which is mainly used for compaction of asphalt and concrete surface of high-class road, airport, parking place and industrial yard, etc.They are also suited for compaction of largescale base, sub-base and embankment.
XD110 vibratory roller adopts full-hydraulic transmission and electro-hydraulic control system with main components and spare parts imported from international manufacturers. It features with the structure of whole-drum stepless variable drive, infinite frequency adjustable vibration,dual-amplitude, crab walking mechanism, adjustable sprinkling system and spring loaded scraper, etc.
Main Technical Specification
Description XD100 XD110
Working mass(Kg) 10300 10900
Mass distributed on front drum(Kg) 5200 5500
Mass distributed on rear drum(Kg) 2100 5400
Static linear load on front drum(N/cm) 268 284
Static linear load on rear drum(N/cm) 263 279
Speed range(Km/h) 0－10 0－10
Theoretical gradeability(%) 30 30
Min. outer turning radius(mm) 5900 2900
Min. ground clearance(mm) 420 420
Steering angle ±(23°+23°) ±(23°+23°)
Crab-walking angel ±23° ±23°
Swinging angle ±12° ±12°
Max. crab-walking distance(mm) ±200 ±200
Vibrating frequency(Hz) 30－48 30－48
Nominal amplitude (high/low)(mm) 0.80/0.40 0.80/0.41
Centrifugal force@48Hz high/low amp.(kN) 120/60 133/66
Vibrating drum diameter(mm) 1250 1250
Vibrating drum width(mm) 1900 1900
Engine 　
　　Model Cummins B3.9-C
　　Type water-cooling, supercharged
　　Max.power@2500r/min(kW) 97 97
Total length(mm) 6000 6000
total width(mm) 2030 2030
Total height(mm) 3320 3320
Fuel tank capacity(L) 220 220
Water tank capacity(L) 2×450 2×450
Following options for XD110 could be available at request of the customers:
　　* ROPS (add 150mm to the overall height).
　　* Control cab + FOPS (add 150mm to the overall height).

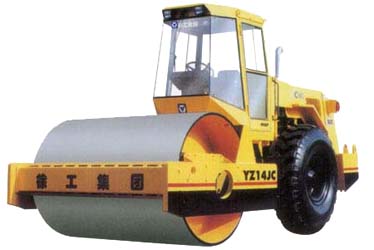

YZ10JC、YZ12JC、YZ14JC Single-drum vibratory roller

Introduction
　　YZ10JC、YZ12JC、YZ14JC Vibratory roller is of self-propelled vibratory roller,which can efficiently compact various soil surface,sub-base and back-filling and is suitably applied to construction projects such as :highway,airport,embankment back-filling,seaport,dam,railway,mine,that needs various compacting depth and high efficiency.
　　YZ10JC、YZ12JC、YZ14JCvibratory roller adopts the articulated beam-frame so as to make easy maintenance,mechanical driving system,three-gear shifting mechanism. The open system consisting of imported gear pump and motor,greatly improves the machine's reliability.The driving cab with 3-level shock absorbers as well as articulated fully hydraulic steering.
Main technical specification
  YZ10JC YZ12JC YZ14JC YZ14JC
Working mass(Kg) 10800 12000 14000 14000
Front drum module mass(Kg) 4900 5400 6700 6700
Rear drum module mass(Kg) 5900 6600 7300 7300
Static liner load(N/cm) 230 248 308 302
Driving speed(Km/h) 　
　　1st sp 2.37 2.37 2.37 2.86
　　2nd sp 4.41 4.41 4.41 5.3
　　3rd sp 8.11 8.11 8.11 9.7
Theoretical gradeability(%) 30 30 30 30
Min. turning radius(mm) 5600 5600 5600 6500
Min. clearance(mm) 385 385 385 385
Max.shell protuberating(mm) 120 120 120 120
Steering angle ±34° ±34° ±34° ±32°
Swing angle ±11° ±11° ±11° ±11°
Vibrating frequency(Hz) 28 28 28 28
Norminal amplitude(high/low)(mm) 1.74/0.82 1.74/0.82 2.0/1.0 2.0/1.0
Centrifugal force@high/low amplitude(kN) 198/93 243/115 271/137 271/137
Vibrating drum diameter(mm) 1523 1523 1523 1523
Vibrating drum width(mm) 2130 2130 2130 2178
Engine 　
　　Model Shanghai 4135 Shanghai4135 4135 Yulin YC6108
　　Type Water cooling,aspiration Water cooling and pressurized
　　Max.power@1500/rpm@1500r/min(kW) 73.5 73.5 73.5 92
　　Total length(mm) 5545 5545 5545 5545
　　Total width(mm) 2370 2370 2370 2410
　　Total height(mm) 3160 3160 3160 3160
Options for YZ14JC could be available at request of the customers:
　　* Plateau type engine
　　* Shanghai diesel engine 4135AZK water cooling,pressurized,90kw@1500r/min
　　* Yulin diesel engine 6108ZG5 water cooling, pressurized,92kw@1500r/min。
　　YZ12JC、YZ14JC can also be equipped with padfooted- drum.

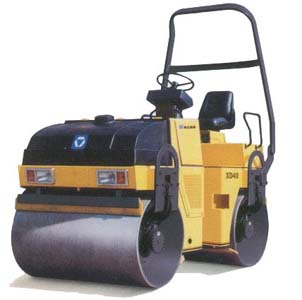

XD30、XD40 Double-Drum Vibratory Roller

Brief Introduction
　　XD30、XD40 vibratory roller is a light duty tandem vibratory roller, which is mainly suited for town road and stadium of small scale road surface compaction. Also being used on the base course, sub-base, sand and gravel compaction. Feature of frameless structure enables the roller be capable of good compacting performance near the curb and have great advantages on compacting tunnel foundation.
XD30/XD40 vibratory roller adopts fully hydraulic transmission and fully electric-hydraulic control. All the main system and components are purchased form international manufacturers, which feature with advantages like: infinitely variable speed driven, front/rear drum vibrating, full-articulating steering structure. lor=#ff0000>Main Technical Specification
　 XD30 XD40
Working mass(Kg) 2500 4000
Mass distributed on front drum(Kg) 1300 2000
Mass distributed on rear drum(Kg) 1200 2000
Static linear load on front drum(N/cm) 116 150
Static linear load on rear drum(N/cm) 110 150
Speed range(Km/h) 0-10 0-10
Theoretcial gradeability(%) 30 30
Min. outer turning radius(mm) 4000 4400
Min. ground clearance(mm) 200 260
Steering angle ±30° ±30°
Swinging angle ±10° ±10°
Vibrating frequency(Hz) 55 50
Norminal amplitude(mm) 0.5 0.5
Centrifugal force(kN) 25 34
Vibrating drum diameter(mm) 650 800
Vibrating drum width(mm) 1100 1300
Engine 　
　　Model Deutz F2L1011F Deutz F3L1011F
　　Type Air-cooling,aspiration
　　Max. power@2600r/min(kW) 20 30
Total length(mm) 2450 2700
Total width(mm) 1230 1452
Total height(mm) 2840 2950
Fuel tank capacity(L) 80 100
Water tank capacity(L) 170 230



YZ18JC Single-Drum Vibatory Road Rollr

Brief Introduction
　　YZ18JC road roller is a self-propelled multi-function vibratory roller, which can efficiently compact various soil layer and gravel back-filling and is suitably applied to construction projects, such as: highway, airport, embankment back-filling, seaport, dam, railway, mine, which needs various compaction depth and high efficiency.
This type of road roller is featured in its hydraulic vibrating, mechanical driving, as well as articulated fully hydraulic steering.The vibrating drum has the characteristics of heavy vibrating mass, single-frequency with duel amplitudes so as to compact various paving layer with different depth. Hydraulic system, which adopts the enclosed system consisting of imported piston pump and motor,ensures every performance required by vibrating parameters, Mechanical driving systems consisting of three-gear shifting mechanism, forward/reverse mechanism and differential mechanism; foot brake adopts two double-clip disc-type brake; and the hand brake is of belt-type braking, all of these advantages ensure the machine of high flexibility, great gradeability and braking funtion. The fully hydraulic steering system eases the steering operation. The clutch and foot braking of the machine adopt pneumatic ( air-compensation) control, which greatly reduces the operative force and improve the machine flexbility. The vibrating bearing with imported component improves the drum's reliability. The power system, which is of D6114 water cooling diesel engine with world-wide advanced technology, greatly better the machine's reliability.
The machine adopts the articulated beam-frame so as to make maintenance easy. The driving cab with 3-level shock absorbers and sealed noise-proof provides the operator with comfortable and safe working condition.
Main Technical Specification
　　Working mass(Kg)：18000
　　Static linear load(N/cm)：390
　　Speed range(Km/h)
　　　　I speed：2.86
　　　　II speed：5.3
　　　 III speed：9.7
　　Theoretical gradeability(%)：30
　　Min. outer turning radius(mm)：5600
Wheel base(mm)：2805
　　Vibrating drum width * diameter(mm)：2178*1523
　　High amplitude(mm)：２.１
　　Low amplitude(mm)：１.１
Vibrating frequency(Hz)：28
　　Nominal amplitude @ low/high fre.(mm)：2.0
　　Centrifugal force (kN)
　　High amplitude：330
　　Low amplitude：190
Engine
　　　　Model：D6114ZG16A
　　　　Type：water cooling, supercharged
　　　　Max. power @ 2500r/min(kW)：115
　　Standard speed(r/min)：1800
Drum module mass(Kg)：8500
　　Total length(mm)：5720
　　Total width(mm)：2410
　　Total hight(mm)：3035




XS160A、XS190A、XS220A Single drum vibratory roller

Introduction
　　XS160A/XS190A/XS220A Vibratory roller is the heavy self-propelled single-drum vibratory roller,which is mainly suited for compaction during constructions of high-class highways,airports,harbours,dams and industrial yards,Also lends itself to be used on the large-scale base course,sub-base and embankment fill compaction. The machine has original high-power engine and special hydraulic driving system,which can make the machine fit with construction work better in areas of plateau and desert.
　　XS160A/XS190A/XS220A Vibratory roller takes its main components and system according to international style. It has following described advantages in its structure and performance: Four-level infinitely speeding of closed hydraulic driving system,double frequency and double amplitude,wholly closed air-conditioned driving cab,the operating system which fulfills the ergonomical principle,suspensional seat,hydraulic articulated steering and the configuration of stream line.
Main technical specification
　 XS140 XS160 XS180
Working mass(Kg) 14700 16800 18100
Module mass on front drum(Kg) 9000 10700 12000
Module mass on rear wheels(Kg) 5700 6100 6100
Static liner load(N/cm) 425 492 552
Speed range(Km/h) 0－12 0－12 0－12
Gradeability(%) 50 55 55
Min. turning radius(mm) 5900 6320 6320
Min.clearance(mm) 460 450 450
Max.protuberating(mm) 130 150 150
Steering angle ±38° ±33° ±33°
Swinging angle ±9° ±9° ±9°
Vibrating frequcncy(low/high)(Hz) 28/35 28/38 28/35
Norminal amplitude @ low/high frequency(mm) 1.80/0.77 1.80/0.79 1.80/0.79
Centrifugal force@ low frequency high amplitude/high frequency high amplitude(kN) 330/220 350/240 375/250
Vibrating drum diameter(mm) 1520 1523 1600
Vibrating drum width(mm) 2130 2130 2130
Engine 　 　 　
　　Model Cummins B5.9-C Deutz BF6L913 Deutz BF6L913C
　　Type Water cooling turbo-charged Air cooling ,turbo-charged
　　Max.Power@2500r/min(kW) 113 118 141
Total length(mm) 6130 6295 6295
Total width(mm) 2390 2430 2430
Total height(mm) 3165 3188 3188
XS160A/XS190A/XS220A roller can be equipped with the following in case of need：
　　* Imported compaction meter.
　　* Padfooted drum.
* Air-cool diesel engine




YZ16JC、YZ18JC、YZ20JC Single-Drum Vibratory Roller

Introduction
　　YZ16JC、YZ18JC、YZ20JC roller is of multi-function vibratory roller, which can efficiently compact various soil surface and gravel back-filling and is suitably applied to projects construction, such as highway,airport, embankment back-filling,seaport,dam,railway,mine,etc. that need various compacting depth and high efficiency.
　　This type of roller is featured with its hydraulic vibrating, mechanical driving,as well as articulated fully hydraulic steering.
　　The vibrating drum has the characteristics of heavy vibrating weighting,single-frequency with duel amplitudes so as to compact various paving layer with different depths.Hydraulic system,which adopts the enclosed system consisting of imported piston pump and motor,ensures every performance required by vibrating parameters. Mechanical driving system is consisted of three-gear shifting mechanism,forward/reverse machanism and differential mechanism;foot brake adopts two double-clip disc-type brake and parking brake uses belt type braking fuction. The fully hydraulic steering system eases the steering operation. The clutch and foot braking of the machine adopts pneumatic (air-compensation) control,which greatly reduces the operative force and improve the machine flexibility. The vibrating bearing being of imported component improves the machine's reliability. The power system,which is of D6114 water cooling diesel engine with world-wide advanced technology,greatly better the machine's reliability.
　　The mechine adopts the articulated beam-frame so as to make easy maintenance. The operation cab with 3-level shock absorber and sealed noise-proof provides the operator with comfortable and safe working condition.
Main technical specification
　 YZ16JC YZ18JC YZ20JC
Working mass(Kg) 16000 18000 20000
Module mass on front drum(Kg) 7700 8700 9500
Module mass on rear drum(Kg) 8300 9300 10500
Static liner load(N/cm) 348 390 427
Driving speed(Km/h) 　
　　1st sp 2.86 2.86 2.86
　　2nd sp 5.3 5.3 5.3
　　3rd sp 9.7 9.7 9.7
Gradeability(%) 30 30 30
Min. turning radius(mm) 6500 6500 6500
Min.clearance(mm) 385 385 365
Max. shell protuberating(mm) 120 120 120
Steering angle ±32° ±32° ±32°
Swinging angle ±11° ±11° ±11°
Vibrating frequency(Hz) 28 28 28
Norminal amplitude(high/low)(mm) 2.0/1.0 2.1/1.1 2.0/1.1
Centrifugal force@high/low amp(kN) 300/150 330/190 350/200
Vibrating drum diameter(mm) 1523 1523 1523
Vibrating drum width(mm) 2179 2179 2179
Engine 　
　　Model Shanghai diesel D6114 D6114 D6114
　　Type Water cooling, pressurized
　　Max.power@1800r/min(kW) 115 115 125
Contour size 　
　　Total length(mm) 5720 5720 5783
　　Total width(mm) 2410 2410 2410
　　Total height(mm) 3160 3160 3160
YZ16JC,YZ18JC,YZ20JC Vibratory roller can be equipped with the following in case of need:
　　* Plateau type engine
　　* YZK16J、YZK18J，padfoot drum can be selected。

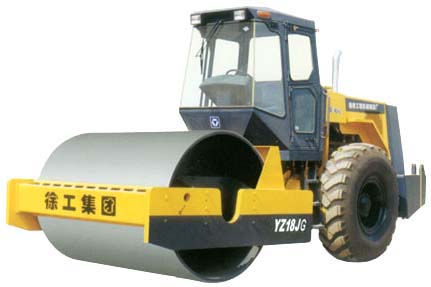

YZ18JG Single-Drum Vibratory Roller
　　
　　YZ18JG vibratory roller is a heavy-duty self-propelled vibratory roller, which is mainly suited for compaction during the engineering construction of high-class highways, airports, harbours, dams and industrial yards. Also lends itself to be used on the large-scale base course, sub-base and embankment fill compaction.
YZ18JG vibratory roller applies the following described characteristics on its structure and performance: articulated beam-frame, power shift gearbox, 3-level electrical shifter on forward and reverse, closed hydraulic vibrating system, 3-level vibration damper and hydraulic articulated steering system, etc.
　　Working mass(Kg)：18000
　　Mass distributed on front drum(Kg)：8700
　　Mass distributed on rear drum (Kg)：9300
　　Static linear load(N/cm)：390
　　Speed range(Km/h)
　　　　I speed：2.86
　　　　II speed：5.3
　　　 III speed：9.7
　　Theoretical gradeability(%)：30
　　Min. outer turning radius(mm)：6500
　　Min. ground clearance(mm)：385
　　Max. shell protuberating (mm)：120
　　Steering angle：±34°
　　Swinging angle：±11°
　　Vibrating frequency (low/high)(Hz)：28
　　Nominal amplitude @ low/high fre.(mm)：2.1/1.0
　　Centrifugal force @ high/low amp.(kN)：330/190
　　Vibrating drum diameter(mm)：1523
　　Vibrating drum width(mm)：2178
　　Engine
　　　　Model：D6114ZG
　　　　Type： water-cooling,supercharged
　　　　Max.power @ 1800r/min(kW)：115
　　 Rated speed(r/min)：1800
BD10 power gearbox
　　　　Pressure(Mpa)：1.6
　　Total length(mm)：5610
　　Total width(mm)：2370
　　Total height(mm)：3160




YZ18JD Single-Drum Vibrtory Roller

Brief Introduction
　　　YZ18JD vibratory roller is a heavy-duty self-propelled vibratory, which is mainly used for compaction during the engineering construction of high-class highways, airports, harbours, dams and industrial yards. Also lends itself to be used on the large-scale base course, sub-base and embankment fill compaction.
YZ18JD vibratory roller adopts the following described characteristics on its structure and performance: articulated beam-frame, mechanical 3-gear gearbox, open hydraulic vibrating system, 3-level vibration damper and hydraulic articulated steering system, etc.
Main Technical Specification
　　Working mass(Kg)：18000
　　Mass distributed on front drum(Kg)：8700
　　Mass distributed on rear drum(Kg)：9300
　　Static linear load(N/cm)：390
　　Speed range(Km/h)
I speed：2.86
　　　　II speed：5.3
　　　 III speed：9.7
　　Theoretical gradeability(%)：30
　　Min. outer turning radius(mm)：6500
　　Min. ground clearance(mm)：385
　　Max. shell protuberating(mm)：120
　　Steering angle：±34°
　　Swinging angle：±11°
　　Vibrating frequency (low/high)(Hz)：28
　　Nominal amplitude @ low/high fre.(mm)：2.0
　　Centrifugal force @ high/low amp.(kN)：330
　　Vibrating drum diameter(mm)：1523
　　Vibrating drum width(mm)：2178
　　Engine
　　　　Model：YC6108ZG7B
　　　　Type： water-cooling, supercharged
　　　　Max.power @ 2500r/min(kW)：110
　　Rated speed(r/min)：18000
　　Total length(mm)：5610
　　Total width(mm)：2370
　　Total height(mm)：3160

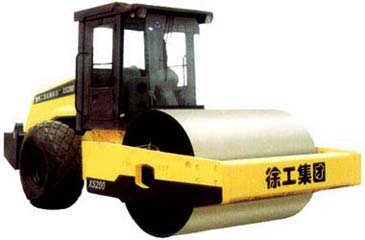

XS190、XS200、XS220 Single-Drum Vibratory Roller


Brief Introduction
　　XS190,XS200 and XS220 vibratory roller is a super heavy self-propelled single-drum vibratory roller, which is mainly suited for compaction during the engineering construction of high-class highways, airports, harburs, dams and industrial yards, also lends itself to be used on the large-scale base course, sub-base and embankment fill compaction. The machine has original imported high-power engine and special hydraulic driving system, which can make the machine fit with construction work better in areas of plateau and desert.
XS190,XS200 and XS220 series of vibratory roller takes its main components and system according to international style.It has following described advantages in its structure and performance: four-level infinitely speeding of closed hydraulic driving system, double frequency and double amplitude, on-line density inspecting system, wholly closed air-conditioned driving cab, ROPS sytem, the operating system which fulfills the principle of human engineering,suspensional seat, hydraulic articulated steering and the configuration of stream line.
Main Technical Specification
Model XS190 XS200 XS220
Working mass(Kg) 18900 20100 22500
Mass distributed on front drum(Kg) 12800 13350 15100
Mass distributed on rear drum(Kg) 6100 6750 7400
Static linear load(N/cm) 589 627 695
Speed range(Km/h) 0－12
Theoretical gradeability (%) 55 50 50
Min.outer turning radius(mm) 6870 6870 6870
Min. ground clearance(mm) 450 450 450
Max.shell protuberating(mm) 150 150 150
Steering angle ±30° ±30° ±30°
Swinging angle ±9° ±9° ±9°
Vibrating frequency (low/high)(Hz) 28/35 28/35 28/35
Nominal amplitude @ low/high fre.(mm) 1.80/0.78 1.90/0.83 2.0/0.96
Centrifugal force @ low fre. high amp./high fre. low amp.(kN) 358/260 395/270 415/280
Vibrting drum diameter(mm) 1600 1600 1600
Vibrating drum width(mm) 2130 2130 2130
Engine 　
　　Model Deutz BF6L913C CUMMINS 6CTA8.3
　　Type Air-cooling supercharged Water-cooling
　　Max. power @ 2500r/min(kW) 141 141 179
Total length(mm) 6295 6295 6295
Total width(mm) 2430 2430 2430
Total height(mm) 3188 3188 3188
Options for XS190,XS200 and XS220 could be available at request of the customers:
　　* Imported compactionmeter
　　* PD drum




RF40、RF60、RF80、RF100 Slurry-Sealing Machine

Brief Introduction
　　This kind of machine is mainly applied to road maintenance and repairs for asphalt and cement & concrete road surface and used for paving emulsified asphalt and modified emulsification asphalt to seal the road surface.
　　* Aggregate System: (1)side aggregate silo with 50°tilt, and with soft sealing rubber between the materials conveyors; (2) aggregate conveying: continuous belt conveying with infinite variable speed, be easy and convenient to mount or dismount; (3) vibrator: be fixed on the vibrating mechanism in aggregate silo, be controlled electrically;(4)measuring: be of adjusting-valve scale controlled by hydraulic system.
　　* Water System: (1) the water tank with 3-bar pressure capacity, and with checking-hole and level indication; (2)the water pipe of being corrosion-proof and be fixed with filter; (3) with flow-adjusting valve and flow gauge to control water flow volume; (4) be fixed with centrifugal pump of high-speed and high-output; (5)sprinkling system for road surfce; (6) be provided with hand-spray water gun.
　　* Emulsified Asphalt System: (1) asphalt tank with 3-bar pressure capacity, and with checking-hole and level indication; (2) emulsified asphalt pump with large diameter and low rotaion speed, and with special device for protecting the flow of emulsified asphalt, and with infinite variable speed.
　　* Conveying for Fine Materials: (1)tilting material silo; (2) continuous-type 4×2 screw conveyor with running to both right and left controlled by switches; (3) the conveying measurement is controlled by motor rotation.
　　* Addition System: statinless tank with 600L capacity; conveying by depressed pneumatic air from chassis; with flow adjusting-valve and flow gauge to control the addition flow volume.
　　* Mixing System: mixer being of horizontal double-shaft and could be running to both right and left, with high wear-proof and replaceable mixing tip driven hydraulically; continuously recycling material output controlled by hydraulic system.
　　* Paving System: (1) paving-hopper being of tri-shaft blade type; (2) adjustable paving depth and width; (3) conveying shaft running to both right and left, with infinite variable speed and adjustable blade angle.
Main Technical Specification
Model RF100 RF80 RF60 RF40
Aggregate bin(m3) 10 8 6 4
Emulsion tank(L) 3000 2500 2500 1200
Water tank(L) 2500 2000 2000 1000
Addition container(L) 600 600 300 300
Paving width(m) 2.5－3.5
Mixer Dual shafts
Working speed(km/h) 1.5－3.0
Engine power 47/55.5 47/55.5 47 29

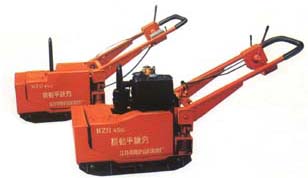

HZR450、HZD450 Vibrating Plate Compactor

　　HZR450/HZD450 vibrating plate compactor is a kind of self-propelled compacting machinery. Its new design comes the first among the same kind of machine in China with its main technical specification and performance being equal to international standards. With good compacting results,the machine could be infinitely adjustable in terms of driving forward/reverse speed and centrifugal force, and it can also realize vibrating compaction when being stationary. This kind of vibrating plate compactor is widely used for compacting building foundation, fill foundation, sidewalk, highways, squares, lanes, yards, plumbing tunnels, and foundation for the areas around the bridge support pillars,etc.It is the necessary and ideal equipment for replacing the "Frog-type" vibrating tamper.
Operating mass Without side plate kg 450
With side plate 470
Compacting plate dimension
（length x width）		 Without side plate mm 570 x 570
With side plate 570 x 530
HZR450
With diesel engine		 Model 　 190F
Power kw 5.88
Rotation speed r/min 2200
HZD450
With electromotor		 Model 　 Y132S2-2
Power kw 7.5
Rotation speed r/min 2900
Vibrating frequency Hz 46
Amplitude mm 2.58
Centrifugal force kN 40
Working speed m/min 0 - 22
Gradeability 　 >= 20%

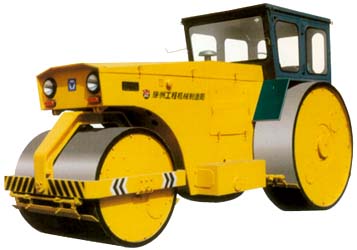

3Y12/15A、3Y18/21 Static Smooth-Drum Roller

Brief Introduction
　　3Y12/15A and 3Y18/21 are of super heavy-duty self-propelled smooth-drum road roller, which are mainly used for compaction work of base course and surface layer of different materials. They are also the ideal equipment for the compaction job of highways, industrial yards and construction fields.
3Y12/15A and 3Y18/21 are mainly featured in 3-gear mechanical driving,ballast increasing or decreasing and hydraulic steering, etc.
Main Technical Specification
Model 3Y12/15A 3Y18/21
Min. operating mass(Kg) 12000 18000
Max. operating mass(Kg) 15000 21000
Max. linear load of rear drum(N/cm) 960 1170
Driving speed
　　Ⅰspeed(Km/h) 2 2.3
　　Ⅱ speed(Km/h) 4 4.4
　　Ⅲ speed(Km/h) 7 7.9
Theoretical gradeability(%) 20 20
Min. outer turning radius(mm) 6500 6500
Min. ground clearance(mm) 320 420
Compacting width(mm) 2120 2320
Compaction overlapping(mm) 100 100
Engine
　　Model 4135k-2b 4135Ak-2a、YC6108G
　　Type Water-cooling, natural air
　　Max. power @2400r/min(kW) 59 73.5
Contour dimension
　　Total length(mm) 4910 5150
　　Total width(mm) 2120 2320
　　Total height(mm) 2800 3010

3Y12/15A and 3Y18/21 road roller can be equipped with the following item according to the customers' request:
　　* canopy




YL16C、YL20C Pneumatic Roller

Introduction
　　YL16C/YL20C Pneumatic roller is of self-propelled roller,which is mainly applied to compaction work for base ,sub-base, fill and asphalt surface. It is the ideal and necessary compacting equipment for constructing high-grade express highway,airport,seaport,embankment and industrial buildings。And this type of road roller has super compaction performance much superior than the other compacting machines, especially when it is used to compact the asphalt surface of high-grade motorway.
YL16C/YL20C pneumatic roller can obtain excellent compaction performance without any " false rolling" when being used for compacting the sandy soil, combination soil and clay by increasing/desreasing its balance weight, changing the inflation pressure of tyres and adjusting the rolling pressure of tyres. Due to the flexible compacting of tyres on the rolling surface, the road surface is even and dense after being compacted by the machine.
This type of road roller adopts fully hydraulic steering, pneumatic & hydraulic braking and 3-gear transmission system, with fast speed and great flexibility and being very easy to move upon different jobsites. This type of road roller is equipped with water pump which can make sprinkling to large area and spray water onto tyre surface; and also equipped, on both front and rear tyres, with scrappers which are uesed to clean the tyres and to improve the compaction quality.
This type of pneumatic roller also has spacious and good-view driving cab and ROPS as option for the customers.
　　main Technical specification
Type YL16C YL20C
Minimum Working Mass(Kg) 9000 16000
Maximunm Working Mass(Kg) 16000 20000
Driving speed 　
　　1st sp(Km/h) 3 4
　　2nd sp(Km/h) 6 7.5
　　3rd sp(Km/h) 12 14
　　4th sp(Km/h) 2.4 2.4
Gradeability(%) 20 20
Min. turning radius(mm) ≤7500 8000
Min. clearance(mm) ≥250 ≥280
Rolling width(mm) 2000 2250
Overlapping(mm) 40 45
Ground pressure(Kpa) 160－340 160－340
Tyres 　
　　Specification 900-20-12 11.00-20(Smooth)
　　Quantity Front 4 Rear 5
Engine 　
　　Model 4135K-2d 4135AK-4b
　　Type 水冷
　　Rated power 1800r/min(kW) 59 73.5
　　Rated speed(r/min) 1500 1500
Outline demensions 　
　　Total length(mm) 4760 5090
　　Total width(mm) 2090 2350
　　Total height(mm) 3170 3240

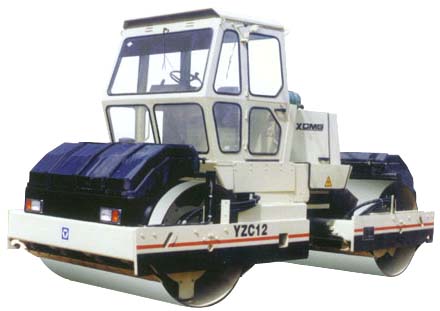

YZC12 Tandem Vibratory Roller

YZC12 ia a heavy-duty tandem vibratory roller, which is mainly used for asphalt-concrete and cement-concrete surface compaction during the engineering construction of high & middle-class highways, airports, parking areas and industrial yards,etc. Also lends itself to be used on the large or middle-scale base course, sub-base and embankment fill compaction.
　　YZC12 vibratory roller adopts fully hydraulic transmission and fully electrical-hydraulic control. The main components and system are purchased from international manufacturers. This type of machine is featured in variable-infinite- speed driving, dual-amplitude vibrating, fully-articulated steering,etc.
　　Working mass Kg：12000
　　Module mass on front drum(Kg)：6000
　　Module mass on rear drum (Kg)：6000
　　Static linear load on front drum(N/cm)：276
　　Static linear load on rear drum(N/cm)：276
　　Speed range(Km/h)：0－10
　　Theoretical gradeability(%)：30
　　Min. outer turning radius(mm)：6000
　　Min. ground clearance(mm)：340
　　Max. shell protuberating(mm)：75
　　Steering angle：±40°
　　Swinging angle：±12°
　　Vibrating frequency (low/high)(Hz)：45/48
　　Nominal amplitude @ low/high fre.(mm)：0.8/0.4
　　Centrifugal force @ high/low amp.(kN)：140/80
　　Vibrating drum diameter(mm)：1250
　　Vibrating drum width(mm)：2130
　　Engine
　　　　Model：Deutz F6L912
　　　　Type：Air-cooling, aspiration automatically
　　　　Max. power @ 2500r/min(kW)：80
　　Total length(mm)：5330
　　Total width(mm)：2300
　　Total height(mm)：3170
Fuel tank capacity(L)：400
　　Water tank capacity(L)：2*600

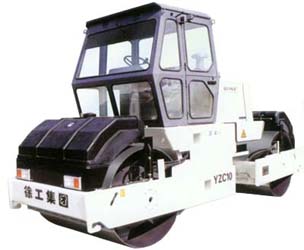

YZC7/YZC10 Tandem Vibratory Roller

Introduction
　　YZC7/YZC10 tandem vibratory roller is of middle-heavy,self-propelled double drum vibratory roller,mainly applied to compaction for the asphalt concrete road surface of the high-grade motorway,airport,parking area and industrial yard, and also being used for the large-scale base,sub-base and embankment fill compaction.
YZC7/YZC10 vibratory roller adopts the fully hydraulic transmission and fully electrical-hydraulic control,with main components purchased from international manufacturer. This type of machine is featured in variable infinite speed for driving,infinite frequency-adjusting vibrating,dual amplitude, crab-walking,adjustable water sprinkling,spring-tensioned scrapper,etc.
　　Main Technical Specification
　 YZC7 YZC10
Working mass(Kg) 7160 10000
Mass on front drum(Kg) 3630 5000
Mass on rear drum(Kg) 3530 5000
Static linear load on front drum (N/cm) 247 292
Static linear load on rear drum(N/cm) 240 292
Speed range(Km/h) 0－10.5 0－10
Theoretic gradeability(%) 33 30
Min. outer turning radius(mm) 4800 6000
Min. ground clearance(mm) 260 330
Max. shell protuberating(mm) 75 75
Steering angle ±38° ±40°
Swinging angle ±11° ±12°
Vibrating frequency(Hz) 48 48
Nominal amplitude (high/low)(mm) 0.71/0.35 0.8/0.4
Centrifugal force@48Hz high/low amp.(kN) 71/35 120/60
Vibrating drum diameter(mm) 1040 1220
Vibrating drum width(mm) 1450 1680
/Engine 　
　　Model Deutz F4l912 Deulz F6l912
　　Type Air-coolong,aspiration automatically
　　Max. power@2400r/min(kW) 51 80
Total length(mm) 4545 5330
Total width(mm) 1600 1830
Total height(mm) 2930 3030
Fuel tank capacity(L) 140 260
Water tank capacity(L) 2×325 2×500
Following options for the YZC10 could be availabe at the request of customers:
　　* Cummins B5.9-C water-cooling, supercharged; power 113kW@2500r/min。
Following options for YZC7/YZC10 could be availabel at the request of customers:
　　* ROPS and FOPS (180mm increased for total height).
　　* Cab + ROPD and FOPS (180 increased for total height).




YZ12 Single Drum Vibratory Roller

Introduction
　　YZ12 series vibratory roller is one kind of medium self-propelled vibratory roller. It is mainly used for the compacting work of infrastructure,sub-base and backfilling,which combined of sorts of materials. It is the ideal compacting machine for the building of high-level highway,airport,seaport,dam,and industrial yards.
　　All of YZ12 series vibratry roller's main components and system are in line with international standard,with characteristics and constructions such as: three-gear stepless speed drive,three independant brake system,three-level vibratory reductions,as well as hydraulic conjoint steering,etc.
　　YZ12 series includes three types: double drive and smooth drum,double drive and welded blocked wheel(DB as said in following table),as well as double drive and cover-shaped blocked wheel(DCB as said in following table). The changing work between the smooth and blocked drums is very simple.
Main technical specification
　 Double drive
Smooth drum
YZ12		 Double drive
Welded blocked
drum YZK12		 Double drive padfoot drum
without cover With cover
YZK12A
Working mass(Kg) 11500 12200 10900 12250
Module mass on front drum(Kg) 7000 7700 6400 7750
Module mass on rear wheels(Kg) 4500 4500 4500 4500
Static liner load(N/cm) 322 / 295 /
Speed range(Km/h) 0－9 0－9 0－9 0－9
Gradeability(%) 45 45 45 45
Min.outer turning radius(mm) 5900 5900 5900 5900
Min. clearance(mm) 400 450 395 450
Max.shell protuberating(mm) 300 300 300 300
Steering angle ±38° ±38° ±38° ±38°
Swing angle ±9° ±9° ±9° ±9°
Vibrating frequency(high/low)(Hz) 30 29 29 29
Norminal amplitude(high/low)(mm) 1.50/0.73 1.52 2.02/1.01 1.50
Centrifugal force@high/low amplitude(kN) 254/123 260 260/130 260
Vibrating drum diameter(mm) 1550 1735 1523 1735
Vibrating drum width(mm) 2134 2134 2134 2134
Engine 　 　 　 　
　　Model Deutz F6L912
　　Type Air-cooling,aspiration automatically
　　Max.power@2400r/min(kW) 80 80 80 80
Total length(mm) 5380 5520 5520 5520
Total width(mm) 2540 2540 2540 2540
Total height(mm) 2960 3010 2960 3010
YZ12 roller can be equipped with the following in case of need：
　　* Cummins B 5.9-C water cooling,turbo-charged power 113kW @ 2500r/min。
　　* Rockwell driving axle * Fairfield reducer。
　　* ROPS and FOPS framwork。（ 70mm higher for total height）
　　* Cabin+FOPS,ROPS framework。（250mm higher in total height）




Single-Drum Vibratory Roller

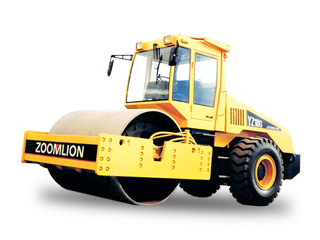

　　ZOOMLION YZ16 vibratory roller is a heavy-duty self-propelled vibratory roller, which is suited for compaction during the engineering construction of high ways, railway, airports, harbors, dams, mine of exposed to the weather and various industrial construction compacting works.
　　YZ16 vibratory roller applies the following characteristics on its structure and performance：full hydraulic, infinitely speeding ,single drum driving, single frequency, double amplitude, articulated steering. It is equipped with excellent compacting effect, high reliability, operation simple, safety, economy and etc.





YZ16


Click it to open new window
FEATURES


   ZOOMLION YZ16 vibratory roller is a heavy-duty self-propelled vibratory roller, which is suited for compaction during the engineering construction of high ways, railway, airports, harbors, dams, mine of exposed to the weather and various industrial construction compacting works.



  YZ16 vibratory roller applies the following characteristics on its structure and performance：full hydraulic, infinitely speeding ,single drum driving, single frequency, double amplitude, articulated steering. It is equipped with excellent compacting effect, high reliability, operation simple, safety, economy and etc.



Performance And Features：



● Using several decades scientific research achievement and design experience of Changsha Research Institute of Construction Machinery of The Ministry of Construction and several national technical patents.



● Great centrifugal force, high amplitude, optimum vibratory data matching , excellent compacting effect and high efficiency.



● Full hydraulic, single drum driving, single frequency and double amplitude.



● Infinitely speeding, operation simple and safety.



● New streamlined designed appearance, excellent rear field of vision, maintenance and service convenient.



● Excellent quality and reasonable price. Compacting effect of full hydraulic roller but  price of mechanical roller.



Specifications


Main Technical Specification
Working mass(kg) 16000
Drum module mass(kg) 7800
Static linear load on drum 356
Durm width ×diameter(mm) Ф1560×2150
Frequency(HZ) 29
Centrifugal force(kN) 320/160
Nominal amplitude(mm) 1.9/0.95
Driving speed(km/h) 0～7
Engine
Model 6BT5.9
Type Water-cooling
Rated power(Kw) 110
Rated speed(r/min) 2300
Gradeability(%) 28
Min outer turning radius(mm) 6250
Steering angle(°) ±32
Swinging angle(°) ±10
Total length(mm) 5920
Total width(mm) 2400
Total height(mm) 3100



YZ18A


Click it to open new window
FEATURES


    ZOOMLION YZ18A heavy-duty vibratory roller is a self-propelled and special use for large-scale foundation compaction of good quality, which is suited for compaction during the engineering construction of high-class high ways, railway, airports, harbors, dams, mine of exposed to the weather and various industrial construction compacting works. Also lends itself to use on the large-scale base course, sub-base and embankment fill compaction..



    YZ18A vibratory roller applies the following characteristics on its structure and performance：full hydraulic, two-level infinitely speeding, double frequency, double amplitude, articulated steering, whole closed air-conditioned driving cab. All the main system and components are purchased from international manufactures. It is equipped with excellent compacting effect, high reliability, operation simple, safety, comfortable, and etc.



Performance And Features：



● Using several decades scientific research achievement and design experience of Changsha Research Institute of Construction Machinery of The Ministry of Construction and several national technical patents.



● Great centrifugal force, high amplitude, optimum vibratory data matching , excellent compacting effect,  and high efficiency.



● Full hydraulic, double driving, two-level infinitely speeding, double frequency and double amplitude.



● Service brake, parking brake and emergency, guarantee the operators safety.



● Hydraulic pumps and motors from Rexroth Co., durm bearings from FAG Co. Germany and engines from Deutz Co., driving axle from DANA Co. America are all original products imported from the word famous companies.



● Whole closed air-conditioned driving cab, electric control, operation simple, safety and comfortable.



● New streamlined designed appearance, excellent- rear field of vision, maintenance and service convenient.
Specifications


Main Technical Specification
Working mass(kg) 18000
Drum module mass(kg) 11800
Static linear load on drum 538
Durm width ×diameter(mm) Ф1600×2150
Frequency(HZ) 28/35
Centrifugal force(kN) 400/282
Nominal amplitude(mm) 2/0.9
Driving speed(km/h) 0～5/0~10
Engine
Model BF4M1013C
Type Water-cooling
Rated power(Kw) 112
Rated speed(r/min) 2300
Gradeability(%) 45
Min outer turning radius(mm) 5250
Steering angle(°) ±32
Swinging angle(°) ±10
Total length(mm) 6200
Total width(mm) 2400
Total height(mm) 3220



YZ18G


Click it to open new window
FEATURES


   ZOOMLION YZ18G heavy-duty vibratory roller is a self-propelled and special use for the construction in high elevation and frigid areas, which is suited for compaction during the engineering construction of high-class high ways, railway, airports, harbors, dams, mine of exposed to the weather and various industrial construction compacting works. All the main system and components are purchased from international manufactures. Also lends itself to use on the large-scale base course, sub-base and embankment fill compaction in high elevation areas.



    YZ18G vibratory roller applies the following characteristics on its structure and performance：full hydraulic, two-level infinitely speeding, double frequency, double amplitude, articulated steering, whole closed air-conditioned driving cab. It is equipped with excellent compacting effect, high reliability, operation simple, safety, comfortable, and etc.



  Performance And Features：



● The special vibratory roller is most suitable for the construction in high elevation and frigid areas.



● Using several decades scientific research achievement and design experience of Changsha Research Institute of Construction Machinery of The Ministry of Construction and several national technical patents.



● Great centrifugal force, high amplitude, optimum vibratory data matching , excellent compacting effect,  and high efficiency.



● Full hydraulic, double driving, two-level infinitely speeding, double frequency and double amplitude.



● Service brake, parking brake and emergency, guarantee the operators safety.



● Engines from Deutz Co., hydraulic pumps and motors from Rexroth Co., drum bearings from FAG Co. Germany and driving axle from DANA Co. America are all original products imported from the word famous companies.



● Whole closed air-conditioned driving cab, electric control, operation simple, safety and comfortable.



● New streamlined designed appearance, excellent- rear field of vision, maintenance and service convenient.



● Anti-ultraviolet and ant-thunderbolt devices are installed for the roller.



● The roller passed the performance testing on the plateau of high elevation and high cold areas by Xining Highland Construction Machinery Research Institute and the test demonstrated the machine can meet the operation demands on the plateau areas of which elevation of 4000～5000 meters .Certificate NUMBER：Certificate (2001) 03-004.



Specifications


Main Technical Specification
Working mass(kg) 18000
Drum module mass(kg) 11800
Static linear load on drum 538
Durm width ×diameter(mm) Ф1600×2150
Frequency(HZ) 28/35
Centrifugal force(kN) 378.6/278.5
Nominal amplitude(mm) 1.89/0.89
Driving speed(km/h) 0～5/0~10
Engine
Model BF6L913C
Type Air-cooling
Rated power(Kw) 141
Rated speed(r/min) 2500
Gradeability(%) 45
Min outer turning radius(mm) 5250
Steering angle(°) ±32
Swinging angle(°) ±10
Total length(mm) 6200
Total width(mm) 2400
Total height(mm) 3220



YZ20E


Click it to open new window
FEATURES


  ZOOMLION YZ20E heavy-duty vibratory roller is a self-propelled and special use for large-scale foundation compaction of good quality, which is suited for compaction during the engineering construction of high-class high ways, railway, airports, harbors, dams, mine of exposed to the weather and various industrial construction compacting works. Also lends itself to use on the large-scale base course, sub-base and embankment fill compaction..



  YZ20E vibratory roller applies the following characteristics on its structure and performance：full hydraulic, two-level infinitely speeding, double frequency, double amplitude, articulated steering, whole closed air-conditioned driving cab. All the main system and components are purchased from international manufactures. It is equipped with excellent compacting effect, high reliability, operation simple, safety, comfortable, and etc.



  Performance And Features：



● Using several decades scientific research achievement and design experience of Changsha Research Institute of Construction Machinery of The Ministry of Construction and several national technical patents.



● Great centrifugal force, high amplitude, optimum vibratory data matching , excellent compacting effect,  and high efficiency.



● Full hydraulic, double driving, two-level infinitely speeding, double frequency and double amplitude.



● Service brake, parking brake and emergency, guarantee the operators safety.



● Engines from Deutz Co., hydraulic pumps and motors from Rexroth Co., drum bearings from FAG Co. Germany and driving axle from DANA Co. America are all original products imported from the  world famous companies.



● Whole closed air-conditioned driving cab, electric control, operation simple, safety and comfortable.



● New streamlined designed appearance, excellent- rear field of vision, maintenance and service convenient.
Specifications


Main Technical Specification
Working mass(kg) 20000
Drum module mass(kg) 12600
Static linear load on drum 574
Durm width ×diameter(mm) Ф1600×2150
Frequency(HZ) 28/35
Centrifugal force(kN) 420/263
Nominal amplitude(mm) 2/0.8
Driving speed(km/h) 0～5/0~10
Engine
Model BF6L913C
Type Air-cooling
Rated power(Kw) 141
Rated speed(r/min) 2500
Gradeability(%) 45
Min outer turning radius(mm) 6400
Steering angle(°) ±35
Swinging angle(°) ±10
Total length(mm) 6200
Total width(mm) 2400
Total height(mm) 3220



YZ20F


Click it to open new window



YZ25


  FEATURES


  ZOOMLION YZ25 supper heavy-duty vibratory roller is a self-propelled and special use for large-scale foundation compaction of good quality, which is suited for compaction during the engineering construction of high-class high ways, railway, airports, harbors, dams, mine of exposed to the weather and various industrial construction compacting works. Also lends itself to use on the large-scale base course, sub-base and embankment fill compaction..



   YZ25 vibratory roller applies the following characteristics on its structure and performance：full hydraulic, two-level infinitely speeding, double frequency, double amplitude, articulated steering, whole closed air-conditioned driving cab. All the main system and components are purchased from international manufactures. It is equipped with excellent compacting effect, high reliability, operation simple, safety, comfortable, and etc.



  Performance And Features：



● Using several decades scientific research achievement and design experience of Changsha Research Institute Of Construction Machinery Of The Ministry Of Construction and several national technical patents.



● Great centrifugal force, high amplitude, optimum vibratory data matching , excellent compacting effect,  and high efficiency.





● Full hydraulic, double driving, two-level infinitely speeding, double frequency and double amplitude.



● Service brake, parking brake and emergency, guarantee the operators safety.



● Engines from Deutz Co., hydraulic pumps and motors from Rexroth Co., drum bearings from FAG Co. Germany and driving axle from DANA Co. America are all original products imported from the  world famous companies.



● Whole closed air-conditioned driving cab, electric control, operation simple, safety and comfortable.



● New streamlined designed appearance, excellent- rear field of vision, maintenance and service convenient

Specifications


Main Technical Specification
Operating weight(kg) 25000
Front load mass(kg) 16000
Static linear load on drum(N/m) 729
Durm width ×diameter(mm) Ф1600×2150
Frequency(HZ) 27.5/31
Centrifugal force(kN) 450/300
Nominal amplitude(mm) 2.1/1.1
Driving speed(km/h) 0～4/0~10.8
Engine
Model BF6L913C
Type Air-cooling
Rated power(Kw) 141
Rated speed(r/min) 2500
Gradeability(%) 45
Min outer turning radius(mm) 6400
Steering angle(°) ±35
Swinging angle(°) ±10
Total length(mm) 6200
Total width(mm) 2400
Total height(mm) 3220



YZ18D

FEATURES


    ZOOMLION YZ18D  vibratory roller is a heavy-duty self-propelled vibratory roller, which is suited for compaction during the engineering construction of high-ways, railway, airports, harbors, dams, mine of exposed to the weather and various industrial construction compacting works.





   YZ18D vibratory roller applies the following characteristics on its structure and performance：full hydraulic, infinitely speeding , single drum driving, single frequency, double amplitude, articulated steering. It is equipped with excellent compacting effect, high reliability, operation simple, safety, economy and etc.





   Performance And Features：





● Using several decades scientific research achievement and design of Changsha Research Institute of Construction Machinery of The Ministry of Construction and several national technical patents.





● Great centrifugal force, high amplitude, optimum vibratory data matching, excellent compacting effect and high efficiency.





● Full hydraulic, single drum driving, single frequency and double amplitude.





● Infinitely speeding, operation simple and safety.





● New streamlined designed appearance, excellent rear field of vision, maintenance and service convenient.





● Excellent quality and reasonable price. Compacting effect of full hydraulic roller but  price of mechanical roller.
  Specifications


Main Technical Specification
Working mass(kg) 18000
Drum module mass(kg) 9000
Static linear load on drum 410
Durm width ×diameter(mm) Ф1560×2150
Frequency(HZ) 29
Centrifugal force(kN) 322/161
Nominal amplitude(mm) 1.9/0.95
Driving speed(km/h) 0～7
Engine
Model 6BTA5.9
Type Water-cooling
Rated power(Kw) 125
Rated speed(r/min) 2300
Gradeability(%) 25
Min outer turning radius(mm) 6250
Steering angle(°) ±32
Swinging angle(°) ±10
Total length(mm) 5920
Total width(mm) 2400
Total height(mm) 3220



YZ18

FEATURES


   ZOOMLION YZ18 heavy-duty vibratory roller is a self-propelled and special use for large-scale foundation compaction of good quality, which is suited for compaction during the engineering construction of high-class high ways, railway, airports, harbors, dams, mine of exposed to the weather and various industrial construction compacting works. Also lends itself to use on the large-scale base course, sub-base and embankment fill compaction..





  YZ18 vibratory roller applies the following characteristics on its structure and performance：full hydraulic, two-level infinitely speeding, double frequency, double amplitude, articulated steering, whole closed air-conditioned driving cab. All the main system and components are purchased from international manufacturers. It is equipped with excellent compacting effect, high reliability, operation simple, safety, comfortable, and etc.





   Performance And Features：





● Using several decades scientific research achievement and design experience of Changsha Research Institute of Construction Machinery of The Ministry of Construction and several national technical patents.





● Great centrifugal force, high amplitude, optimum vibratory data matching , excellent compacting effect and high efficiency.





● Full hydraulic, double driving, two-level infinitely speeding, double frequency and double amplitude.





● Service brake, paring brake and emergency, guarantee the operator＇s safety.





● Engines from Deutz Co., hydraulic pumps and motors from Rexroth Co., drum bearings from FAG Co. Germany and driving bridges from DANA Co. America are all original products imported from the world famous companies.





● Whole closed air-conditioned driving cab, electric control, operation simple, safety and comfortable.





● New streamlined designed appearance, excellent rear field of vision, maintenance and service convenient.
Specifications


Main Technical Specification
Working mass(kg) 18000
Drum module mass(kg) 11800
Static linear load on drum 538
Durm width ×diameter(mm) Ф1600×2150
Frequency(HZ) 28/35
Centrifugal force(kN) 400/282
Nominal amplitude(mm) 2/0.9
Driving speed(km/h) 0～5/0~10
Engine
Model BF6L913
Type Air-cooling
Rated power(Kw) 118
Rated speed(r/min) 2500
Gradeability(%) 45
Min outer turning radius(mm) 5250
Steering angle(°) ±35
Swinging angle(°) ±10
Total length(mm) 6200
Total width(mm) 2400
Total height(mm) 3220



YZK18

FEATURES


    ZOOMLION YZK18 vibratory roller is a heavy-duty self-propelled vibratory roller with a padfoot drum. It is primarily used for the compaction of clay and silt material, being a ideal compaction equipment for the engineering construction of high-class high ways, railway, airports, harbors, dams, mine of exposed to the weather and various industrial construction compacting works.





    YZK18 vibratory roller applies the following characteristics on its structure and performance：full hydraulic, two-level infinitely speeding, double frequency, double amplitude, articulated steering, whole closed air-conditioned driving cab. The chevron pattern of the pad provides a smooth surface after compaction. All the main system and components are purchased from international manufacturers. It is equipped with excellent compacting effect, high reliability, operation simple, safety, comfortable, and etc.





   Performance And Features：





● Using several decades scientific research achievement and design experience of Changsha Research Institute of Construction Machinery of The Ministry of Construction and several national technical patents.





● The chevron pattern of the pad provides a smooth surface after compaction.





● Great centrifugal force, high amplitude, optimum vibratory data matching , excellent compacting effect,  and high efficiency.





● Full hydraulic, double driving, two-level infinitely speeding, double frequency and double amplitude.





● Service brake, parikng brake and emergency, guarantee the operators safety.





● Air-cooling engine from Deutz Co., hydraulic pumps and motors from Rexroth Co., drum bearings from FAG Co. Germany and driving axle from DANA Co. America are all original products imported from the world famous companies.





● Whole closed air-conditioned driving cab, electric control, operation simple, safety and comfortable.





● New streamlined designed appearance, excellent- rear field of vision, maintenance and service convenient



Specifications


Main Technical Specification
Working mass(kg) 18400
Drum module mass(kg) 12200
height of padfoot 85
Durm width ×diameter(mm) Ф1600×2150
Frequency(HZ) 28/35
Centrifugal force(kN) 400/282
Nominal amplitude(mm) 1.9/0.85
Driving speed(km/h) 0～5/0~10
Engine
Model BF6L913
Type Air-cooling
Rated power(Kw) 118
Rated speed(r/min) 2500
Gradeability(%) 45
Min outer turning radius(mm) 5250
Steering angle(°) ±35
Swinging angle(°) ±10
Total length(mm) 6200
Total width(mm) 2400
Total height(mm) 3220



YZK20

FEATURES


   ZOOMLION YZK20 vibratory roller is a heavy-duty self-propelled vibratory roller with a padfoot drum. It is primarily used for the compaction of clay and silt material, being a ideal compaction equipment for the engineering construction of high-class high ways, railway, airports, harbors, dams, mine of exposed to the weather and various industrial construction compacting works.





  YZK20 vibratory roller applies the following characteristics on its structure and performance：full hydraulic, two-level infinitely speeding, double frequency, double amplitude, articulated steering, whole closed air-conditioned driving cab. The chevron pattern of the pad provides a smooth surface after compaction. All the main system and components are purchased from international manufacturers. It is equipped with excellent compacting effect, high reliability, operation simple, safety, comfortable, and etc.





   Performance And Features：





● Using several decades scientific research achievement and design experience of Changsha Research Institute of Construction Machinery of The Ministry of Construction and several national technical patents.





● The chevron pattern of the pad provides a smooth surface after compaction.





● Great centrifugal force, high amplitude, optimum vibratory data matching , excellent compacting effect,  and high efficiency.





● Full hydraulic, double driving, two-level infinitely speeding, double frequency and double amplitude.





● Service brake, parking brake and emergency, guarantee the operators safety.





● Air-cooling engine from Deutz Co., hydraulic pumps and motors from Rexroth Co., drum bearings from FAG Co. Germany and driving axle from DANA Co. America are all original products imported from the world famous companies.





● Whole closed air-conditioned driving cab, electric control, operation simple, safety and comfortable.





● New streamlined designed appearance, excellent- rear field of vision, maintenance and service convenient.



Specifications


Main Technical Specification
Working mass(kg) 20400
Drum module mass(kg) 13000
height of padfoot 85
Durm width ×diameter(mm) Ф1600×2150
Frequency(HZ) 28/35
Centrifugal force(kN) 420/263
Nominal amplitude(mm) 1.9/0.75
Driving speed(km/h) 0～5/0~10
Engine
Model BF6L913C
Type Air-cooling
Rated power(Kw) 141
Rated speed(r/min) 2500
Gradeability(%) 45
Min outer turning radius(mm) 6400
Steering angle(°) ±35
Swinging angle(°) ±10
Total length(mm) 6200
Total width(mm) 2400
Total height(mm) 3220



Fully hydraulic vibratory road roller (Tandem)





　　ZOOMLION YZC12 vibratory roller is a double-drum tandem vibratory roller. It is primarily used for the compaction of road bituminous, sand gravel mixtures and RCC material, being a ideal compaction equipment for high ways, municipal roads, airports, park areas and industrial construction compacting works etc.
　　YZC12 vibratory roller applies the following characteristics on its structure and performance：full hydraulic transmission and full electric-hydraulic control, front and rear drums drive, double frequency, double amplitude, crab mechanism. All the main system and components are purchased from international manufacturers. It is equipped with excellent compacting effect, high reliability, operation simple and etc.





YZC12


Click it to open new window



FEATURES


● Using several decades scientific research achievement and design experience of Changsha Research Institute of Construction Machinery of The Ministry of Construction and several national technical patents.



● Optimum vibratory data matching , excellent compacting effect and high efficiency.



● Full hydraulic, double drums driving, articulated steering and crab mechanism.



● Front and rear drums vibrating, double frequency, double amplitude and automatically spray  water.



● Engines from Deutz Co., hydraulic pumps and motors from Rexroth Co., drum bearings from FAG Co. Germany are all original products imported from the world famous companies.



● Spacious and comfortable cab with dual operator seats and dual steering wheels and simple operation.




Specifications


Main Technical Specification
Working mass(kg) 12500
Front module mass(kg) 6300
Rear module mass(kg) 6200
Front static linear load(N/cm) 294
Rear static linear load(N/cm) 289
Durm width ×diameter(mm) Ф1250×2100
Frequency(HZ) 37/45
Centrifugal force(kN) 110/70
Nominal amplitude(mm) 0.8/0.35
Driving speed(km/h) 0-6.5/0-12.8
Engine
Model F6L912
Type Air-cooling
Rated power(Kw) 82.5
Rated speed(r/min) 2500
Gradeability(%) 35
Min outer turning radius(mm) 6450
Steering angle(°) ±36
Swinging angle(°) ±10
Total length(mm) 5620
Total width(mm) 2350
Total height(mm) 3050



YZC12A

  FEATURES


    ZOOMLION YZC12A vibratory roller is a double-drum tandem vibratory roller. It is primarily used for the compaction of road bituminous, sand gravel mixtures and RCC material, being a ideal compaction equipment for  high ways, municipal roads, airports, park areas and industrial construction compacting works etc.



    YZ12A vibratory roller applies the following characteristics on its structure and performance：full hydraulic transmission and full electric-hydraulic control, front and rear drums drive, double frequency, double amplitude, crab mechanism, rotating operator＇s platform. All the main system and components are purchased from international manufacturers. It is equipped with excellent compacting effect, high reliability, operation simple and etc.



  Performance And Features：



      ●Using several decades scientific research achievement and design of Changsha Research Institute of Construction Machinery of The Ministry of Construction and several national technical patents.



      ●Optimum vibratory data matching , excellent compacting effect and high efficiency.



      ●Full hydraulic, double drums driving, articulated steering and crab mechanism.



      ●Front and rear drums vibrating, double frequency, double amplitude and automatically spray water.



      ●Engines from Deutz Co., hydraulic pumps and motors from Rexroth Co., drum bearings from FAG Co. Germany are all original products imported from the world famous companies.



      ●The operator＇s platform with a sun roof can rotate angle from 0° to 180°and operation simple .

  Specifications


Main Technical Specification
Working mass(kg) 12000
Front module mass(kg) 6000
Rear module mass(kg) 6000
Front static linear load(N/cm) 280
Rear static linear load(N/cm) 280
Durm width ×diameter(mm) Ф1250×2100
Frequency(HZ) 37/45
Centrifugal force(kN) 110/70
Nominal amplitude(mm) 0.8/0.35
Driving speed(km/h) 0-6.5/0-12.8
Engine
Model F6L912
Type Air-cooling
Rated power(Kw) 82.5
Rated speed(r/min) 2500
Gradeability(%) 35
Min outer turning radius(mm) 6450
Steering angle(°) ±36
Swinging angle(°) ±10
Total length(mm) 5620
Total width(mm) 2350
Total height(mm) 3000

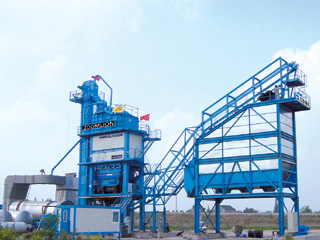

Asphalt mixture plant





　　The LQC240 Asphalt Mixing Plants manufactured by Changsha Zoomlion heavy industry science and technology development CO. ltd. is based on the most advanced technique worldwide. The performance of this device is high efficiency and reliability. And it possesses other advantages such as easy installed, convenient operating, environment-protected, and energy-saved, which won the favor of customers greatly.

FEATURES


     Changsha Zoomlion heavy industry science and technology development CO.ltd. had come into the market was founded by the Research institute of build machine in Changsha.
    It has powerful capability in design and produce. Its products are credibility. Ground on the achievement and experience in past decades’ researches the design on asphalt mixing plants is based on the requirements of customers.
     The LQC240 device can provide high quality in various circumstances which is simultaneous with the world advanced technique. Following is the summarization of performance. The key parts and main bought-in components are all input from world famous company. For example, the electric components of SCHNEID France; the reducer of SEW Germany; the compressor of ATLAS Sweden; the bearing of SKF Sweden; the Pneumatic components of PARKER America; the infrared Thermometer of LAND U.K, etc.
    The modulary construction rationalize the lay-outs that is convenient for installation and maintenance. So it can be put to use during a month. Cold aggregates feeder hoppers adopt optimum cone construct which lead a stable and continued output.
     The grid on top can hold the exceed aggregates in. The silo of sand is equipped vibrator. All feeder belts have baffle. There are monitoring device on all outlets. Drying drum is driven by four drive rollers.
     Its structure is optimal matched with the burner. The temperature of exhaust shouldn’t be above 100oC in normal state. It has precise sealing、efficient heat preserve and good looking. The burner of famous Benninghoven RAX-Jet4.0 has a patent design which lead to a efficient “clean burning”. Special control of Oil-Air-Synchronous Proportion enable a wide range adjustability and a high precision.
      According to the user, it can use diesel oil, heavy oil, residue oil, coal filler or flammable gas, etc. There’s a silencer in the end of the burner. It’s a secure, environment protected and energy-saved equipment. The hot aggregates vibrant screen has a fully enclosed construct. It contains a line inertia screen, prevent resonance spring supports, five screens’ lever, self tensioned which lead to efficiency and easy maintenance.
      The whole lubricating of vibrant bearing enable a longer service life. Hot aggregate’s level is indicated continuous. The discharge gates are designed to a unique structure which enable free opening of the gates. “Two phrase” for feed-in make uniformity and less error of feed. In the mean time, the system can regulate the order to the amount of various aggregates. That prevent the wait phenomenon and keep the veracious feed. The sensors of weighing system is importation. Weighing system can compensate errors automatic. And the SMA of additional is obligated. The mixer has a structure of twin motor driving twin horizontal shaft. The plentiful percentage is 53%. Filler and asphalt are forced in along the shaft. That make a uniformity mixing results and short period. The shape and material of the paddle and the scaleboard is a especial design which is so everlasting for wearing that can service to 300,000t. It has a unique prevent leaking discharge gates, the infrared indicate the temperature of the mixed material. On the top of the mixed material silo, there is a unique prevent eduction equipment.
       The hinged track below convenience lorry getting mixed feed under the mixer. The skip speed is regulated through frequency altering, and its positional errors are below 10mm.The mixed material system has a steely rope to prevent flab. That insure the security.
      The level of the bitumen in storage and the filler in silo can be checked up continuous, and the data is displayed directly in the control center. It’s convenient for operating. The high-power thermal oil heater which contains automatic controlled has a burner which is imported. The textile filter has a high pressure air reverse impulse blow which result a filtering concentration less than 20mg/Nm3.The high-low temprature protector can prolong the service life of filter bag. The negative pressure drum’s auto adjust insure the high-point and lower the energy wastage.
      It has a high efficiency control module of heat. The high temperature part, as dryer drum, hot aggregate bins, mixer, mixed material storage silos, bitumen storage, dust filter, are all equipped with temperature protect layer, that greatly lower heat losing. We adopt the most advanced and steady project in Control system.
     It contains humanistic design, Chinese platform based on windows NT4.0, PLC field BUS, realizing all motion through touched screen. The system display dynamic and control all parts and taches. It can set parameter, administer data, diagnose faults and remote monitoring etc. And it can control though computer automatic、 semi-automatic and manual operating.



  Specifications


Main technical information
Production capacity 240t/h
Condition 4%
temperature of mixed material 160℃
Cold Feed system
Capacity 260t/h
Number of hoppers 5pcs
Volume of each hopper 12m3
Output of each hopper 10-120t/h
Output regulated frequency altering
Drying system
Capacity 240t/h(cold aggregates moisture content: 4%)

220t/h(cold aggregates moisture content: 5%)
Aggregates temperature accuracy ±5℃
Burner model RAX-Jet4.0 Germany
Fuel types diesel oil (basic confect)
Max output of the Burner 2000kg/h
Adjustment ratio 1:8
Consumption of fuel oil ≤6.2kg/t mixed material
Cold aggregates moisture content 5%,temperature of mixed material is 160℃)
Screen and Mixing System
Capacity of hot aggregate elevator 260t/h
Screen area 36 m2/5 lever
Screening capacity 260t/h
Number of hot aggregate bins 5+1 overflow silo
Total capacity of hot aggregate bins 80t/5 silo
Level of Hot Aggregate continuous electronic indication
Mixer capacity 3000kg
Mixing cycle time 42-45s
Weighing accuracy
aggregates ≤±0.5%
Filler ≤±0.3%
Asphalt ≤±0.2%
Filter system
Capacity 80000Nm3/h
Filter area 950m2
Dust concentration of exhaust gas ≤20mg/Nm3
Filler Feed system
Capacity of Filler silo 2×40m3
Silo level indicating continuous electronic indication
Capacity of Filler elevator 15t/h
Bitumen system
Capacity of bitumen tank 3×50m3
Tank level indicating continuous electronic indication
Temperature auto control
Capacity of thermal oil heater 700kw(600,000Kcal/h)
Mixed Material storage system
Silo number 2+1 flotsam silo
Silo Capacity 70+80+10t
Skip capacity 3000kg
Windlass control speed regulated by frequency altering
SMA additive system: floccule or granule(optional)
Control system
Mode automatic computer-control
  semi-automatic computer-control,
  manual control
  touched screen operating
  PLC field BUS ,Chinese platform
Noise at control center ≤70dB(A)
Sum power 600kw





All other tractors and implements

Ask us
