ChinaBestProducts Paver

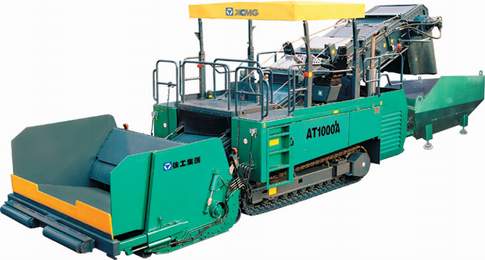

AT1000A Asphalt Concrete Transfer Vehicle




Brief Introduction
　　Special second-time mixer: Ensure the mixed material be mixed sufficiently, so that to improve the uniformity that may be effected by temperature and material. Infrared ray auto-heated technical be used firstly: Automatically compensate the lost temperature while the mixed material transferring. Also pre-head the cold machine and make sure the material convey system work smoothly.
MAIN TECHNICAL PARAMETER

ltem

Unit

Parameter
Engine Type 　 BF6M1013EC
Rated Output kw 165
Paving Speed m/min 0～18
Traveling Speed km/h 0～3.5
Theoretical Productivity t/h 1000
Hopper Capacity t 12
Hopper Ability t 30
transport Speed m/min 0～50.6
vibratory
frequency		 Hz 0～50
Gradient Ability % 20
Approach angle ° 15
Departure angle ° 13
Weight t 25

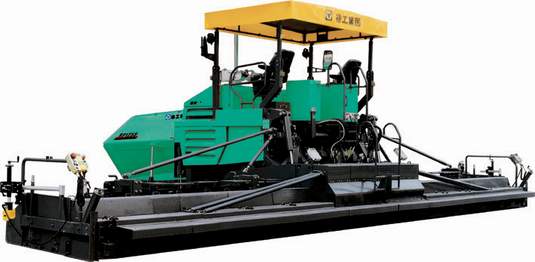

RP1255A Multi-Function Asphalt Concrete Paver



Brief Introduction
　　RP1255A-intelligenlized Asphalt Concrete Paver. Developed with the techniques of State Project of 863-Construction Machinery of intelligent Paver. The new product have high working performance, quality and can be easily controlled by the modern net of communication, information and Micro-electric techniques that be used in Paver field for the first time. The humanlized design and international optimized components supplying, depend on the strong and reliable quality control system of XCMG, ensure the product get high technical performance and the first quality level in the word.
　　The main features for RP1255A Asphalt Concrete Paver:
　　* The new-type CAN-electric controlled engine of Deutz, Germany, auto matically controlled speed ef revolution and oil ejection and Monitor work conditions, Communication and fault diagnosis system, save energy and protect environment;
　　* With CAN-BUS system, has the features of intelligent control for the whole machine, independently controlled single module for each function, com pact structure and high reliability;
　　* The GPS and GSM ensure the remote communication and control by transmitting the necessary data, make it possible that multi-sites work together, be contrOlled together, be monitored in the whole course;
　　* Specialized technique of XCMG for vibration screed -Two ends extendable with dual-tampers and high pressure pulsing compaction,ensures the super high compaction;
　　* Integrated controlled auto-levelling technical, Various levelling de-
vices could be select;
　　* Friendly human-machine interface, humanlized design, keyboard input for the main and auxiliary control desk, touching button and large display screen, to achieve just-in time and completely control of the working condition;
　　* Special ventilatLon and heat exchange structure, four in one ex-changer made in Germany used in power and hydraulic system, the machine can work 24 hours everyday continuously under heavy load at about 50℃ of the work environment;
MAIN TECHNICAL PARAMETER

ltem

Unit

Parameter
Basic Working Width m 3.0
Max working Width m 12.5
Max Paving Thickness mm 350
Paving Speed m/min 0～18
Traveling Speed km/h 0～3.5
Theoretical Productivity t/h 800
Hopper Capacity t 14
Gradient Ability % 20
Smoothness mm/3m 2
Slope Leveling Tolerance % ±0.02
Engine Type 　 BF6M1013EC
Rated Output kw 165
Speed rpm 2300
Tank Capacity L 270
Weight t 22～32
Overall Dimension mm 6731×3000×3850




RP802 Multi-Function Asphalt Concrete Paver



Brief Introduction
　　RP802 Multi-function Road Paver is a construction machine mainly used for the paving project on the road base and surface for highway of various kind of material. This type of machine is the first one to have the most advanced technology, such as computer –controlling system, sonic sensor, electric auto-leveling system, temper and electric-heat, Which makes the machine features with the same quality and reliability as that of the imported machine. Therefore, RP802 becomes the ideal equipment for the paving job on stabilized soil for road base and base and asphalt concrete for road surface.
　　The main features for RP802 Multi-Function Asphalt Concrete Pave:
　　* Driving system with control for right and left hand separately; computer-control; auto-control technology for paving with constant speed;
　　* Material level controlled with sonic sensor technology, so as to achieve full proportional even material feeding;
　　* Auto-leveling system with electric auto-leveling technique;
　　* 575 Extendable(Conventional)Screed with specific technology of temper bars Pusling-vibration and electric-heating;
　　* Centralized lubricating system ensures automatic and even lubricant feeding to bearings in high temperature;
　　* Adopted with an advanced, mature and reliable Deutz BF4M1013C Water-cooling Diesel Engine, with a strong power;
　　* Traveling crawlers with large contacting surface ensure safe and reliable working performance even on poor conditioned roads;
　　* Distributing auger, material distributing bottom plate and screed bottom plate made of high wearing-resistant alloy and imported wearing-resistant material;
　　* Control panel shows directly and clearly all-working functions, paving traveling speed; and could be mounted either at right or left hand.
　　* The complete machine features with high automation, easy and convenient operation, and excellent construction performance with high efficiently.
MAIN TECHNICAL PARAMETER

ltem

Unit

Parameter
Basic Working Width m 3.0
Max working Width m 8.0
Max Paving Thickness mm 380
Paving Speed m/min 0～14
Traveling Speed km/h 0～3.0
Theoretical Productivity t/h 600
Hopper Capacity t 13
Gradient Ability % 20
Smoothness mm/3m 3
Engine Type 　 BF4M1013C
Rated Output km 112
Speed rpm 2300
Generator Power kw 20
Weight t 16.5～23.5
Overall Dimension mm 6230×3000×3855

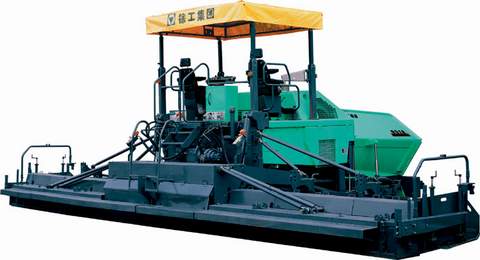

RP951A Multi-Function Asphalt Concrete Paver

Brief Introduction
　　RP951A Multi-Function Paver is a construction machine mainly used for the paving project on the road base and surface for highway of various kinds of material．The machine incorporates the most advanced technology and advantages of material. The machine incorporates the most advanced technology and advantages of the manufacturers’ avroad with similar modals. This type of machine is the first one to have the most advanced technology, such as computer-controlling system, sonic sensor, electric auto-leveling system，breakdown self-diagnose，dual-temper vibration, which makes the machine features with the advantages from many other manufacturers to make the complete machine working at low speed, uniform material flow, high pre-compaction good smoothness, easy and convenient operation. Therefore，RP951 becomes the ideal equipment for the paving job on stabilized soil for road base and asphalt concrete for road surface．
　　The main features for RP951 Multi-Function Paver
　　* Driving system with control for right and left hand separately; computer-control; auto-control technology for paving with constant speed;
　　* 4 sets of separate full hydraulic closed transmission adopted on material distribuing right and left hand; material level controlled with sonic sensor technology, so as to achieve full pooportional even material feeding;
　　* Material distributing right and left hand can move up and down expediently, so as to adapt the different paving thickness and increase material prereel complete uniformity;
　　* Auto-levelling system with electric auto-levelling technigue;
　　* Screed with specific technology of dual temper bars and high pressure pulse vibrating and electric-heating;
　　* Centralized lubricating system ensures automatic and even lubricant feeding to bearings in high temperature;
　　* Adopted with an advanced, mature and reliable Deutz BF6M1013E Water-cooling Diesel Engine, with a strong power;
　　* Travelling crawlers with large contacting surface ensure safe and reliable working performance even on poor conditioned roads;
　　* Distributing auger, material distributing bottom plate and screed bottom plate made of high wearing-resistant material;
　　* Control panel shows directly and clearly all working functions, paving, traveling speed; and could be mounted either at right or left hand ;
　　* Mobile or contact less sonic sensor auto-leveling reference beam could be available as an option.
MAIN TECHNICAL PARAMETER
ltem  Unit  Parameter
Basic Working Width m 3.0
Max working Width m 9.5
Max Paving Thickness mm 350
Paving Speed m/min 0～18
Traveling Speed km/h 0～2.4
Theoretical Productivity t/h 700
Hopper Capacity t 14
Gradient Ability % 20
Smoothness mm/3m 3
Slope Leveling Tolerance % ±0.02
Engine Type 　 BF6M1013
Rated Output/Speed kw/rpm 133/2300
Tank Capacity L 270
Generator Power kw 28
Weight t 21～28.6
Overall Dimension mm 6759×3000×3850

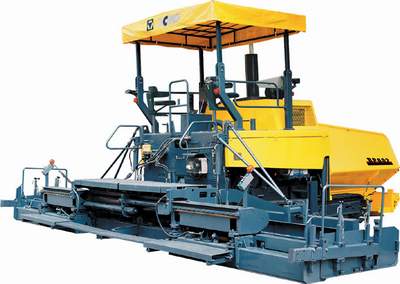

RP602 Multi-Function Asphalt Concrete Paver



Brief Introduction
　　RP602 Multi-function Road Paver is a construction machine mainly used for the paving project on the road base and surface for highway of various kind of material. This type of machine is the first one to have the most advanced technology, such as computer –controlling system, sonic sensor, electric auto-leveling system, temper and electric-heat, Which makes the machine features with the same quality and reliability as that of the imported machine. Therefore, RP602 becomes the ideal equipment for the paving job on stabilized soil for road base and base and asphalt concrete for road surface.
　　The main features for RP602 Multi-Function Asphalt Concrete Pave:
　　* Driving system with control for right and left hand separately; computer-control; auto-control technology for paving with constant speed;
　　* Material level controlled with sonic sensor technology, so as to achieve full proportional even material feeding;
　　* Auto-leveling system with electric auto-leveling technique;
　　* Screed with specific technology of dual temper bars and electric-heating;
　　* Centralized lubricating system ensures automatic and even lubricant feeding to bearings in high temperature;
　　* Adopted with an advanced, mature and reliable Deutz BF4M1013C Water-cooling Diesel Engine, with a strong power;
　　* Distributing auger, material distributing bottom plate and screed bottom plate made of high wearing-resistant alloy and imported wearing-resistant material;
　　* Control panel shows directly and clearly all-working functions, paving traveling speed; and could be mounted either at right or left hand.
　　* The complete machine features with high automation, easy and convenient operation, and excellent construction performance with high efficiently.
MAIN TECHNICAL PARAMETER

ltem

Unit

Parameter
Basic Working Width m 2.5
Max working Width m 6.0
Max Paving Thickness mm 380
Paving Speed m/min 0～14
Traveling Speed km/h 0～3.0
Theoretical Productivity t/h 400
Hopper Capacity t 13
Gradient Ability % 20
Smoothness mm/3m 3
Slope Leveling Tolerance %　 ±0.02
Engine Type 　 BF4M1013C(Deutz)
Rated Output kw 112
Speed r/min 2300
Generator Power kw 20
Weight t 15.8～21.5
Overall Dimension mm 6230×2500×3855

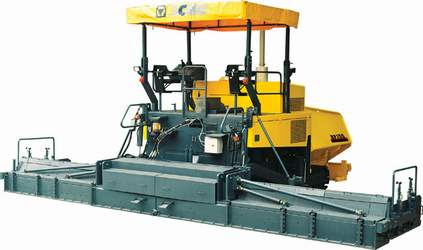

RP755 Multi-Function Asphalt Concrete Paver



Brief Introduction
　　RP755 Multi-function Road Paver is a construction machine mainly used for the paving project on the road base and surface for highway of various kind of material. This type of machine is the first one to have the most advanced technology, such as computer –controlling system, sonic sensor, electric auto-leveling system, temper and electric-heat, Which makes the machine features with the same quality and reliability as that of the imported machine. Therefore, RP755 becomes the ideal equipment for the paving job on stabilized soil for road base and base and asphalt concrete for road surface.
　　The main features for RP755 Multi-Function Asphalt Concrete Pave:
　　* Driving system with control for right and left hand separately; computer-control; auto-control technology for paving with constant speed;
　　* Material level controlled with sonic sensor technology, so as to achieve full proportional even material feeding;
　　* Auto-leveling system with electric auto-leveling technique;
　　* Screed with specific technology of dual temper bars and electric-heating;
　　* Centralized lubricating system ensures automatic and even lubricant feeding to bearings in high temperature;
　　* Adopted with an advanced, mature and reliable Deutz BF4M1013C Water-cooling Diesel Engine, with a strong power;
　　* Distributing auger, material distributing bottom plate and screed bottom plate made of high wearing-resistant alloy and imported wearing-resistant material;
　　* Control panel shows directly and clearly all-working functions, paving traveling speed; and could be mounted either at right or left hand.
　　* The complete machine features with high automation, easy and convenient operation, and excellent construction performance with high efficiently.
MAIN TECHNICAL PARAMETER

ltem

Unit

Parameter
Basic Working Width m 3.0
Max working Width m 7.5
Max Paving Thickness mm 380
Paving Speed m/min 0～14
Traveling Speed km/h 0～3.0
Theoretical Productivity t/h 600
Hopper Capacity t 13
Gradient Ability % 20
Smoothness mm/3m 3
Slope Leveling Tolerance %　 ±0.03
Engine Type 　 D6114ZG1B(shanghai)/BF4M1013C(Deutz)
Rated Output kw 140 112
Speed r/min 2400 2300
Generator Power kw 20
Weight t 15.5～23.5
Overall Dimension mm 6130×3000×3855

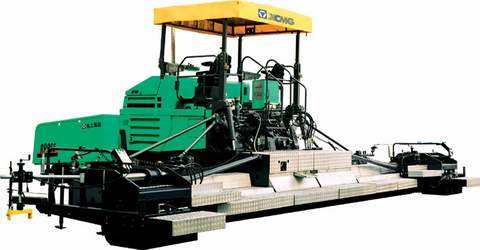

RP955 Multi-Function Asphalt Concrete Paver

Brief Introduction
　　RP955 Asphalt Concrete Paver is a construction machine mainly used for the paving project on the road base and surface for highway of various kinds of material. The machine incorporates the most advanced technology and is the first one to have the most advanced technologies, such as computer-controlling system, digital super sonic sensor, electric auto-levelling system, breakdown self-diagnose, dual-tamper vibration, which makes the machine features with the advantages from many other manufacturers to make the complete machine reaching the current advanced level of the world. All the key parts are purchased from international manufacturers to ensure the complete machine with the same quality and reliability as that of the imported machin. Therefore, RP955 becomes the ideal equipment for the paving job on stabilized soil for road base and asphalt concrete for road surface．
　　The main features for RP955 Asphalt Concrete Paver are:
　　* Driving system with control for right and left hand separately; computer-control; auto-control technology for paving with constant speed;
　　* 4 sets of separate full hydraulic closed transmission adopted on material distributing right and left hand ; material level controlled with super sonic sensor technology, so as to achieve full proportional even material feeding;
　　* Material distributing right and left hand can move up and down expediently, so as to adapt the different paving thickness and increase material prereel complete uniformity;
　　* Screed with specific technology of dual tamper bars and hith pressure pulse vibrating and electric-heating;
　　* Adopted with an advanced, mature and reliable Deutz BF6M1013E Water-cooling Diesel Engine, with a strong power;
　　* Distributing auger, material distributing bottom plate and screed bottom plate made of high wearing-resistant alloy and imported wearing-resistant material;
　　* Control panel shows directly and clearly all working functions, paving, traveling speed; and could be mounted either at right or left hand;
　　* Mobile or contactless sonic sensor auto-levelling reference beam could be available as an option;
　　* Three types of screeds can be adopted; one is hydraulic extensible with single tamper and double-impact bars, another is Mechanical extensible with double tempers and pulse vibrator or high pressure pulse vibrator.
MAIN TECHNICAL PARAMETER
ltem 单位 Unit 参数 Parameter
Basic Working Width m 3.0
Max working Width m 9.5
Max Paving Thickness mm 350
Paving Speed m/min 0～18
Traveling Speed km/h 0～2.4
Theoretical Productivity t/h 700
Hopper Capacity t 14
Gradient Ability % 20
Smoothness mm/3m 2
Slope Leveling Tolerance % ±0.02
Engine Type 　 BF6M1013E
Rated Output kw 137
Speed rpm 2300
Tank Capacity L 270
Generator Power kw 28
Weight t 21.3～28.6
Overall Dimension mm 6731×3000×3850

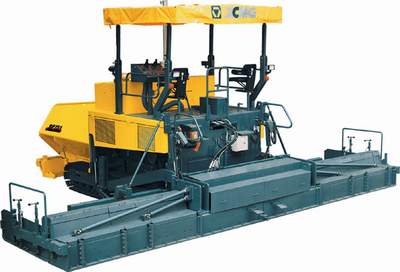

RP751 Multi-Function Road Paver
Brief Introduction
　　* This type of rp751 paver is widely used for paving road base and surface, suitable for paving asphalt concrete and stabilized materials. It is an ideal equipment for paving all grades of roads.
　　* Driving system with fully hydraulic driven and electronic control;
　　* Material level controlled with sonic sensor technology;
　　* Auta-level~ing system with electric auto-levelling technigne;
　　* Scrod with specific technology of dual temper barn and electric heating;
　　* Centralized lubricating system ensures automatic and even lubricant feeding to bearing in high temperature;
　　* Adopted with an advanced, mature and reliable D6114ZG1B or Deutz BF4M1013C
Watecooling Diesel Engine, with a strong power;
　　* Travelling crawlers with large contacting surface ensure safe and reliable working
performance even on pllr conditioned roads;
　　* Distributing auger, matedal distributing bottom plate and acreed boffom plate made
of high wearing distributing bottom plate and scrod bottom plate made of high wearing
resistant alloy and imported wearing-resistant material;
　　* Contel panel shews directly and cleaay all working functions, paving, travelling
speed; and could be mounted either at right or left hand.
MAIN TECHNICAL PARAMETER
ltem Unit Parameter
Basic Working Width m 3.0
Max working Width m 7.5
Max Paving Thickness mm 380
Paving Speed m/min 0～10
Traveling Speed km/h 0～3.5
Theoretical Productivity t/h 600
Hopper Capacity t 13
Gradient Ability % 20
Smoothness mm/3m 3/5
Slope Leveling Tolerance % ±0.03
Engine Type 　 D6114ZG1B(shanghai)/BF4M1013C(Deutz)
Rated Output kw 140 112
Speed rpm 2400 2300
Generator Power kw 20
Tank Capacity L 180
Weight t 16.5～19.5
Overall Dimension mm 6130×3000×3815



RP751W Stabilized Material Road Paver
Brief Introduction
　　* This type lf paver is designed to meet the requirement that working with all kinds of base mmaterials, whith could be an kinds lf base materials, whith could be an kinds of mixture that composed of: lime, coal ash, cement, crushed stones, etc. It could be widely used to all grades of road bases and an optimum equipment for the bases paving.
　　* The pares that could be easily worn are made of antifriction materials with world advanced level and thus improve the reliability. The screeds are supplied with mechanical adjusted extensions. The maximum paving width could be 7.5m, thickness could be 380 mm,productivity could reach 600t/h.
　　* Itcould be easily operated and the automatic leveling system ensures the smoothness and quality.
　　* High pre-compaction by using dual-tamper screed.
MAIN TECHNICAL PARAMETER
ltem Unit Parameter
Basic Working Width m 3.0
Max working Width m 7.5
Max Paving Thickness mm 380
Paving Speed m/min 0～10
Traveling Speed km/h 0～3.5
Theoretical Productivity t/h 600
Hopper Capacity t 13
Gradient Ability % 20
Smoothness mm/3m ≤3/5
Slope Leveling Tolerance % ±0.03
Engine Type 　 D6114ZG1B/BF4M1013C（Deutz）
Rated Output/Speed kw/rpm 140/2300/112/2300
Tank Capacity L 180
Weight t 16.5～19.5
Overall Dimension mm 6130×3000×3815



RP951W Stabilized Material Road Paver
Brief Introduction
　　RP951W Asphalt Concrete Paver is a construction machine mainly mainly used for the paving project on the road base and surface or way of various kinds of material. The machine incorporates the most advanced technology and advantages of the manufacturers’ abroad with similar modals. This type of machine is the first one to have the most advanced technology, such as computer-temper vibration, which makes the machine features with the advantages from many other manufacturers. All the key parts for the machine are purchased from international manufacturers. All the key parts for the machine are purchased from international manufacturers to ensure the complete machine with the same quality and reliability as that of the imported machine. Therefore, RP951W becomes the ideal equipment for the paving job on stabilized soil for road base and asphalt concrete for road surface.
　　The main features for RP951W Asphalt Concrete Paver
　　* Driving system with control for tight and left hand separately; computer-control; auto-control technology for paving with constant speed;
　　* 4 sets of separate full hydraulic closed transmission adopted on material distributing right and left hand; material level controlled with sonic sensor technology;
　　* Material distributing right and left hand can move up and down expediently, so as to adapt the different paving thickness and increase material pretrial complete uniformity;
　　* Auto-leveling system with electric auto-leveling technique;
　　* Screed with specific technology of dual temper bars;
　　* Centralized lubricating system ensures automatic and even lubricant feeding to bearings in high temperature;
　　* Adopted with an advanced, mature and reliable Deutz BF6M1013E Water-cooling Diesel Engine, with a strong power;
　　* Travelling crawlers with large contacting surface ensure safe and reliable working performance even on poor conditioned roads;
　　* Distributing auger, material distributing bottom plate and sc reed bottom plate made of high wearing-resistant alloy and imported wearing-resistant material;
　　* Control panel shows directly and clearly all working functions, paving, traveling speed ; and could be mounted either at right or left hand.
　　* The complete machine features with high automation, easy and convenient operation, and excellent construction performance with high efficiency.
MAIN TECHNICAL PARAMETER
ltem Unit Parameter
Basic Working Width m 3.0
Max working Width m 9.5
Max Paving Thickness mm 350
Paving Speed m/min 0～18
Traveling Speed km/h 0～2.4
Theoretical Productivity t/h 700
Hopper Capacity t 14
Gradient Ability % 20
Smoothness mm/3m 3
Slope Leveling Tolerance % ±0.02
Engine Type 　 D6114ZG1B BF6M1013（Deutz）
Rated Output/Speed kw/rpm 140/2300 133/2300
Tank Capacity L 270
Weight t 22～28.6
Overall Dimension mm 6460×3000×3900

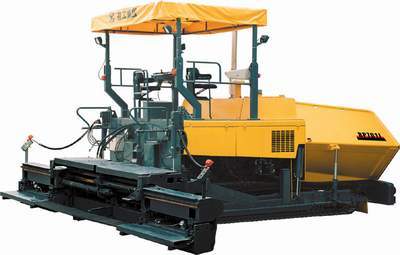

RP601J/701J Multi-Function Asphalt Concrete Paver
Brief Introduction
　　The multipurpose asphalt road paver typed RP601J and RP701J is designed to meat the requirement of large quantity of work and diverse working techniques in domestic market. It is an multi-function and high-performance road construction equipment, especially for the stabilized material working techniques. It can work for base course pavement with stabilized material mixture of lime, coal cash, cement, crushed stones, etc. and asphalt-mixed material for surface course pavement. It is an ideal equipment for base course and surface course pavement of road construction, parking lot, square etc.
　　The main features are：
　　* With water-cooled, turbo-charged engine, typed D6114G1B, made by shanghai Engine group, the strong power, high reliability, high anti-heat performance, power compensation for tableland area make it be used widely;
　　* Large capacity clutch type EQ1141G and automobile gear box that both made by DONGFENG automobile Group, make the big torque storage of transmission system and high reliability;
　　* High performance electrical and hydraulic components, such as electric switch, variable displacement ram pump, gear plumb and motor, other hydraulic accessories, ensure the machine has reliable working system;
　　* The parts that could be easily worn such as auger blades and bottom plate of the conveyor system and the screed are made of imported anti-friction materials;
　　* Reasonable structure arrangement, big contact surface of the crawler system, ensure the safe and reliable work even at the hard work conditions;
　　* Central lubrication system supply the lubricant to the bearings of high temperature parts, lessen the work of maintenance;
　　* Auto controlled material conveying and spreading give the equality of material supply.
　　* Auto-leveling system that consists of two grade sensors and one slope sensor improve the pavement smoothness.
MAIN TECHNICAL PARAMETER
ltem Unit Parameter
Basic Working Width m 3.0
Max working Width m 6.0/7.0
Max Paving Thickness mm 300
Paving Speed m/min 1.54～4.64
Traveling Speed km/h 0.44～3.01
Theoretical Productivity t/h 300
Hopper Capacity t 13
Gradient Ability % 20
Tamper Frequency r/min 0～1500
Tamper Amplitude mm 4/8
Crown adjust % 0～3
Engine Type 　 4135AZKa
Rated Output kw 90
Rated Speed rpm 1500
Weight t 16～21
Overall Dimension mm 6136×3000×3635



RP1255 Multi-Function Asphalt Concrete Paver



Brief Introduction
　　RP1255 Asphalt Concrete Paver is a construction machine mainly used for the paving project on the road base and surface for highway of various kinds of material．The machine incorporates the most advanced technology and advantages often manufacturers’ abroad with similar modals．This type of machine is the first one to have the most advanced technology，such as computer-controlling system，digital control sonic sensor auto-leveling system，breakdown self-diagnose，dual-temper vibration. which makes the machine features with the advantages from many other manufacturers to make the complete machine reaching the current advanced level of the world．All，the key parts for the machine are purchased from international manufacturers to ensure the complete machine with the same quality and reliability as that of the imported machine．Therefore，RP1255 becomes the ideal equipment for the paving job on stabilized soil for road base and asphalt concrete for road surface.
　　The main features for RP1255 Asphalt Concrete Paver:
　　* Driving system with control for right and left hand separately; computer-control auto-control technology for paving with constant speed;
　　* 4 Sets of separate full hydraulic closed transmission adopted on material distributing right and left hand; material level controlled with sonic sensor technology, so as to achieve full proportional even material feeding;
　　* Material distributing right and left hand can move up and down expediently, so as to adapt the different paving thickness and increase material prereel complete uniformity;
　　* Auto-leveling system adopted with the unique digital controlling and multi-probe sonic sensor technology;
　　* Screed with specific technology of dual temper bars and high pressure pulse vibrating and electric-heating;
　　* Adopted with an advanced, mature and reliable Duets BF6M1013EC Water-cooling Diesel Engine, with a strong power;
　　* Radiator with a strong power to ensure that the machine warks for 24 hours continualiy in condition that environmental temperature high 50℃;
　　* Distributing auger, material distributing bottom plate and screed bottom plate made of high wearing-resistant alloy and imported wearing-resistant material;
　　* Control panel shows directly and clearly all working functions, paving, traveling speed; and could be mounted either at right or left hand ;
　　* Mobile or contact less sonic sensor auto-leveling reference beam could be available as an option;
　　* Mechanical extensible screed with double-tamper and high pressure pulse vibrator could be available as an option.
MAIN TECHNICAL PARAMETER

ltem

Unit

Parameter
Basic Working Width m 3.0
Max working Width m 12.5
Max Paving Thickness mm 350
Paving Speed m/min 0～18
Traveling Speed km/h 0～3.5
Theoretical Productivity t/h 800
Hopper Capacity t 14
Gradient Ability % 20
Smoothness mm/3m 2
Slope Leveling Tolerance % ±0.02
Engine Type 　 BF6M1013EC
Rated Output kw 165
Speed rpm 2300
Tank Capacity L 270
Generator Power kw 35
Weight t 21.3～32
Overall Dimension mm 6731×3000×3850




RP601/701 Asphalt Concrete Paver
Brief Introduction
　　* RP601、RP701 paver is widely used for paving road base and surface, especially suitable for paving road base and surface, especially suitable for paving asphalt concrete.
　　* It could be operated easily and convenient for having the high automation with fully hydraulic driven and electronic control, automatic centralized lubricating system, electric-heating system, infinitely hydraulic adjusted working width. The main switch and automatic leveling system of the control system ensure ideal smoothness and working quality.
MAIN TECHNICAL PARAMETER
ltem Unit Parameter
Basic Working Width m 2.5
Max working Width m 6.0/7.0
Max Paving Thickness mm 300
Paving Speed m/min 0～15
Traveling Speed km/h 0～4.2
Theoretical Productivity t/h 400
Hopper Capacity t 13
Gradient Ability % 20
Smoothness mm/3m 3
Slope Leveling Tolerance % ±0.02
Engine Type 　 BF4M1013C（Deutz）
Rated Output/Speed kw/rpm 112/2300
Tank Capacity L 180
Generator Power kw 21
Weight t 16.5～22.0
Overall Dimension mm 6230×2500×3815

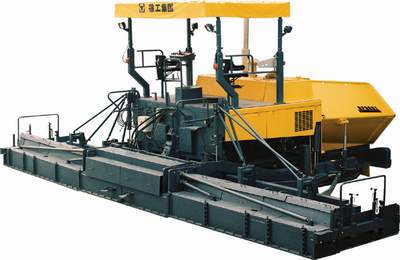

RP800J/900J Multi-Function Asphalt Concrete Paver

Brief Introduction
　　The multipurpose asphalt road paver typed RP800J and RP900J is designed to meat the requirement of large quantity of work and diverse working techniques in domestic market. It is an multi-function and high-performance road construction equipment, especially for the stabilized material working techniques. It can work for base course pavement with stabilized material mixture of lime, coal cash, cement, crushed stones, etc. and asphalt-mixed material for surface course pavement. It is an ideal equipment for base course and surface course pavement of road construction, parking lot, square etc.
　　The main features are：
　　* With water-cooled, turbo-charged engine, typed D6114G1B, made by shanghai Engine group, the strong power, high reliability, high anti-heat performance, power compensation for tableland area make it be used widely;
　　* Large capacity clutch type EQ1141G and automobile gear box that both made by DONGFENG automobile Group, make the big torque storage of transmission system and high reliability;
　　* Advanced dual-tamper and electric-heated screed, adjustable multi-amplitude, infinitely adjusted tamper frequency, high pavement density make the machine suitable to all kinds of working conditions;
　　* High performance electrical and hydraulic components, such as electric switch, variable displacement ram pump, gear plumb and motor, other hydraulic accessories, ensure the machine has reliable working system;
　　* The parts that could be easily worn such as auger blades and bottom plate of the conveyor system and the screed are made of imported anti-friction materials;
　　* Reasonable structure arrangement, big contact surface of the crawler system, ensure the safe and reliable work even at the hard work conditions;
　　* Central lubrication system supply the lubricant to the bearings of high temperature parts, lessen the work of maintenance;
　　* Auto controlled material conveying and spreading give the equality of material supply. Auto-leveling system that consists of two grade sensors and one slope sensor improve the pavement smoothness;
　　* Centralized electric control for the whole work process;
　　* High automation, easy and convenient operation ,high pavement quality and efficiency.
MAIN TECHNICAL PARAMETER
ltem Unit Parameter
Basic Working Width m 3.0
Max working Width m 8.0/9.0
Max Paving Thickness mm 330
Paving Speed m/min 2.0～5.5
Traveling Speed km/h 0.9～2.5
Theoretical Productivity t/h 500
Hopper Capacity t 14
Gradient Ability % 20
Smoothness mm/3m 3
Slope Leveling Tolerance % ±0.02
Engine Type 　 D6114ZG1B
Rated Output kw 140
Speed rpm 2300
Tank Capacity L 280
Generator Power kw 28
Weight t 22～25
Overall Dimension mm 6636×3000×3880

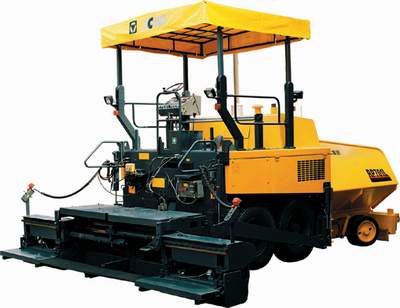

RP601L/701L Asphalt Concrete Paver

Brief Introduction
　　* RP601L、RP701L are elaborately designed with advanced VOGELE pave technology .It uses world advanced techniques: fully hydraulic driven, constant velocity and automatic control system. Centralized lubricating system. Electric-heating system and the conveyor and auger could be adjusted manually or automatically. The working width is from 2.5m to 7m; the paving thickness could be infinitely adjusted from 0-300m. All the control components are on the control board that can be movable to right and left side. With the main switch and advanced automatic leaving system, this type of pave has high automation, easy and convenient operation, good quality and high efficiency.
　　* It could be widely used on paving for base and surface for road, airport , causeway, port, square and an ideal equipment for working with asphalt concrete.
MAIN TECHNICAL PARAMETER
ltem Unit Parameter
Basic Working Width m 2.5
Max working Width m 6.0/7.0
Max Paving Thickness mm 300
Paving Speed m/min 0～18
Traveling Speed km/h 0～18
Theoretical Productivity t/h 400
Hopper Capacity t 13
Gradient Ability % 20
Crown Adjust % 0～3
Smoothness mm/3m 3
Slope Leveling Tolerance % ±0.02
Engine Type 　 D4114ZG2B
Rated Output kw 100
Speed rpm 2400
Tank Capacity L 200
Generator Power kw 20
Weight t 16～18
Overall Dimension mm 6096×2570×3832

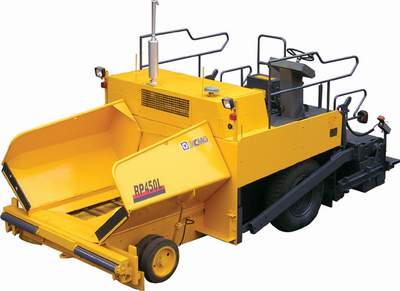

RP450L Asphalt Concrete Paver

Brief Introduction
　　* It is designed with advanced technique of the similar paves aboard and home. Its working width is from 2.8m to 4.5m and working thickness could be adjusted infinitely, the working productivity could be reach 100t/h. It uses the mechanical driving, hydraulic steering, electrical controlled conveyor and auger, electronic switch that control-working unit, all these ensure easy and convenient operation, good quality and high efficiency.
MAIN TECHNICAL PARAMETER
ltem Unit Parameter
Basic Working Width m 2.8
Max working Width m 4.5
Max Paving Thickness mm 150
Paving Speed m/min Ⅰ：3.3　Ⅱ:7.0
Traveling Speed km/h Ⅰ:2.7
Ⅱ:5.6 Ⅲ:10.2 Ⅳ:16.6 V:2.2
Theoretical Productivity t/h 100
Hopper Capacity t 11
Gradient Ability % 20
Tamper Frequency Hz 0～25
Crown Adjust % 0～3
Smoothness mm/3m 4
Slope Leveling Tolerance % ±0.03
Engine Type 　 R4105G18
Rated Output kw 48
Speed rpm 2000
Tank Capacity L 95
Weight t 10.2
Overall Dimension mm 5495×2950×3452



RG100 Cold Milling Machine

　RG100 colding milling machine is one kind of the road maintenance and repairing machinery for asphalt road surface, which is mainly used to dig and renew the asphalt and concrete surface of streets, roads, airports, warehouse,parks and etc. It can efficiently mill off the bumps, asphalt stair stepping, screen-shaped crevices, vehicle tracks, etc. on the surface of roads, and it can also dig holes and make grooves on the road surface. The machine can also be used for cutting tracks ( to make sure a good traction between the tyres and road surfaces) and milling the road surface to be even and flat. For its high work efficiency, simple applicable technology,easy-controlled milling depth, flexible and convenient operation, it has been used widely in the road maintenance and renewing construction.
●Main Technical Specification
Max.milling width（mm）：1020
Max.milling depth（mm）：120
Numbers of tools：84
Milling drum diameter（mm）：660
Working speed （m/min):　0～11
Traveling spee(km/h):　0～11
Theoretical Gradeability:(%):　20
Min.turning radius(mm): 7000
Ground clearance(mm):　120
Operating weight(kg):　13000
Engine
Manufacturer:　Guangxi Yulin Diesel Engine Co.,Ltd.
Model: 　　YC6108
Rated power(Kw/Hp):　115
Rotation speed(rpm): 2200
Fuel consumption:1/1 load(g/Kw.h):　230
Fuel tank capacity(L): 　180
Hydraulic oil tank capacity(L):　150
Water tank capacity(L):　290
Electrical system (V): 24
Contour dimension
Length(mm):　4552
Width(mm):　2218
Height(mm):　2804
Shipping dimension
Length(mm):　5640
Width(mm):　700
Height(mm):　610




RG101 Cold Milling Machine

　RG101 milling machine is one kind of road maintenance and repairing machinery for asphalt road surface, which is mainly used to dig and renew the asphalt and concrete surface of streets, road, airports, warehouse, parks, etc. It can efficiently mill off the bumps, asphalt stair stepping, screen-shaped crevices, vehicle tracks on the road surface, and it can also dig holes and make grooves on the road surface. The machine can also be used for cutting tracks ( to make sure a good traction between the tyres and road surfaces) and milling the road surface to be even and flat. For its high work efficiency, simple applicable technology, easy-controlled milling depth, flexible and convenient operation, it has been widely used in the road maintenance and renewing construction.
●Main Technical Specification
Max.milling width（mm）：1020
Max.milling depth（mm）：120
Numbers of tooll：84
Milling drum diameter（mm）：660
Working speed（m/min):　0～11
Travelling speed(km/h):　0～11
Gradeability:(%):　20
Min.turning radius(mm): 7000
Ground clearance(mm):　120
Operating weight(kg):　12000
Engine
Manufacturer:　Guangxi Yulin Diesel Engine Co. Ltd.
Model: 　　YC6108
Rated power(Kw/Hp):　115
Rotation speed(rpm): 2200
Fuel consumption:1/1load(g/Kw.h):　230
Fuel tank capacity(L): 　180
Hydraulic oil tank capacity(L):　150
Water tank capacity(L):　290
Electrical system (V): 24
Contour dimension
Length(mm):　4552
Width(mm):　2218
Height(mm):　2804




RH210 Cold Milling Machine

◎Be equipped with hi-quality effective on-line data control and trouble diagnosis system.
◎Full hydraulic transmission,proportional control by liquid and electricity.
◎Adopting with micro-computer technology,optimize the auto-adjustment for power output according to various road material to be milled.
◎Be equipped with cable sensor to make checking and testing, and digital diplay for milling depth. And milling depth can be automatically controled.
◎The milling drum are driven by means of auto-tension belt.
◎By means of hydraulic stepless speed regulating and differential lock, the four travelling crawlers can obtain even driving even if travelling on the slippery ground.
◎Four-crawler steering with crab-walk function.
◎Spacious and comfortable opertion station, with two control panels.
◎Be equipped with the milling tools which are easy to be replaced everywhere.
◎Fully enclosed 2-steps conveying belt, with 90°swinging angle ( to Left and Right), and unloading height being adjustable.

Model
RH210
Max.milling width
mm
2100
Weight/Load


Max.milling depth
mm
300
Load on front shaft
kg
15435
Milling drum


Load on rear shaft
kg
13060
Clearance between tools
mm
15
Tare
kg
28500
Tool number

174
Operating weight
kg
30000
Diameter of milling drum (with tools)
mm
1080
Crawlers mechanism


Max.tilting angle of milling drum

5°
Front crawler
mm
1700×305×650
Diesel engine


Rear crawler
mm
1700×305×650
Manufacturer

DEUTZ
Capacity


Model

BF8M1015C
Fuel tank
l
1200
type of cooling

Water cool
Liquid tank
l
280
Cylinder number

8
Water tank
l
2500
Rated power
kw
419
Electrical system
v
24
Engine rotation speed
rpm
2100
Belt conveyor


Fuel consumption：1/1load L/h

122
Width of primary belt
mm
800
Speed/Gradeability


Width of unloading belt
mm
800
Working speed
m/min
0-31
Capacity of belt conveyor
m3/h
290
Traveling speed
km/h
0-4.5
Contour dimension


Gradeability (working gear)
%
100
Length×Width×Height(mechanic)
mm
7750×2880×3000
Gradeability ( traveling gear)
%
100
Length×Width×Height (belt conveyor)
mm
8000×1150×1500
Clearance to ground
mm
190

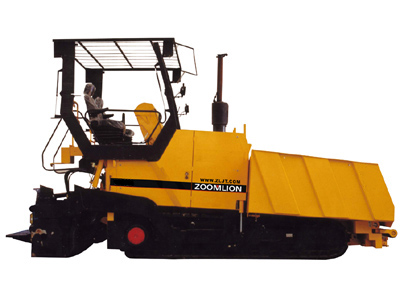

Asphalt paver










LTU60


Click it to open new window



FEATURES


●Thanks to the powerful turbo-charged DEUTZ engine, ZOOMLION paver get more power than any on the market, so it suit to pave on the plateau jobsites. The heavy-duty hydrostatic system, with the deliberate design on the structure of the screed, the ZOOMLION paver features high productivity. The property of multifunction is ideal for a large field of applications, e.g., placing combined asphalt base, bound layer, railroad tracks, etc.

●Equipped with two radiators, the system capability of radiation is advanced by 25%. Therefore, it is not a problem to work continuously, even in hot days, the temperature of the hydraulic oil stays normal. In midsummer, 2002, three ZOOMLION pavers have experienced such tests in Gobi desert.

●The alternation on structure of STIBBLE gear-box from 1/4 to 1/3 produces less heat, and makes maintenance convenient.

●Equipped with the heavy-duty series pumps of REXROTH, the hydraulic system has the ability to endure the pressure up to 32Mpa.

●Patented design on chain wheel of feed conveyors thoroughly solves the problem of material jerking. The driving wheel and the tension unit are disassembled to achieve an easy assembling, adjusting, maintaining. The heavy-duty chain, with the scraper-bar and base plate are made of high-anti-wearing material to ensure a long lifetime possible.

●With lifetime-lubricated CAT crawler unit, traction units features high reliability and minimum maintenance.

●Compared with other manufacturers, the traction drive malfunctions of ZOOMLION pavers have been largely reduced by a special design without the gear-box. The motors with high-torque and displacement are fit outward for a better reliability and easier maintenance.

●With the ultra-sonic sensors, the auger revolution is auto-controlled. The adjusting range of auger height is increased from 100mm to 150mm，in addition, there are two different size of auger blades. These properties help to adapt to wider applications, make material feeding smoother, and less disgregation.

●Front and rear tampers are 6-grade adjustable, to match different material, operating speed and depth, achieving the desired quality.

●A controller specially designed for paver and two sensors integrate a close-circuit control system. With a laptop or a special compiler called BB3, it’s easy for you to monitor, troubleshooting and setting parameters.

●Can be connected with both contact leveling system and non-contacting averaging –beams according to different demands of the customers.

●The base-plate and front-bar of screed are made of high anti-wearing steel introduced from Sweden, tamper-heads made of special die-steel have been heat-treated specially. These measures can reduce the replacement of the base-plate, front-bar and temper-head, to achieve an economical maintenance

●The inspecting connectors fitted on some crucial circuits make monitoring and adjusting easier.

●All the lubricating points are arranged in a way for easy approaching and maintenance. In addition, we provide centralized lubrication system to meet your special request.

●All exported hydraulic valves and accessories are of high quality to ensure serviceability and no leakage.

●All electric components are chosen from renowned brands, such as Honeywell, Gessmann and Hella.

●All the bearings are of the famous brand SKF and FAG



Specifications


Main Technical Specification
Paving Width 2.5～6ｍ(mechanically pieced)
Max. Paving Thickness 0-300mm
Paving Speed 0-15m/min
Traveling Speed 0-25km/h
Theoretical Productivity 500t/h
Tamper Number 2
Tamper Amplitude Front tamper 0/3/6/9/10/12mm adjustable
Rear tamper 3/4/5/7/8/9 mm adjustable
Tamper Frequency 0-28Hz stepless adjusted
Vibrator Frequency 0-58Hz stepless adjusted
Crown -1--+3%
Compactness ≥90%
Evenness 3mm／3m
Hopper Capacity 10t
Conveyor Speed 18m/min
Auger Diameter 360mm
Auger Revolution 0--128 rpm stepless adjusted
Engine Type/Output DEUTZ BF4M1013／112kw



LTU90


Click it to open new window



Specifications


Main Technical Specification
Paving Width 2.5～9ｍ(mechanically pieced)
Max. Paving Thickness 0-300mm
Paving Speed 0-16.4m/min
Traveling Speed 0-3.6km/h
Theoretical Productivity 800t/h
Tamper Number 2
Tamper Amplitude Front tamper 0/3/6/9/10/12mm adjustable
Rear tamper 3/4/5/7/8 mm adjustable
Tamper Frequency 0-28Hz stepless adjusted
Vibrator Frequency 0-58Hz stepless adjusted
Crown -1--+3%
Compactness ≥90%
Evenness 3mm／3m
Hopper Capacity 14t
Conveyor Speed 20m/min
Auger Diameter 410.360mm
Auger Revolution 0--170 rpm stepless adjusted
Engine Type/Output DEUTZ BF6M1013／133kw

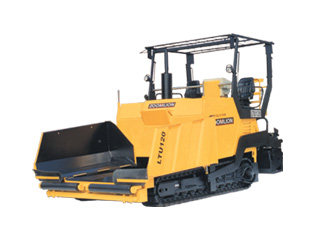

LTU120

Specifications


Main Technical Specification
Paving Width 2.5～12ｍ(mechanically pieced)
Max. Paving Thickness 0-300mm
Paving Speed 0-15.3m/min
Traveling Speed 0-4km/h
Theoretical Productivity 800t/h
Tamper Number 2
Tamper Amplitude Front tamper 0/3/6/9/10/12mm adjustable
Rear tamper 3/4/5/7/8/9 mm adjustable
Tamper Frequency 0-28Hz stepless adjusted
Vibrator Frequency 0-58Hz stepless adjusted
Crown -1--+3%
Compactness ≥90%
Evenness 3mm／3m
Hopper Capacity 14t
Conveyor Speed 20m/min
Auger Diameter 410,360mm
Auger Revolution 0--170 rpm stepless adjusted
Engine Type/Output DEUTZ BF6M1013C／161kw



LTUH60



Specifications


Main Technical Specification
Paving Width 2.5～6ｍ(mechanically pieced)
Hydraulically telescoped screed range 3-5.5m
Max. Paving Thickness 0-300mm
Paving Speed 0-15m/min
Traveling Speed 0-25km/h
Theoretical Productivity 500t/h
Tamper Number 2
Tamper Amplitude Front tamper 0/3/6/9/10/12mm adjustable
Rear tamper 5 mm
Tamper Frequency 0-25Hz stepless adjusted
Vibrator Frequency 0-55Hz stepless adjusted
Crown 0--+3%
Compactness ≥90%
Evenness 3mm／3m
Hopper Capacity 12t
Conveyor Speed 18m/min
Auger Diameter 360mm
Auger Revolution 0--128 rpm stepless adjusted
Engine Type/Output DEUTZ BF4M1013／112kw



LTUH90

Specifications


Main Technical Specification
Paving Width 3～9ｍ(mechanically pieced)
Hydraulically telescoped screed range 3-5.5m
Max. Paving Thickness 0-300mm
Paving Speed 0-16.4m/min
Traveling Speed 0-30km/h
Theoretical Productivity 800t/h
Tamper Number 2
Tamper Amplitude Front tamper 0/3/6/9/10/12mm adjustable
Rear tamper 5 mm
Tamper Frequency 0-25Hz stepless adjusted
Vibrator Frequency 0-55Hz stepless adjusted
Crown 0--+3%
Compactness ≥90%
Evenness 3mm／3m
Hopper Capacity 14t
Conveyor Speed 22m/min
Auger Diameter 410,360mm
Auger Revolution 0--170 rpm stepless adjusted
Engine Type/Output DEUTZ BF6M1013／133kw




 Road surface cold planer
BG2000





FEATURES



Powerful engine:

        A 320KW Daimler Chrysler diesel engine is fitted. The ADM system makes the machine can self-correcting its power for different environment. Even in terrific condition, it ensures maximum torque and prevents engine stall. The refrigerating system allows the machine to work safely from –20°C to 40°C temperature. And the exhaust according with the EuroⅡemission standard.

Efficient cutter drum system:

        The cutter drum is driven mechanically. The auto-tensioning device of the transmission belt ensures steady power distribution. The cutter drum (KENNAMETAL USA), the planetary gearbox (O&K Germany), and the flywheel hydraulic clutch (TRANSFLUID Italy) ensure capability and quality.

Flexible traveling and steering system:

          Hydraulic motors power the travel system, each powering the track drive with infinitely variable speed. The power distribution system automatically adjusts the travel speed of work time to the engine load. Each track is connected by hydraulic cylinder with the frame. The hydraulic steering device provides independent or combined steering, ensures a small turning radius and excellent maneuverability.

Convenient conveyor system:

          The conveyor system consists of loading belt and discharge belt. The discharge belt can swing 45° to either side, and the height can be variably adjusted. Even at the highest point, the V-belt still provides ample load capacity. These make the machine can work in different kind of construction site.

Advanced hydraulic-electronic control system:

           Technology of hydraulic-electronic proportional control, sensor and microprocessor are applied in total designing. The Moba-Matic system (Moba Germany) is used for cut depth control. These satisfy users’ requires for construction quality in different condition.

Well safety:

        All safety labels are clearly marked. The operator may operate the machine at different position conveniently, and can stop the machine by any of the five emergency stop switch. There is logical interlocking function prevents wrong operation. Every alarm light makes the operator to know working state promptly.



Specifications


Primary
Milling width max (mm) 2000 Engine speed min-1 2200
Milling depth (mm) 0~300 Weight/Load
Speed   Front axle load, full tanks (kg) 16660 16660
Milling speed (m/min) 0~29.5 Rear axle load, full tanks (kg) 11540
Travel speed (km/h) 0~4.5 Own weight (kg) 24600
Theoretical grade ability (%) 80 Maximum operating weight 28200
Ground clearance (mm) 240 Tank capacities
Engine   Fuel tank (1) 850
Manufacturer Daimler Chrysler Hydraulic fluid tank (1) 270
Type OM 502 LA Water tank (1) 1600
Output (kW) 320 Electrical system (V) 24
Ordinary
Milling drum Conveyor system
Space of tools (mm) 15 Loading belt width (mm) 800
Number of tools 158 Discharge belt width (mm) 800
Drum diameter (mm) 980 Conveying capacity (m3/h) 290
Drum inclination max 5° Shipping dimensions/Weight
Tracks   Machine (mm)L×W×H 6500×2500×3035
Front track (mm) 1750×260×595 Conveyor (mm)L×W×H 8000×1250×1150
Rear track (mm) 1750×260×595 Weight of machine (kg) 22730
    Weight of discharge conveyor (kg) 1870





All other tractors and implements

Ask us
