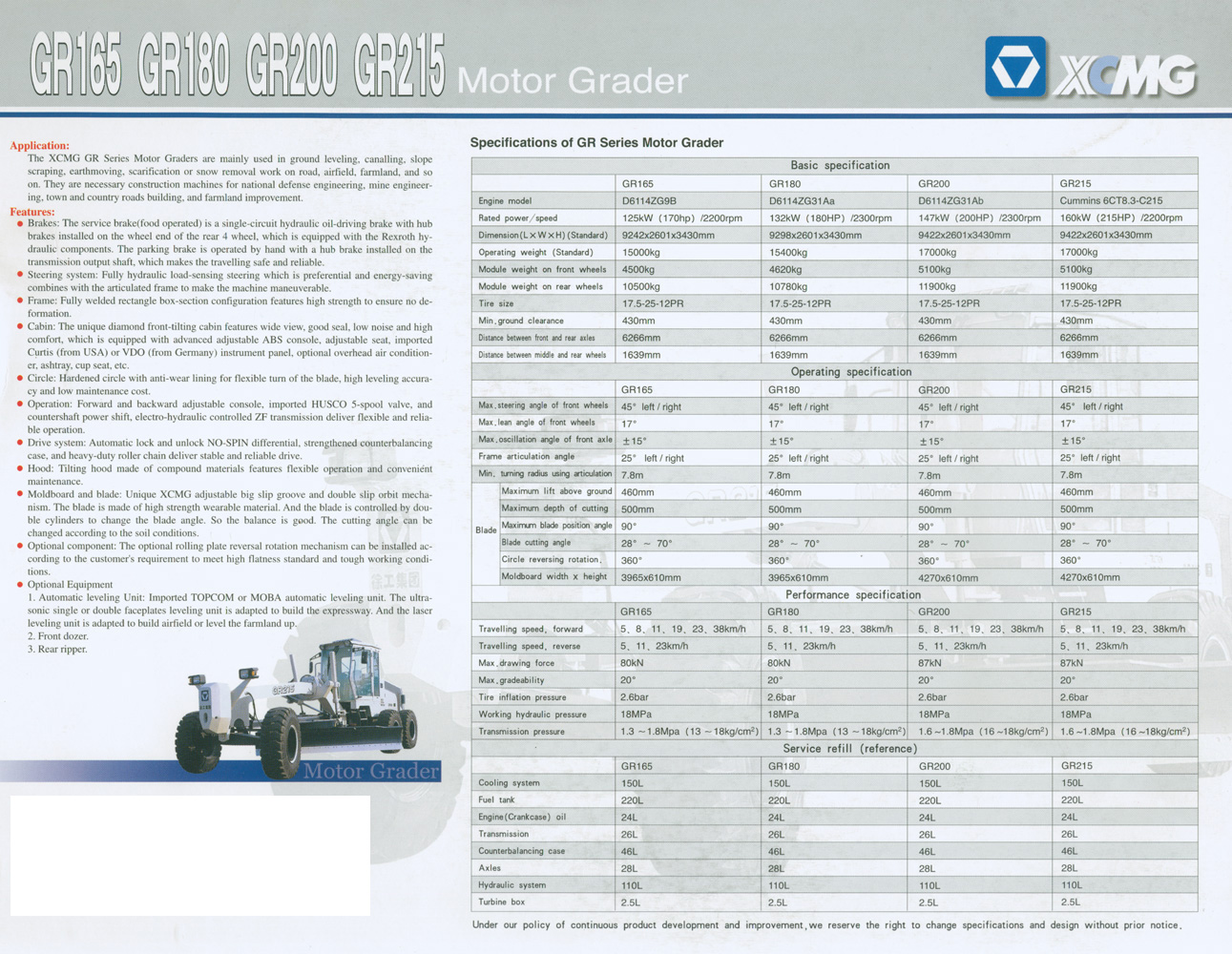

GR165/GR180/GR200/GR215

GR165 $55500 FOB Shanghai

spec

Motor Grader

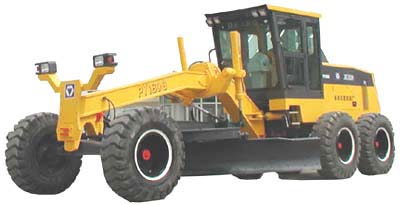

    PY165C PY165D PY200D  Structural features for motor grader:

    1.Advanced and effective transmission system: C series own hydraulic transmission and D series own hydraulic and electronic gear box transmission.
    2.Mighty power performance: low-emission and high efficiency D6114ZG-2A,D3121 engine is able to be exchanged with Cummins C8.3 and Cat3306B to meet different needs.
    3.Comfortable operation: air-conditioner with several intakes, large and bright cabin providing a wider range of visibility, adjustable and soft Grammer seat, operating bar with short handle, adjustable operating stand, power-shift transmission box which can be easily controlled.
    4.Reliable electricity system: equipped with electronic monitor and electron close to switch.
    5.Advanced and dependable hydraulic pipe: imported Parker elastic seal and anti-ultraviolet-ray pipe.
    6.Imported multi-circuit valve and dual pump.
    7.safe and reliable brake system: Brake valve is purely hydraulic brake with German Rexroth hydraulic valve.
    8.Unique and novel swing unit: Outer gear type provides 90°C tilt and 360° rotation.



PY165C

PY200D

Engine model

Shangchai D6114ZG-2A

Shanchai D6121

Rated power

122kw(165HP)/2000rpm

147kw(200HP)2200rpm

Speed(km/h)





  Low speed

F1/R1

 5.5 F2/R2 11

Forward 1st:5.18, 2nd:9, 3rd:11.96, 4th:20.78,  5th:26.34,  6th:45.8

  High speed

 F1/R1 19.5 F2/R2 35.1

Reverse 1st:5.183, 2nd:11.96, 3rd:26.34

Min.turing radius

7800mm

7800mm

Scraper dimensions

3700/610mm

4000/610mm

Rated working pressure   17Mpa
Operating weight 13650kg 15650kg

L/W/H

8580/2595/3400mm

8685/2635/3250mm

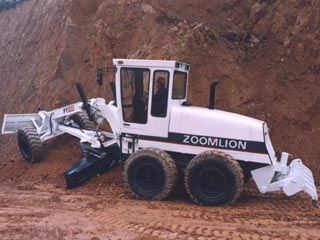

PY165G、PY170G、PY180G、PY200G G Series Motor Graders


Product features
　　Brake System：The travelling brake system adopts the hydraulic components of Rexroth (Germany). The hydraulic hub-type brake applies its performance on four middle & rear wheels. The parking brake system is of hub-type hand brake, which ensures the safety during travelling by applying its function on the output shaft of gearbox.
　　Steering system:Adopting sensor with load. The superior energy-saving fully hydraulic steering system makes it possilbe,with the articulated frame, to achive easy and flexible steering.
　　Chassis：Being of welded structure, just like a box, so it is strong enough to ensure no deformation.
　　Cabin：with wide-field vision, low noise, ultraviolet-protection glass, and with Curtis (of USA) or VDO (of Germany) instrument panel, height-adjustable seat, radio, ashtray, cup-seat etc. The cab is designed to be nice looking and very comfortable.
　　Slewing Mechanism: Be fitted with hard material lining, which ensures easy and flexible move of the blade, and high-accuracy flatness and low-cost maintenance as well.
　　Operation System: Forward/backward adjustable opertion pannel, with HUSCO multi-way valve, electrically- controlled ZF gearbox, so it is quite easy to make any operation.
　　Transmission: Adopting with auto-lock/unlock NO-SPIN anti-slide differential, heavy-duty balance box, heavy-duty roller chain transmisson, all of which make sure the transmission system being stable.
　　External Design：The engine housing adopots the glass steel which is of low- noise, rusty-proof, corrosion-prevention,anti-shock and being tiltable, so with nice looking and easy maintenance and repair for the engine.
　　Blade：The blade is of very hard material, and it is controlled by two cylinders for changing angle, so with perfect evenness and balance. And cutting-in angle could be easily controlled according to different soil conditions.
　　Optional Parts：
　　1、Air-conditioner
　　2、Automatic levelling unit：It is optional to select Topcom leveling unit or MOBA leveling system (Both are imported).It is recommended: ultrasonic leveling unit can be selected as optional when buidling the high-express ways; and laser leveling unit as the optional for building airport or large-area agricutural site.
　　3、Front dozer
　　4、Rear rippers

Front dozer Width×Height 2744×808mm
Distance to front axle 1550mm
Max.digging-in depth 110mm
Max.raising height 500mm
Rear rippers Ripping width 2000mm
Max.digging depth for ripper 315mm
No. of teeth 5
Max.raising height for ripper 350mm


Main technical specification

Basic parameters Model PY165 PY170G PY180G PY200G
Enging model Shanghai diesel engine 6135K－10c D6114ZG31A D6114ZG31Aa D6114ZG31Ab
Rated power/rated speed 121kw(165HP)/2200rpm 125kw(170HP)/2200rpm 132kw(180HP)/2300rpm 147kw(200HP)/2300rpm
Overall dimensions(st) 9313×2601×3280mm 9093×2601×3280mm 9313×2601×3280mm 9313×2601×3280mm
Operating weight 15400kg 15400kg 15400kg 17000kg
Module weight on front wheels 4466kg 4466kg 4466kg 4900kg
Module weight on rear wheels 10934kg 10934kg 10934kg 12100kg
Tires 17.5－25 RP12 17.5－25 RP12 17.5－25 RP12 17.5－25 RP12
Min. clearance 430mm 430mm 430mm 310mm
Distance between front and rear wheels 6266mm 6266mm 6266mm 6266mm
Distance between middle and rear wheels 1542mm 1542mm 1542mm 1542mm
Performance parameters Forward speed 5、8、11、19、23、37km/h 5、8、11、19、23、37km/h 5、8.5、11、19、23、38.5km/h 5、8.5、11、19、23、38.5km/h
Reverse speed 5、11、23km/h 5.5、11、23km/h 5、11、23km/h 5、11、23km/h
Max.tractive force 80KN 80KN 80KN 87KN
Max.gradeability 20 20 20 20
Tire expansion pressure 2.6bar 2.6bar 2.6bar 2.6bar
Pressure of working system 18MPa 18MPa 18MPa 18MPa
Pressure of gear box 1.3－1.5Mpa(13－15kg/cm2) 1.3－1.5Mpa(13－15kg/cm2) 1.3－1.5Mpa(13－15kg/cm2) 1.3－1.5Mpa(13－15kg/cm2)

Working
parameters
 		 Max.steering angle for front wheel left,right each 45° Right and left each45° Right and left each45° Right and left each45°
Max.decline angle for front wheel 17° 17° 17° 17°
Max.swing angle for front axle ±15° ±15° ±15° ±15°
Chassis steering angle Left and Right, each 25° Left and Right, each 25° Left and Right, each 25° Left and Right, each 25°
Min.turning radius 7.8m 7.8m 7.8m 7.8m
Moldboard Max.raising height 460mm 460mm 460mm 460mm
  Max.blade cutting depth 500mm 500mm 500mm 500mm
Blade Max.sloping angle for blade 90° 90° 90° 90°
Cutting angle 25°－55° 25°－55° 25°－55° 25°－55°
Swing angle 360° 360° 360° 360°
Length×Curved height 3965×610mm 3965×610mm 3965×610mm 3965×610mm
Fuel refilling volume(ref.) Cooling liquid 150L 150L 150L 150L
Fuel tank 220L 220L 220L 220L
Engine 20L 20L 20L 20L
Gear box 26L 26L 26L 26L
Total capacity of balance box 46L 46L 46L 46L
Driving axle 28L 28L 28L 28L
Hydraulic oil 110L 110L 110L 110L
Turbo box 2.5L 2.5L 2.5L 2.5L





Motor grader





　　Zoomlion PY190 Grader is the first-class production designed with the international popular three-dimensional design tool--Ideas, manufactured by advanced manufacturing approaches, based on the experiences of many inland or overseas grader-manufacturers.
　　 PY190 Grader provides appropriate reserve output-torque, powerful traction, high degree of flexibility, small turning radius, as well as excellent cross-country performance and adaptability. With a streamlined appearance, the machine is specious and harmonious. With the ergonomic design, the driver’s cab is comfortable. With the great-power air conditioner, the operating environment is optimized. With the arc front windshield, the driver has a wide visual field




FEATURES


Braking System：The steering braking system is of hydraulic hub brake, the hydraulic components is imported from Rexroth Co. of Germany, which function on the four middle-rear driving wheels. The parking system is of hub hand-brake, which functions on the output shaft of gear box to ensure the safety during working and traveling.
Steering System: Adopting single-pump and single-loop hydraulic system together with the articulated frame to ensure the sensitivity of steering.
Frame:Be of the welding structure, being strong and not easily deformed.
Swiveling Structure: Adopting anti-wear material to ensure the blade being flexible, high-accuracy performance and easy maintenance.
Operation System: Be equipped with imported HUSCO multi-way valve, each valve has separate operating handle to ensure the performance reliable.
Transmission System: Adopting self-lock\unlock NO-SPIN anti-slide differential device, strong balance box and heavy roller transmission, to ensure the transmission working properly.
Driver’s Cab: Be of the particular arc type cab, with good vision, nice enclosing, low noise, adjustable seat, imported electric instruments, air-conditioner below seat, etc
Appearance:  Be of the streamlined engine housing, with nice appearance looking and easy maintenance and service。
Blade: Adopting the dual-sliding mechanism, the blade is of the high-strength anti-wear material. The blade cutting angle can be controlled easily by two cylinders according to the hardness of the ground.





Specifications


Basic Parameter
Working Parameter
Engine model D6114ZG1B Max.tilting angle of front wheel ±45°
Rated power 140 Kw Max.steering angle of front wheel ±17°
Rated rev 2300 rpm Max.swing angle of front axle ±15°
Contour dimension (mm) 10890×2595×3280 Frame steering angle ±25°
Overall weight 15400 Kg Min.turning radius 7.8m
Load on front axle 4440 Kg Blade Max.lifting height
Load on rear axle 10960 Kg Max.side tilting angle 90°
Tyre type 17.5-25PR14 Max.digging depth
Min.gound clearance 400 mm Swiveling angle 360°
Axle base between front and rear axles 6205 mm Length X height 3965×610mm
Back axle-tandem base 1550 mm Cutting angle
