ChinaBestProducts Crane

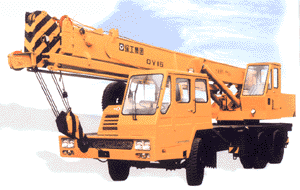

QY16d Hydraulic mobile crane

Max.Rated Lifting Capacity	kg	16000
Max.Lifting Height	m	38.5
Main Boom	m	9.8
Jib	m	7.5
Max.Hoisting Moment	kN.m	686
Max.Lifting Rope Speed	m/min	100
Slewing Speed	r/min	2.5
Outline Dimension	m	11.92.53.35
Weight Data	t	24
Chassis Model		XZ16C
Diesel Model		D6114	ZQ33A
Max.Power of Engine	kW/(r/min)	152	2200
Max.Torque of Engine	N.m/(r/min)	790	1400
Min.Turning Diameter	m		20
Max.Gradeability	%		24
Max.Travelling Speed	km/h	67	70
Approach Angle	°		21
Angle of Departure	°		10
Outriggers Distance	m		4.6(L)*5.4(W)

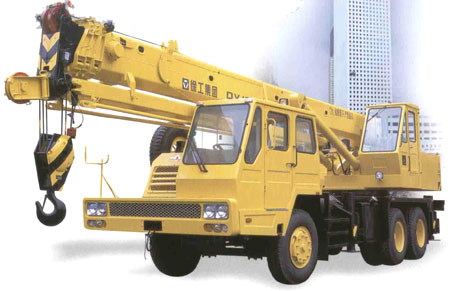

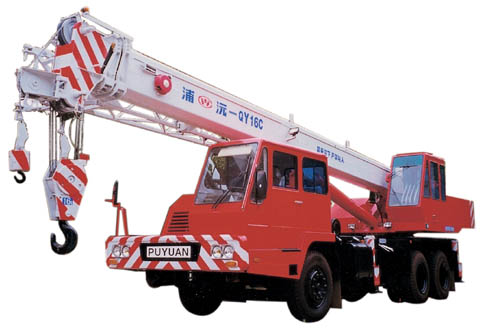

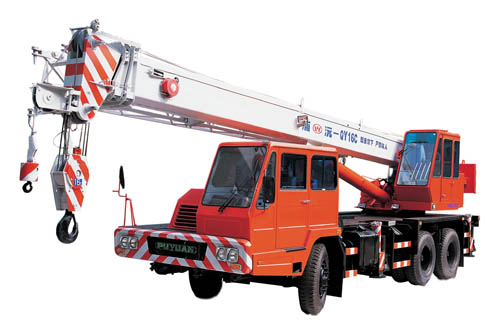

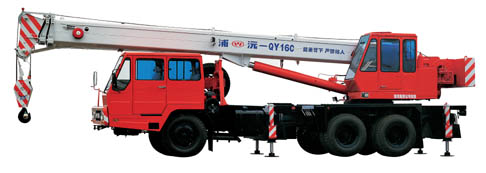

QY16C Hydraulic mobile crane

Max.Rated Lifting Capacity	kg	16000
Max.Lifting Height	m	30.8
Main Boom	m	3 section 9.8-24
Jib	m	7
Max.Hoisting Moment	kN.m	711.48
Max.Lifting Rope Speed	m/min	100
Slewing Speed	r/min	2.5
Outline Dimension	m	11.9×2.5×3.35
Weight Data	t	22.9/22.65
Chassis Model
Diesel Model		Hangfa X6130	Shangchai D6114
Max.Power of Engine	kW/(r/min)	154/2100	152/2200
Max.Torque of Engine	N.m/(r/min)	780/1300	790/1400
Min.Turning Diameter	m		20
Max.Gradeability	%		24
Max.Travelling Speed	km/h	67	70
Approach Angle	°		21
Angle of Departure	°		10
Outriggers Distance	m		4.6×5.4

QY16B Hydraulic mobile crane

Max.Rated Lifting Capacity	kg	16000
Max.Lifting Height	m	23.6
Main Boom	m	3 section 9.8-24
Max.Hoisting Moment	kN.m	627
Max.Lifting Rope Speed	m/min	100
Slewing Speed	r/min	2.5
Outline Dimension	m	11.92.53.35
Weight Data	t	19.2
Chassis Model		XZ16C
Diesel Model		Shangchai D6114
Max.Power of Engine	kW/(r/min)	152/2200
Max.Torque of Engine	N.m/(r/min)	790/1400
Min.Turning Diameter	m	19.5
Max.Gradeability	%	28
Max.Travelling Speed	km/h	72
Approach Angle	°	21
Angle of Departure	°	10
Outriggers Distance	m	4.5*5.4

QAY25 ALL TERRAIN CRANE

Outline dimensions(L×W×H)		10700×2490×3550 mm
Total mass		25.2 t
Lifting performance	Max.load moment	948 kN.m
	Max.lifting height	Boom 28.2m, Boom + Jib 36.6m
	Max. lifted load for travel	6t
Travel performance	Approach angle/Departure angle	20°/21°
	Min.ground clearance	360mm
	Max.travel speed	70km/h
	Min. turning diameter	20m for front wheel steering, 14m for all wheel steering, crab walk possible.
	Max. gradeability	58%
Boom	No.of section/Length	8.9－28m/4 section
	Cross-section	Hexagonal large round angle cross- section, reasonable load, heavy load bearing capability.
	Telescoping	Single cylinder plus wire ropes, synchronous telescoping.
Jib	No.of section/Type	Triangle lattice structure, good stability and light-weight.
Jib	长度/节数	8.15m/1 section
Hoisting	Type	Main and auxiliary winches, build-in planetary reducer, driven by constant displacement piston motor.
Hoisting	working speed	Not less than 140m/min.
Swing	Type	Two-stage planetary reducer, external coupling and central-adjusting, convenient for adjustment and maintenance, and controlled free-swing available.
Swing	working speed	360°full swing, swing speed is not less than 2.5r/min.
Elevating		Single cylinder with imported balance valve for front support elevation, hoist down by gravity, low energy consumption.
Outrigger	Type	H-type outriggers at front and rear
Outrigger	Extension width	lateral extension 6.2m, longitudinal extension 6.325m, mid-position extension (4.4m) permissible.
Hydraulic system	Oil pump	Imported triplex gear pumps, main pump is piston variable displacement pump with load feedback function.
Hydraulic system	Control	Hydraulic pilot proportional control, convenient, sensitive and accurate.
Safety device	Automatic moment limiter (AML) contributes dynamic display of crane motions by configuration, and with automatic overload protection.Overwind cut-out device, height limiter, outrigger hydraulic lock and balance valve.
Carrier	Self-made 2-axle carrier with all-axle drive, all wheel steering and crab walk possible.
Engine	6-cylinder, water cooling and turbo- charged aftercooled diesel engine, exhaustion emission complies with regulations EUROⅡ,max. output 184kW, plateau type engine is for option.
Transmission	Mechanical control, change gear with sychronizator,eight gears plus one off-road gear.
Suspension	Hydro-pneumatic suspension with auto-leveling, manually raise/lower and rigidly lock the carrier. Max. stroke 160mm.

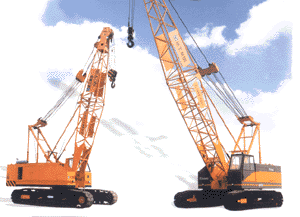

QUY50.QUY35 Hydraulic crawler crane

,	,	QUY50	QUY35
Max.Rated Lifting Capacity	kg	50000	35000
Max.Hoisting Moment	kN.m	1815	294.92
Main Boom	m	13-52	10-40
Boom working angle	(°)	30-80	30-80
Main lifting speed(single rope)	m/min	0-65	0-110
Auxiliary lifting speed(single rope)	m/min	0-65	0-110
Derricking speed	m/min	0-52	0-55
Max.Gradability	(°)	20	20
Slewing Speed	r/min	0-1.5	0-1.5
Max.Travel Speed	Km/h	0-1.1	0-1.34
Ground Pressure	Mpa	0.069	0.058
Max.Power of engline	kw	117.6	117.6
Jib	m	9.15-15.25	9.15-15.25
Offset angle of jib	(°)	10/30	30

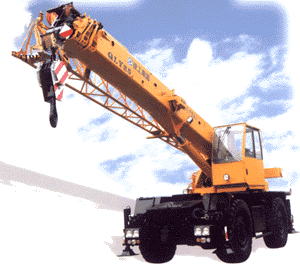

QLY25 Hydraulic tyre crane

Max.Rated Lifting Capacity	kg	25000
Max.Lifting Height	m	32.5
Main Boom	m	4 sections 8.4-26.0
Jib	m	8.15
Max.Hoisting Moment	kN.m	833
Max.Lifting Speed(single rope)	m/min	84
Slewing Speed	r/min	2.0
Outline Dimension	m	10.35×2.5×3.336
Weight Data	t	23.541
Diesel engine model	Cummins 6BTA509C
Max.Power of engline	kw/rpm	132/2500
Max.Torque of engine	N.m/rpm	617/1500
Min.Turing Radius	m	2.955
Max.Gradeability	%	45
Max.Travel Speed	km/h	40
Approach Angle	°	24.5
Angle of Departure	°	24.5
Outriggers Distance(longitudinalXlateral)	m	5.716×5.6

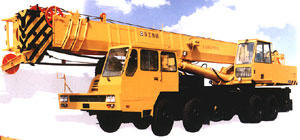

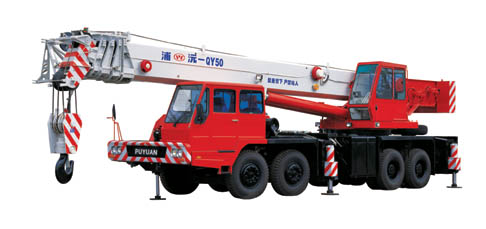

QY50 Hydraulic mobile crane

Max.Rated Lifting Capacity	kg	50000
Max.Lifting Height	m	46.8
Main Boom	m	4 sections 11-33.5
Jib	m	2 sections 8.5-13.5
Max.Hoisting Moment	kN.m	1509
Max.Lifting Speed(single rope)	m/min	118
Slewing Speed	r/min	≤2
Outline Dimension	m	13.65×2.82×3.47
Weight Data	t	38.73
Chassis Model	,	Self-made XZ50
Diesel engine model	Steyr WD615.67
Max.Power of engline	kw/rpm	206/2400
Max.Torque of engine	N.m/rpm	1070/1400
Min.Turing Radius	m	12
Max.Gradeability	%	37
Max.Travel Speed	km/h	72
Approach Angle	°	16
Angle of Departure	°	10
Outriggers Distance(longitudinalXlateral)	m	5.45×6.6

QY50A Hydraulic mobile crane

Max.Rated Lifting Capacity	kg	50000
Max.Lifting Height	m	47
Main Boom	m	4 sections 11-33.5
Jib	m	2节8.5-13.5
Max.Hoisting Moment	kN.m	1509
Max.Lifting Speed(single rope)	m/min	118
Slewing Speed	r/min	≤2
Outline Dimension	m	13.65×2.82×3.47
Weight Data	t	37.03
Chassis Model	,	Mitubishi KS505SLZ
Diesel engone model	,	8DC9-2
Max.Power of engline	kw/rpm	213/2200
Max.Torque of engine	N.m/rpm	980/1400
Min.Turing Radius	m	11.5
Max.Gradeability	%	37
Max.Travel Speed	km/h	75
Approach Angle	°	16
Angle of Departure	°	10
Outriggers Distance(longitudinalXlateral)	m	5.45×6.6

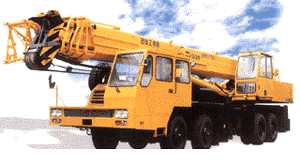

QY50B Hydraulic mobile crane

Max.Rated Lifting Capacity	kg	50000
Max.Lifting Height	m	56.57
Main Boom	m	5 sections 10.7-40.1
Jib	m	3节5.1-16
Max.Hoisting Moment	kN.m	1509
Max.Lifting Speed(single rope)	m/min	118
Slewing Speed	r/min	0-2
Outline Dimension	m	13.27×2.75×3.3
Weight Data	t	39.75
Chassis Model	,	Self-made XZ50
Diesel engine model	Steyr WD615.67ASteyr WD615.67
Max.Power of engline	kw/rpm	206/2200 206/2400
Max.Torque of engine	N.m/rpm	1160/1400 1070/1400
Min.Turing Radius	m	12
Max.Gradeability	%	37
Max.Travel Speed	km/h	66 72
Approach Angle	°	16
Angle of Departure	°	10
Outriggers Distance(longitudinalXlateral)	m	5.45×6.6

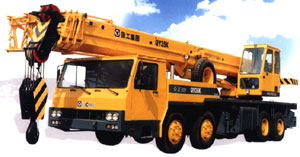

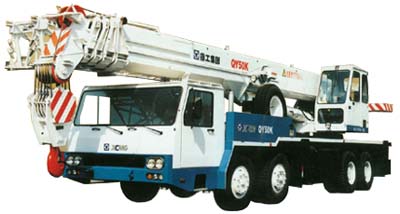

QY50K Hydraulic mobile crane

Introduction
　　* Outlook design obtained the State patent No.（ZL01317793.1）。
　　* Hydraulic system obtained the State patent No.（ZL01237657.4）。
　　* QY50KWith a max.lifting load of 50 t at 3.0 m working radius, the crane has a boom of 5 sections which are of large arc hexagon profile and 2 side jibs. The gravity center is lower ensuring good stability and high travelling speed. It is of high manuvrbility and can be used in various working occassions.
　　* Derikking with a single front cylinder AF,double indepandantwinchs,pilot liquid proportion control system enabling micro-movement and easy operation.
　　* Full and spacious cabin with good eyeview,adjustable seat ensuring comfortness.Air coditioner and heater may be installed in case of need.
　　* Steyr environment friendly enging Model WD615.67A which meets the National omission standard GB17691-1999(Europ standard)
　　* Operation cab designed egnomically enabling long time operation without being felt tyred.
　Pilot liquid proportion control system enabling easy operation of all jobs
　　* New LCD superviser shows all kind of work.all switchs are easy to approach enabling operation safty.
　　* High performance balance valve made with international technology and imported adapters enable stable and reliable operation.
　　* Hydraulic valve sets are designed with integrated mould block enabling little pressure loss,high efficiancy and reliablity.
　　* Swing system has the free slewing machanism which is cotrolable.Closed brake and buffer valve which realizes stable micro-movement.
　　* Complete security fittings: Automatic moment limitor,kick-out units for over-rolling and over-releasing,ensuring high safty for operation.
　　* The world's first class hydraulic units can be fixed as option
　　* Air conditioner and heater, cold starter and high plateau fittings can be chosen as option.
Technical data in travel state

Demenssions
Overall length (mm)	12950
Overall width (mm)	2750
Overall height (mm)	3350
Wheel base
1st (mm)	1520
2nd(mm)	3815
3rd(mm)	1350
Track
1st (mm)	2240
2nd (mm)	2055
Weight
Dead weight in travel state (kg)	38580
Axle load
1st axle(kg)	12950
2nd axle(kg)	25630
Power
Model of engine	Steyr WD615.67A Cummune MII-C290
Engine rated outputkW(r/min)	206/2200　216/2100
Rated torque N.m(r/min)	1100/1400　1200/1400
Rated turning speed (r/min)	2200　2100
Travel
Travl speed
Max.travel speed (km/h)	66　63
Min. speed(km/h)	2.7　4.3
Turning diameter
Min.turning diameter (m)	24　24
Min.turning diameter at boom tip (m)	26.8　26.8
Min. groun clearance(mm)	285　285
Approach angle	16°　16°
Departure angle	11°　11°
Braking distance（at30km/h）	≤10　≤10
Max.ggradabilit	27%　28%
Fuel consumption (L)	～32　～32
Lifting performance
Max.total rated lifting load (t)	50
Min. working radius (m)	3
Turning radius at swing table tail(mm)	3482
Max.load moment
Base boom(kN.m)	1739.5
Full_extent boom(kN.m)	617.4
Outrigger extension distance
Longitudinal(m)	5.65
Lateral (m)	6.6
Lifting height
Base boom (m)	10.7
Full-extent boom(m)	40
Full-extent boom+jib(m)	55.8
Boom length
(m)	10.7
Full-extent boom(m)	40.1
Full-extent boom+jib(m)	55.1
Attaching angle for jib	0°15°30°
Workng speed parameter
Boom elevating time
Full lifting(s)	88
Full falling (s)	60
Boom telescoping time
Full extending (s)	180
Full retracting(s)	140
Max.slewing speed(r/min)	2
Outrigger telescoping time
Outrigger beam extending synchronously(s)	30
Outrigger beam retracting synchronously (s)	20
Outrigger jack extending synchronously(s)	35
Outrigger jack retracting synchronously (s)	30
Hoisting speed(single rope)
Main winch with full load (m/min)	85
Main winch without load(m/min)	110
Auxiliary winch with full load(m/min)	85
Auxiliary winch without load (m/min)	110
Sound level outside cabin dB(A)	≤118
Sound inside cabin dB(A)	≤90

Technical data for lifting operation
　　Total rated lifting load for boom　　　　　　　　　　Table 1

Working radius (m)	Without the 5th outrigger,boom at the side of rear:or with the 5th ourigger,360 swing
	base boom10.70m		Mid-length boom18.05m		Mid-length boom25.40m		Mid-length32.75m		Full retracting40.10m
	Lifting load (kg)	Hoisting height (m)	Lifting load (kg)	Hoisting height (m)	Lifting load (kg)	Hoisting hight (m)	Hoisting load (kg)	Hoisting hight (m)	Lifting load (kg)	Hoisting hight (m)
3	50000	10.75
3.5	45300	10.51	30000	18.37
4	41500	10.23	27000	18.22
4.5	38300	9.91	25500	18.05	18000	25.70
5	35500	9.56	24700	17.87	18000	25.57
5.5	30300	9.16	22800	17.67	16700	25.44
6	25600	8.71	21000	17.45	15900	25.29	10800	32.90
7	19200	7.59	18000	16.96	14400	24.96	10000	32.65
8	15000	6.06	14600	16.39	13100	24.58	9300	32.36	7000	39.97
9	12100	3.39	11800	15.73	12000	24.16	8600	32.04	6500	39.72
10			9500	14.97	10600	23.68	7500	31.69	5700	39.43
12			6800	13.05	7700	22.55	6600	30.87	5000	38.78
14			4800	10.35	5800	21.17	5800	29.88	4500	38.01
16			3400	5.65	4400	19.47	4800	28.72	3900	37.11
18					3300	17.35	3800	27.35	3300	36.07
20					2500	14.62	3000	25.75	2900	34.89
22					1800	10.78	2300	23.87	2600	33.53
							1800	21.62	2100	31.99
							3100	18.87	1600	30.24
								15.34	1200	28.22
									900	25.88
Multipal time	12		8		5		4		3
Hook weight	515kg
Min.elevating angle for boom	16.36°		17.02°		24.11°		34.21°		39.28°
Max.elevating angle for boom	68.95°		76.16°		77.93°		77.99°		77.30°

　　Lifting load for jibs　　　　　Table 2

Elevating angle for boom (°)	Boom40.1m
	Offset angle
	0°		15°		30°
	Jib8.5m	Jib15m	Jib8.5m	Jib15m	Jib8.5m	15m
	Lifting load(kg)	Lifting load(kg)	Lifting load(kg)	Lifting load(kg)	Lifting load(kg)	Lifting load(kg)
78	4000	2000	2700	1400	2440	1100
75	3600	2000	2500	1200	2300	1000
72	3200	1800	2300	1150	2200	990
70	2900	1700	2200	1100	2100	950
65	2300	1400	1900	950	1900	880
60	1800	1200	1600	880	1500	830
55	1000	800	900	700	850	600
50	450		400		350
with hook block　　　　for 4 t100kg

　　Notes;
　　（1）The data in the table are the max.lifting capacity when the crane is set up on level and firm ground.
　　（2）The total rated lifting load in the table includes weight of hook block and slings.
　　（3）The working radius in the table is the actual value including boom deflection under load.
　　（4）Wind pressure125N/m^²The crane can still be used when the wind reaching grade 7.
　　（5）Lifting rated load of single top of the crane

Length (m)	10.7	18.05	25.40	32.75	40.10
Hoisting load	4000	The hoisting load is 4000kg at working dadius of 3.5-14m, the else is the same as the lifting performance in the table when boom length is 18.05m,working radius 16m.	The hoisting load is 4000kg when working radiue is 4.5-16m,the else are the same as the performance which are under the condition of boom length 25.4m, working radius 18-22m	The hoistingload 4000kg at working radius of 6-16m,the else are the same as the performance in the table when boom length 32.75m,working radius 8-14m	The hoisting load is 4000kg when working radius 8-14m. The else are the same as the performace under the condition in the table when boom length 40.1m ,working radius 16-30m

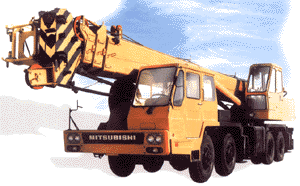

QY32B hydraulic mobie crane

Max.Rated Lifting Capacity	kg	32000
Max.Lifting Height	m	39.9
Main Boom	m	4 sections 10.4-32
Jib	m	7.5
Max.Hoisting Moment	kN.m	956
Max.Lifting Speed(single rope)	m/min	130
Slewing Speed	r/min	≤2.5
Outline Dimension	m	12.75×2.5×3.53
Weight Data	t	31.47
Chassis Model	,	Mitubishi K305RLA
Diesel Model	,	8DC9-2A
Max.Power of engline	kw/rpm	213/2200
Max.Torque of engine	N.m/rpm	980/1400
Min.Turing Radius	m	11
Max.Gradeabilitg	%	28
Max.Trave Speed	km/h	65
Approach Angle	°	18
Angle of Departure	°	10
Outriggers Distance(longitudinalXlateral)	m	5.33×5.9

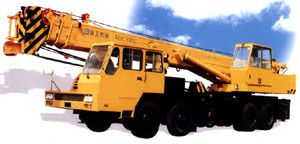

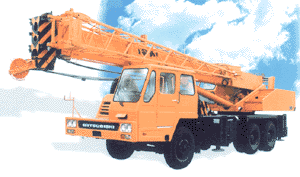

QY32C hydraulic mobile crane

Max.Rated Lifting Capacity	kg	32000
Max.Lifting Height	m	40.85
Main Boom	m	4 sections 10.4－32
Jib	m	7.5
Max.Hoisting Moment	kN.m	956
Max.Lifting Speed(single rope)	m/min	140
Slewing Speed	r/min	≤2.5
Outline Dimensions	m	12.75×2.5×3.53
Weight Data	t	33.5
Chassis Model	Self-made XZ32
Diesel engine model	WD615.61A M11-C290 WD615.61
Max.Power of engline	kW/(r/min)	193/2200　216/2100 191/2300
Max.Torque of engine	N.m/(r/min)	1100/1400　1329/1300 828/1600
Min.Turing Radius	m	12
Max.Gradeability	%	29　25　29
Max.Trave Speed	km/h	63　68　75
Approach Angle	°	16
Angle of Departure	°	12
Outriggers Distance(longitudinalXlateral)	m	5.31×5.9

QY40 Hydraulic mobile crane

Max.Rated Lifting Capacity	kg	40000
Max.Lifting Height	m	46.8
Main Boom	m	4 sections 11-33.5
Jib	m	2 sections 8.5-13.5
Max.Hoisting Moment	kN.m	1401
Max.Lifting Speed(single rope)	m/min	118
Slewing Speed	r/min	≤2
Outline Dimension	m	13.65×2.75×3.46
Weight Data	t	37.51
Chassis Model	,	Self-made XZ40
Diesel engine model	,	Steyr WD615.61
Max.Power of engline	kw/rpm	191/2600
Max.Torque of engine	N.m/rpm	828/1600
Min.Turing Radius	m	12
Max.Gradeability	%	37
Max.Travel Speed(single rope)	km/h	68
Approach Angle	°	16
Angle of Departure	°	10
Outriggers Distance(longitudinalXlateral)	m	5.45×6.2

QY35K Hydraulic mobile crane

Introduction
QY35K belongs to one of "K" series products.With a max. lifting load of 35t at 3 m working radius,it has a boom of 4 sections which are of large arc hexagon profile and two sections of side jibs. Derriking with a single front cylinder,double indepandant winchs,pilot hydraulic proportion control system, full and spacious cabin with good eyeview,environment friendly engine,complete security fittings.The garevity center is lower,ensuring high stability and fast travelling speed.It is of high manuvorbility and can be used in various working occasions.

Technical data in travel state
Dimensions	，	，	，
Overall length	mm	，	12463
Overall width	mm	，	2500
Overall height	mm	，	3280
Wheel base	，	，	，
1st axle	mm	，	1520
2nd axle	mm	，	3815
3rd axle	mm	，	1350
Track	，	，	，
1st track	mm	，	2079
2nd track	mm	，	1834
weight	，	，	，
Dead weight in travel state	kg	，	32050
Axle load	，	，	，
1st axle	kN	，	11350
2nd axle	kN	，	20700
power	，	，	，
Model of engine	，	steyrWD615.67A	CumminsMII-C290
Engine rated output	kN/(r/min)	206/2200	216/2100
rated torque	N.m/(r/min)	1100/1400	1200/1400
rated turning speed	r/min	2200	2100
Travel	，	，	，
Travel speed	，	，	，
Max.travel speed	km/h	72	69
Min. travel speed	km/h	2.9	4.6
Turning diameter	，	，	，
Min. turning diameter	m	24	24
Min.turning diameter at boom tip	m	25	25
Min.ground clearance	mm	260	260
Approach angle	°	16	16
Depature angle	°	15	15
Braking distance(at 30km/h)	m	≤10	≤10
Max. gradability	%	30	29
Fuel consumption of 100km	L	30	30

technical data for lifting operation
lifting perfomance	，	，
Max.total rated lifting load	t	35
Min.rated working radius	m	3
Turning radius at swing table tail	mm	3055
Max.load moment	，	，
Base boom	kN.m	1166
Full-extent boom	kN.m	644.8
Outrigger extension distance	，	，
Longitudinal	m	5.35
Lateral	m	6.0
Lifting height	，	，
Base boom	m	10.5
Full-extent boom	m	33
Full-extent boom+jib	m	48.7
Boom length	，	，
Base boom	m	10.5
Full-extent boom	m	33
Full-extent boom+jib	m	48
Attaching angle for jib	°	0、15、30
Working speed degree	，	，
Boom elevating time	，	，
Boom hoisting	S	80
Boom falling	S	50
Boom telescoping time	，	，
Full extending	S	100
Full retracting	S	70
Max.slewing speed	r/min	2
Outrigger telescoping time	，	，
Outrigger beam extending synchronously	S	35
Outrigger bem retracting synchronously	S	30
Outrigger jack extending	S	40
Outrigger jack retracting synchronously	S	25
Hoisting speed(single rope)	，	，
Main winch with full load	m/min	85
Main winch without load	m/min	110
Auxiliary winch with full load	m/min	80
Auxiliary winch without load	m/min	100
Sound level outside cabin	dB(A)	≤118
Sound level inside cabin	dB(A)	≤90

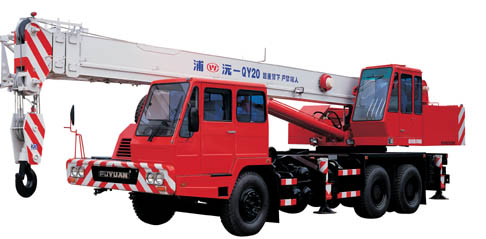

QY20A Hydraulic mobile crane

Max.Rated Lifting Capacity	kg	20000
Max.Lifting Height	m	33.8
Main Boom	m	3 sections 10.2-26.2
Jib	m	7.5
Max.Hoisting Moment	kN.m	622
Max.Lifting Speed(single rope)	m/min	90
Slewing Speed	r/min	≤3
Outline Dimension	m	12.3×2.5×3.48
Weight Data	t	23.8
Chassis Model	,	Mitsubishi K203LAZ5
Diesel engine model	,	6D22-1A
Max.Power of engline	kw/rpm	165/2200
Max.Torque of engine	N.m/rpm	764/1400
Min.Turing Radius	m	10
Max.Gradeabilitg	%	25
Max.Travel Speed	km/h	63
Approach Angle	°	21
Angle of Departure	°	10.5
Outriggers Ditance(longitudinalXlateral)	m	4.72×5.4

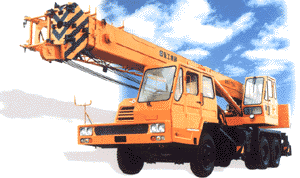

QY25A Hydraulic mobile crane

Max.Rated Lifting Capacity	kg	25000
Max.Lifting Height	m	32
Main Boom	m	3 sections 10.2-25
Jib	m	7.5
Max.Hoisting Moment	kN.m	932
Max.Lifting Speed(single rope)	m/min	120
Slewing Speed	r/min	≤3
Outline Dimension	m	12.25×2.5×3.5
Weight Data	t	29.09
Chassis Model	,	Self-made QY25
Diesel engine model	,	D6114ZG33A Hangzhou×6130 Shanghai 6135Q-9
Max.Power of engline	kw/rpm	152/2200 154/2100 162/2200
Max.Torque of engine	N.m/rpm	790/1400 780/1300 784/1400
Min.Turing Radius	m	10
Max.Gradeability	%	24
Max.Travel Speed	km/h	72
Approach Angle	°	21
Angle of Departure	°	11
Outriggers Distance(longitudinalXlateral)	m	5.07×5.4

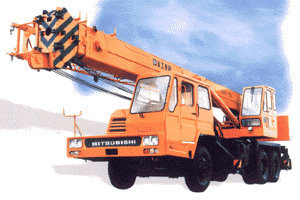

QY25D Hydraulic mobile crane

Max.Rated Lifting Capacity	kg	25000
Max.Lifting Height	m	32
Main Boom	m	3 sections 10.2-25
Jib	m	7.5
Max.Hoisting Moment	kN.m	750
Max.Lifting Speed(single rope)	m/min	120
Slewing Speed	r/min	≤2.5
Outline Dimension	m	12.25×2.5×3.5
Weight Data	t	24.67
Chassis Model	,	Mitsubishi K203LAZ6
Diesel engone model	,	6D22-1A
Max.Power of engline	kw/rpm	165/2200
Max.Torque of engine	N.m/rpm	765/1400
Min.Turing Radius	m	10.5
Max.Gradeability	%	28
Max.Travel Speed	km/h	65
Approach Angle	°	21
Angle of Departure	°	11
Outriggers Distance(longitudinalXlateral)	m	4.8×5.7

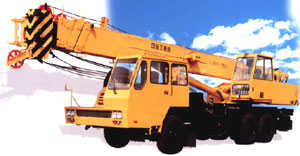

QY25E Hydraulic mobile crane

Max.Rated Lifting Capacity	kg	25000
Max.Lifting Height	m	39.2
Main Boom	m	4 sections 10.5-31.5
Jib	m	7.5
Max.Hoisting Moment	kN.m	735
Max.Lifting Speed(single rope)	m/min	120
Slewing Speed	r/min	≤3
Outline Dimension	m	12.38×2.5×3.5
Weight Data	t	26.4
Chassis Model	,	Self-made XZ25
Diesel engine model	,	D6114ZG33A WD615.61 WD615.64 Shanghai 6135Q-9
Max.Power of engline	kw/rpm	152/2200 191/2600 175/2200 162/2200
Max.Torque of engine	N.m/rpm	790/1400 828/1600 1000/1400 785/1400
Min.Turing Radius	m	10
Max.Gradeability	%	22 32 33 23
Max.Travel Speed	km/h	62 75 63 62
Approach Angle	°	21
Angle of Departure	°	10.5
Outriggers Distance(longitudinalXlateral)	m	4.8×6

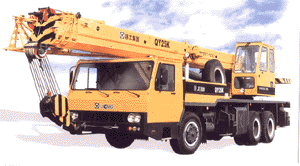

QY25K Hydraulic mobile crane

　　QY25K belongs to one of "K" series products. With a max.lifting load of 25t at 3.5 working radius, the crane has a boom of 4 sections which are of large arc hexagon profile and one section of jib.Derikking with a single front cylinder,double indepandant winchs,pilot hydraulic proportion control system,full and spacious cabin with good eyeview,environment friendly engine,complete security fittings.The density of the crane is low ,ensuring high stability and fast travelling speed.It is of high manuvorbility and can be used in various working occsions

Technical data in travel state
Dimensions	,	,	,
Overall length	mm	,	12210
Overall width	mm	,	2500
Overall hight	mm	,	3260
Wheel base	,	,	,
1st axle	mm	,	4025
2nd axle	mm	,	1350
Track	,	,	,
1st track	mm	,	2079
2nd track	mm	,	1834
weight	,	D6114	M11-C250
Dead weight in travel stae	kg	25700	25970
Axle load	,	,	,
1st axle	kN	64.19	66.74
2nd axle	kN	187.67	187.77
powe	,	,	,
Engine rated output	kN/(r/min)	152/2200	182/2100
Rated torque	N.m/(r/min)	790/1400	1035/1300
Rated turning speed	r/min	2200	2100
travel	,	,	,
Travel speed	,	,	,
Max.travel speed	km/h	72	69
Min. travel speed	km/h	2.9	3.75
Turning diameter	,	,	,
Min.turning diameter	m	21.5	21.5
Min. turning diameter at boom tip	m	24.43	24.43
Min. ground clerance	mm	260	260
Approch angle	°	16	16
Depature angle	°	13	13
30km/h）Braking distance(at 30km/h)	m	≤10	≤10
Max.gradeability	%	26	29
Fuel consumption of 100 km	L	35	35

Technical data for lifting operation
Lifting performance	,	,
Max.total rated lifting load	t	25
Min. rated working radius	m	3
Turning radius at swing table tail	mm	3065
Max.load moment	,	,
Base boom	kN.m	941
Full-extent boom	kN.m	439
Full-extent boom+jib	kN.m	331
Outrigger extension distance	,	,
Logitudinal	m	4.8
Lateral	m	6.0
Lifting hight	,	,
Base boom	m	10.5
Full-extent boom	m	32
Full-extent boom+jib	m	40.15
Boom length	,	,
Base boom	m	10.4
Full-extent boom	m	32
Full-extent boom+jib	m	40.15
Attaching angle for jib	°	0、15、30
Working speed degree	,	,
Boom elevating time	,	,
Boom hoisting	S	75
Boom falling	S	45
Boom telescoping time	,	,
Full extending	S	100
Full retracting	S	60
Max.slewing speed	r/min	2.5
Outrigger telescoping tome	,	,
Outrigger beam extending synchronously	S	35
Outrigger beam retracting synchronously	S	30
Outrigger jack extending synchronously	S	40
Outrigger jack retracting synchronously	S	35
Hoisting speed(single rope)	,	,
Main winch with full load	m/min	70
Main winch without load	m/min	100
Auxiliary winch with full load	m/min	60
Auxiliary winch without load	m/min	100
Sound level outside cabin	dB(A)	≤118
Sound level inside cabin	dB(A)	≤90

QY16 Hydraulic mobile crane

Max.Rated Lifting Capacity	kg	16000
Max.Lifting Height	m	29.7
Main Boom	m	3 sections 9.8-23.5
Jib	m	7
Max.Hoisting Moment	kN.m	711
Max.Lifting Speed(single rope)	m/min	100
Slewing Speed	r/min	≤2.5
Outline Dimension	m	12.09×2.5×3.48
Weight Data	t	24.3
Chassis Model	,	Self-mad QY16A
Diesel engine model	,	D6114ZG33A Hangzhou X6130 (Shanghai 6135Q-9A)
Max.Power of engline	kw/rpm	152/2200　 154/(162)/2200
Max.Torque of engine	N.m/rpm	790/1400 780(784)/1300
Min.Turing Radius	m	10
Max.Gradeability	%	22
Max.Travel Speed	km/h	66 70(66)
Approach Angle	°	21
Angle of Departure	°	18
Outriggers Distance(longitudinalXlateral)	m	4.4×4.8

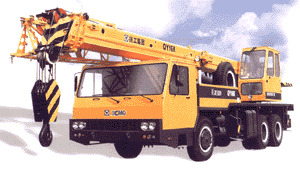

QY16K Hydraulic mobile crane

　　QY16K belongs to one of "K" series products.With a Max.lifting load of 16t/4 m ridius,it has a boom of three sections which are of large arc hexgone profile and a section of jib.Derikking with a single front cylinder,double indepandant winchs,pilot hydr.proportion control system,full and spacious cabin with bright eyeview,environment friendly engine,complete security fittings.The density center of crane is low, creating high stability and high travelling speed.The crane is of high monuvrability and can be used in various working occsions.

Technical data for lifting operation
main lifting performance	,	,
Max.total rated lifting load	t	16
Min.rated working radius	m	3
Turning radius at swing table tail	mm	2765
Max.load moment	,	,
Base boom	kN.m	771.48
Full-extent boom	kN.m	449.8
Full-extent+jib	kN.m	327.7
Outrigger extension distance	,	,
Logitudinal	m	4.58
Lateral	m	5.4
Lifting hight	,	,
base boom	m	10.17
Full-extent boom	m	24.7
Full-extent boom+jib	m	32.3
Boom length	,	,
base boom	m	10
Full-extent boom	m	24.2
Full-extent boom+jib	m	32.35
Attaching angle for jib	°	0、15、30
Lifting speed	,	,
Boom elevating time	,	,
Boom hoisting	S	50
Boom falling	S	27
Boom telescoping time	,	,
Full extending	S	73
Full retracting	S	46
Max.swing speed	r/min	2.1
Outrigger telescoping time	,	,
Outrigger beam extending synchronously	S	21
Outrigger beam retracting synchronously	S	13
Outrigger jack extending synchronously	S	21
Outrigger jack retracting synchronously	S	20
Hoisting speed (single rope)	,	,
Main winch with full load	m/min	82
Main winch without load	m/min	100
Auxiliary winch with full load	m/min	72
Auxiliary winch without load	m/min	100
Sound level outside cabin	dB(A)	118
Sound level inside cabin	dB(A)	90

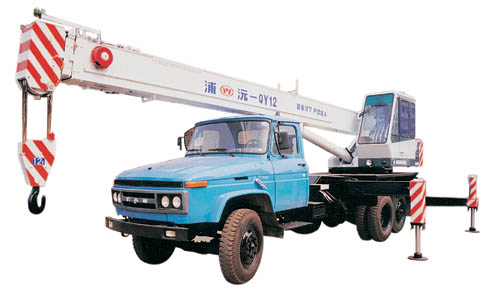

QY12 Hydraulic mobile crane

Max.Rated Lifting Capacity	kg	12000
Max.Lifting Height	m	21
Main Boom	m	3 sections 8.6-21
Jib	m	,
Max.Hoisting Moment	kN.m	410
Max.Lifting Speed(single rope)	m/min	70
Slewing Speed	r/min	≤2.3
Outline Dimension	m	10.2×2.5×3.2
Weight Data	t	16.02
Chassis Model	,	Self-made XZ12
Diesel Model	,	D6114ZG33A Hangzhou X6130
Max.Power of engline	kw/rpm	152/2200 154/2200
Max.Torque of engine	N.m/rpm	790/1400 780/1300
Min.Turing Radius	m	9
Max.Gradeabilitg	%	26
Max.Travel Speed	km/h	68
Approach Angle	°	21
Angle of Departure	°	10.7
Outriggers Distance(longitudinalXlateral)	m	3.98×4.8

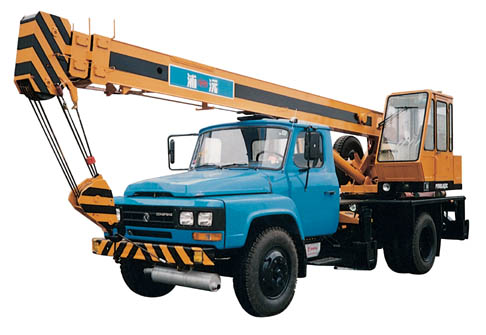

QY8B Truck crane

Max.Rated Lifting Capacity	kg	8000
Max.Lifting Height	m	17.87
Main Boom	m	2 sections 7.3-12.3
Jib	m	5.5
Max.Hoisting Moment	kN.m	235
Max.Lifting Speed(single rope)	m/min	84
Slewing Speed	r/min	≤2.4
Outline Dimension	m	9.17×2.4×3.1
Weight Data	t	9.68
Chassis Model	,	Dongfen EQ1092F2
Diesel engine model	,	EQ6100-1
Max.Power of engline	kw/rpm	99/3000
Max.Torque of engine	N.m/rpm	353/1200
Min.Turing Radius	m	8
Max.Gradeability	%	28
Max.Travel Speed	km/h	75
Approach Angle	°	29
Angle of Departure	°	14
Outriggers Distance(longitudinalXlateral)	m	3.805×4.0

QY80 Hydraulic mobile crane

Max.Rated Lifting Capacity	kg	80000
Max.Lifting Height	m	60
Main Boom	m	12-44
Jib	m	2 sections 9.5-16
Max.Hoisting Moment	kN.m	2669
Max.Lifting Speed(single rope)	m/min	82
Slewing Speed	r/min	0-1.6
Outline Dimension	m	14.4×2.75×3.64
Weight Data	t	60
Diesel engine model	Cummins NTA855-C450(Chassis)
Max.Power of engline	kw/rpm	336/2100
Max.Torque of engine	N.m/rpm	1831/1400
Min.Turing Radius	m	12
Max.Gradeability	%	22
Max.Trave Ling Speed	km/h	85
Approach Angle	°	19
Angle of Departure	°	20
Outriggers Distance	m	7×6.6

Tower crane

　　We designed and produced the first Chinese concrete pump in China in 1972.
　　In 1993, we developed a new mature generation of concrete pump, which marked the beginning of foreign product’s retreat from the Chinese market.
　　 In 1998, in the building of Macao Sightseeing Tower, Qiantang River Bridge of the Nei-Kun Railway and etc, the Zoomlion pump continual ly set new records for Chinese Concrete pump of pumping height, horizontal delivery, and drop height.
　　 In 2002, the Fenghuo Mountain Tunnel of Qinghai—Tibet Railway was completed with a new world record of the altitude of the pumping job site-5170M above sea level.

FEATURES

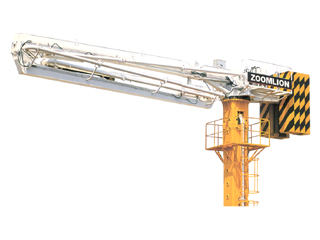

TC series of tower cranes and TCP series tower cranes & placing boom are primary products of ZOOMLION. They are self-climbing tower cranes with an upper slewing mechanism, a trolley mechanism and a horizontal jib. Tower crane series contain many types, such as TC5013, TC5015, TC5613, TC5023, TC5518, TC6020, TC7030, TCP5613/38, TCP5023/38, etc. Using PLC intelligent system in electric control system, stepless speed regulated and frequency altering in slewing mechanism, trolley mechanism and the hoisting mechanism also....

The hoisting mechanism
Double-speed coil winding rotor braked by eddy to alter speed or stepless speed regulated and frequency altering are used in the system.
Big strong drum with LEBUS groove.

The slewing mechanism

Stepless speed regulated and frequency altering make starting and braking smoothly and position correctly and rapidly.

The performance and operation is advanced in the world.

The trolley mechanism

Stepless speed regulated and frequency altering.

Running with less impact and operating smoothly.

Control system

PLC intelligent control system can self-diagnose electric fault and give corresponding alarms with different sounds and lights. The main electric elements are using world-renowned products.

Specifications

TC5013

TC5015

TC5613

TCP5613/38

TC5518

TC5023

TCP5023/38

TC6020

TC7030

Rated hoisting moment

kN.m

800

840

1160

1280

1380

1660

2880

Max hoisting capacity

Working radius

2.5~50/44/38

2.5~56/50/44

3~56/50/44

2.5~55/50

2.5~50/44/38

2.5~60/54/48

2.6~70/65/60/55/50/45

Radius of placing boom

1.5~38

Lifting height of stationary crane

40.5

40.4

54.4

61.3

Hoisting

Speed of 2 fall

m/min

0~80 or 80/40

0~100 or 100/50

0~120

Speed of 4 fall

m/min

0~40 or 40/20

0~50 or 50/25

0~60

Power

Slewing

Speed of slewing

r/min

0~0.6

0~0.8

0~0.7

0~0.6

Power

5.5

4×2

5.5×2

7.5×2

Trolleying

Speed of trolleying

m/min

0~42

0~55

0~60

Power

3.3

5.5

Sum power of stationary

32.8

68.5

71.5

95.5

Working temperature

℃

-20~+40

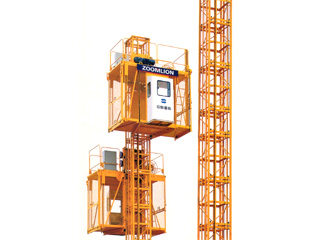

Building hoists

FEATURES

　　Transmission system is driven by double motors and double reductors. The motor is equipped with a direct current electromagnetic brake, which can trace and adjust the gap of the brake automatically. The reductor is made up of a double enveloping worm screw and worm gear pair, with the advantage of small size, efficient, high carrying capacity, long service life etc.

　　　Using I-DEAS to analyze and calculate the steel structure make the design scientific and reasonable.

　　　The hoist is equipped with many protected-safe devices and weight displaying gauge.

Specifications

Parameter	Unit	SC100	SC100/100	SCD200		SCD200/200
Rated load capacity	kg	1000	2×1000	2000		2×2000
Number of Rated load	Person	12	2×12	24		2×24
Rated lifting speed	m/min	40
Max lifting height	m	200
Motor power(JC25％)	kW	2×11	2×2×11	2×11		2×2×11
Cage internal dimensions (L×W×H)	m	3×1.3×2.2
Cage weight (with operator’s cab and transmission system)	kg	1700
Size of mast section	m	0.8×0.8×1.508
Weight of mast section	kg	170
Counterweight	kg			1350	2×1350

Fully hydraulic truck crane

QY100T

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	100000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	3000
BOOM MAX.LIFTING HEIGHT	m	44
JIB MAX.LIFTING HEIGHT	m	59
SLEWING SPEED	r/min	0~1.76
MAX.TRAVELLING SPEED	km/h	71
MAX.GRADEABILITY	%	30
APPROACH ANGLE	°	25
DEPARTURE ANGLE	°	14
SELF-WEIGHT IN TRAVELLING CONDITION	kg	62300
OVERALL DIMENSIONS(L×W×H)	mm	15460×3000×3750
OUTRIGGER LONGITUDINAL SPAN	m	6.74
OUTRIGGER TRANSVERSAL SPAN	m	7.8
BOOM LENGTH	m	12~44
JIB LENGTH	m	9.5/15
CHASSIS		PY5660
DIESEL MODEL		Cummins Ism 450(Euro II)
MAX.POWER OF ENGINE	kw/rpm	336/2100
MAX.TORQUE OF ENGINE	N.m	1966

QY65T

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	65000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	2160
BOOM MAX.LIFTING HEIGHT	m	41
JIB MAX.LIFTING HEIGHT	m	56
SLEWING SPEED	r/min	0~1.8
MAX.TRAVELLING SPEED	km/h	71
MAX.GRADEABILITY	%	28
APPROACH ANGLE	°	18.5
DEPARTURE ANGLE	°	10.6
SELF-WEIGHT IN TRAVELLING CONDITION	kg	45000
OVERALL DIMENSIONS(L×W×H)	mm	13890×2750×3650
OUTRIGGER LONGITUDINAL SPAN	m	5.95
OUTRIGGER TRANSVERSAL SPAN	m	7.0
BOOM LENGTH	m	11.2~41.5
JIB LENGTH	m	9/15
CHASSIS		PY5450
DIESEL MODEL		Cummins M11-C330E20(Euro II)
MAX.POWER OF ENGINE	kw/rpm	246/2100
MAX.TORQUE OF ENGINE	N.m	1458/1300

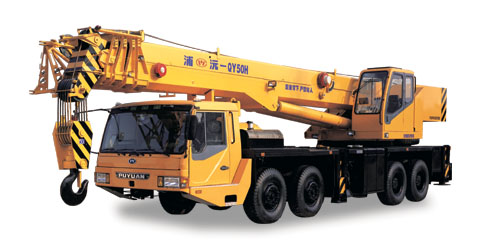

QY50H

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	60000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	1530
BOOM MAX.LIFTING HEIGHT	m	40
JIB MAX.LIFTING HEIGHT	m	56.5
SLEWING SPEED	r/min	0~2
MAX.TRAVELLING SPEED	km/h	66
MAX.GRADEABILITY	%	30
APPROACH ANGLE	°	18
DEPARTURE ANGLE	°	12
SELF-WEIGHT IN TRAVELLING CONDITION	kg	41000
OVERALL DIMENSIONS(L×W×H)	mm	13600×2750×3550
OUTRIGGER LONGITUDINAL SPAN	m	5.75
OUTRIGGER TRANSVERSAL SPAN	m	6.70
BOOM LENGTH	m	10.8~40.2
JIB LENGTH	m	9/15
CHASSIS		PY5410
DIESEL MODEL		WD615.67A(Euro II)
MAX.POWER OF ENGINE	kw/rpm	206/2200
MAX.TORQUE OF ENGINE	N.m	1160/1300~1600

QY50D

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	60000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	1800
BOOM MAX.LIFTING HEIGHT	m	40
JIB MAX.LIFTING HEIGHT	m	54.5
SLEWING SPEED	r/min	0~2
MAX.TRAVELLING SPEED	km/h	66
MAX.GRADEABILITY	%	28
APPROACH ANGLE	°	18
DEPARTURE ANGLE	°	10
SELF-WEIGHT IN TRAVELLING CONDITION	kg	40400
OVERALL DIMENSIONS(L×W×H)	mm	13600×2750×3550
OUTRIGGER LONGITUDINAL SPAN	m	5.45
OUTRIGGER TRANSVERSAL SPAN	m	6.7
BOOM LENGTH	m	10.8~40.2
JIB LENGTH	m	15
CHASSIS		PY5400
DIESEL MODEL		WD615.67A(Euro II)
MAX.POWER OF ENGINE	kw/rpm	206/2200
MAX.TORQUE OF ENGINE	N.m	1160/1300~1600

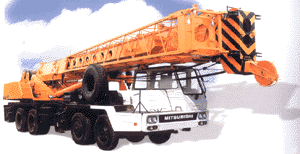

QY50A

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	50500
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	1666
BOOM MAX.LIFTING HEIGHT	m	33
JIB MAX.LIFTING HEIGHT	m	46.2
SLEWING SPEED	r/min	0~2
MAX.TRAVELLING SPEED	km/h	65
MAX.GRADEABILITY	%	27
APPROACH ANGLE	°	18
DEPARTURE ANGLE	°	10
SELF-WEIGHT IN TRAVELLING CONDITION	kg	39500
OVERALL DIMENSIONS(L×W×H)	mm	13150×2750×3760
OUTRIGGER LONGITUDINAL SPAN	m	5.5
OUTRIGGER TRANSVERSAL SPAN	m	6.5
BOOM LENGTH	m	10.6~33
JIB LENGTH	m	8.2~13.2
CHASSIS		PY5400
DIESEL MODEL		WD615.67A(Euro II)
MAX.POWER OF ENGINE	kw/rpm	206/2200
MAX.TORQUE OF ENGINE	N.m	1160/1300~1600

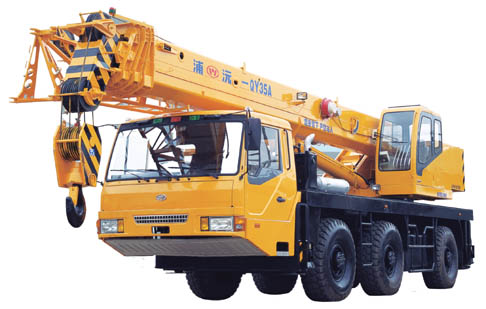

QY35A

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	35000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	1210
BOOM MAX.LIFTING HEIGHT	m	31
JIB MAX.LIFTING HEIGHT	m	45.5
SLEWING SPEED	r/min	0~2.5
MAX.TRAVELLING SPEED	km/h	70
MAX.GRADEABILITY	%	30
APPROACH ANGLE	°	19
DEPARTURE ANGLE	°	16
SELF-WEIGHT IN TRAVELLING CONDITION	kg	34300
OVERALL DIMENSIONS(L×W×H)	mm	12370×2500×3720
OUTRIGGER LONGITUDINAL SPAN	m	7.81
OUTRIGGER TRANSVERSAL SPAN	m	6.02
BOOM LENGTH	m	9.75~30.45
JIB LENGTH	m	8.55~14.55
CHASSIS		WS5350
DIESEL MODEL		WD615.67A(Euro II)
MAX.POWER OF ENGINE	kw/rpm	206/2200
MAX.TORQUE OF ENGINE	N.m	1160/1300~1600

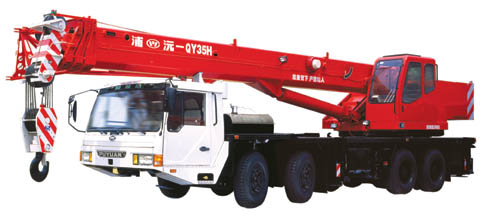

QY35H

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	35000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	1120
BOOM MAX.LIFTING HEIGHT	m	34
JIB MAX.LIFTING HEIGHT	m	48
SLEWING SPEED	r/min	0~2.4
MAX.TRAVELLING SPEED	km/h	72
MAX.GRADEABILITY	%	35
APPROACH ANGLE	°	18
DEPARTURE ANGLE	°	12
SELF-WEIGHT IN TRAVELLING CONDITION	kg	32400
OVERALL DIMENSIONS(L×W×H)	mm	13252×2500×3472
OUTRIGGER LONGITUDINAL SPAN	m	5.33
OUTRIGGER TRANSVERSAL SPAN	m	6.02
BOOM LENGTH	m	10.55~33.5
JIB LENGTH	m	8.55~14.55
CHASSIS		PY5370
DIESEL MODEL		WD615.67A(Euro II)
MAX.POWER OF ENGINE	kw/rpm	206/2200
MAX.TORQUE OF ENGINE	N.m	1100/1300~1600

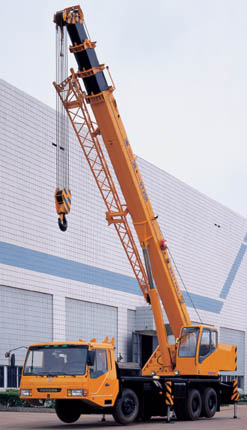

QY35-6

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	35000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	1210
BOOM MAX.LIFTING HEIGHT	m	31
JIB MAX.LIFTING HEIGHT	m	45.5
SLEWING SPEED	r/min	0~2.5
MAX.TRAVELLING SPEED	km/h	70
MAX.GRADEABILITY	%	30
APPROACH ANGLE	°	19
DEPARTURE ANGLE	°	16
SELF-WEIGHT IN TRAVELLING CONDITION	kg	34300
OVERALL DIMENSIONS(L×W×H)	mm	12370×2500×3720
OUTRIGGER LONGITUDINAL SPAN	m	5.33
OUTRIGGER TRANSVERSAL SPAN	m	6.02
BOOM LENGTH	m	9.75~30.45
JIB LENGTH	m	8.55~14.55
CHASSIS		PY5350
DIESEL MODEL		WD615.67A(Euro II)
MAX.POWER OF ENGINE	kw/rpm	193/2200
MAX.TORQUE OF ENGINE	N.m	1100/1300~1600

QY25H

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	25000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	918
BOOM MAX.LIFTING HEIGHT	m	32.5
JIB MAX.LIFTING HEIGHT	m	40.3
SLEWING SPEED	r/min	0~2.54
MAX.TRAVELLING SPEED	km/h	70
MAX.GRADEABILITY	%	24
APPROACH ANGLE	°	16.6
DEPARTURE ANGLE	°	11.4
SELF-WEIGHT IN TRAVELLING CONDITION	kg	29300
OVERALL DIMENSIONS(L×W×H)	mm	12900×2500×3320
OUTRIGGER LONGITUDINAL SPAN	m	5.16
OUTRIGGER TRANSVERSAL SPAN	m	5.9
BOOM LENGTH	m	10.2~32
JIB LENGTH	m	7.5
CHASSIS		PY5312
DIESEL MODEL		WD615.67A(Euro II)
MAX.POWER OF ENGINE	kw/rpm	175/2200
MAX.TORQUE OF ENGINE	N.m	1000/1300~1500

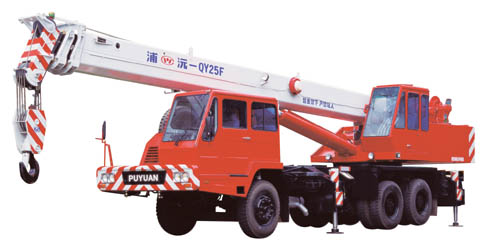

QY25F

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	25000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	1020
BOOM MAX.LIFTING HEIGHT	m	26
JIB MAX.LIFTING HEIGHT	m	35
SLEWING SPEED	r/min	0~2.5
MAX.TRAVELLING SPEED	km/h	72
MAX.GRADEABILITY	%	28
APPROACH ANGLE	°	18
DEPARTURE ANGLE	°	11
SELF-WEIGHT IN TRAVELLING CONDITION	kg	27500
OVERALL DIMENSIONS(L×W×H)	mm	12900×2500×3400
OUTRIGGER LONGITUDINAL SPAN	m	5.16
OUTRIGGER TRANSVERSAL SPAN	m	5.9
BOOM LENGTH	m	10.4~26
JIB LENGTH	m	8
CHASSIS		PY5311
DIESEL MODEL		D6114LQ2B
MAX.POWER OF ENGINE	kw/rpm	193/26000
MAX.TORQUE OF ENGINE	N.m	830/1600~1700

QY25B

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	25000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	934
BOOM MAX.LIFTING HEIGHT	m	25.56
JIB MAX.LIFTING HEIGHT	m	32.48
SLEWING SPEED	r/min	0~2.4
MAX.TRAVELLING SPEED	km/h	74
MAX.GRADEABILITY	%	30
APPROACH ANGLE	°	18
DEPARTURE ANGLE	°	11
SELF-WEIGHT IN TRAVELLING CONDITION	kg	27300
OVERALL DIMENSIONS(L×W×H)	mm	12730×2500×3500
OUTRIGGER LONGITUDINAL SPAN	m	5.16
OUTRIGGER TRANSVERSAL SPAN	m	5.9
BOOM LENGTH	m	10.2~25.5
JIB LENGTH	m	7.335
CHASSIS		PY5311
DIESEL MODEL		D6114LQ2B
MAX.POWER OF ENGINE	kw/rpm	191/2600
MAX.TORQUE OF ENGINE	N.m	830/1600~1700

QY25E

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	25000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	918
BOOM MAX.LIFTING HEIGHT	m	32.5
JIB MAX.LIFTING HEIGHT	m	40.3
SLEWING SPEED	r/min	0~2.4
MAX.TRAVELLING SPEED	km/h	72
MAX.GRADEABILITY	%	28
APPROACH ANGLE	°	18
DEPARTURE ANGLE	°	11
SELF-WEIGHT IN TRAVELLING CONDITION	kg	29200
OVERALL DIMENSIONS(L×W×H)	mm	12750×2500×3225
OUTRIGGER LONGITUDINAL SPAN	m	5.16
OUTRIGGER TRANSVERSAL SPAN	m	5.9
BOOM LENGTH	m	10.2~32
JIB LENGTH	m	7.5
CHASSIS		PY5311
DIESEL MODEL		D6114LQ2B
MAX.POWER OF ENGINE	kw/rpm	191/2600
MAX.TORQUE OF ENGINE	N.m	830/1600~1700

QY20A

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	20000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	825
BOOM MAX.LIFTING HEIGHT	m	25
JIB MAX.LIFTING HEIGHT	m	32.2
SLEWING SPEED	r/min	0~2.5
MAX.TRAVELLING SPEED	km/h	70
MAX.GRADEABILITY	%	25
APPROACH ANGLE	°	20
DEPARTURE ANGLE	°	12
SELF-WEIGHT IN TRAVELLING CONDITION	kg	23670
OVERALL DIMENSIONS(L×W×H)	mm	12100×2500×3430
OUTRIGGER LONGITUDINAL SPAN	m	4.68
OUTRIGGER TRANSVERSAL SPAN	m	5.6
BOOM LENGTH	m	9.8~24.4
JIB LENGTH	m	7.5
CHASSIS		PY5250
DIESEL MODEL		Hangfa X6130
MAX.POWER OF ENGINE	kw/rpm	162/2200
MAX.TORQUE OF ENGINE	N.m	784/1300~1500

QY16C-9

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	16000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	737
BOOM MAX.LIFTING HEIGHT	m	24.5
JIB MAX.LIFTING HEIGHT	m	31
SLEWING SPEED	r/min	0~2.5
MAX.TRAVELLING SPEED	km/h	69
MAX.GRADEABILITY	%	25
APPROACH ANGLE	°	20
DEPARTURE ANGLE	°	12
SELF-WEIGHT IN TRAVELLING CONDITION	kg	21200
OVERALL DIMENSIONS(L×W×H)	mm	11780×2500×3225
OUTRIGGER LONGITUDINAL SPAN	m	4.7
OUTRIGGER TRANSVERSAL SPAN	m	5.4
BOOM LENGTH	m	9.7~24
JIB LENGTH	m	7
CHASSIS		PY5250
DIESEL MODEL		Hangfa X6130 OR D6114ZLQ5B
MAX.POWER OF ENGINE	kw/rpm	162/2200
MAX.TORQUE OF ENGINE	N.m	784/1300~1500

QY16C-8

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	16000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	737
BOOM MAX.LIFTING HEIGHT	m	24.5
JIB MAX.LIFTING HEIGHT	m	31
SLEWING SPEED	r/min	0~2.5
MAX.TRAVELLING SPEED	km/h	69
MAX.GRADEABILITY	%	25
APPROACH ANGLE	°	20
DEPARTURE ANGLE	°	12
SELF-WEIGHT IN TRAVELLING CONDITION	kg	21200
OVERALL DIMENSIONS(L×W×H)	mm	11780×2500×3225
OUTRIGGER LONGITUDINAL SPAN	m	4.7
OUTRIGGER TRANSVERSAL SPAN	m	5.4
BOOM LENGTH	m	9.7~24
JIB LENGTH	m	7
CHASSIS		PY5250-8
DIESEL MODEL		Hangfa X6130 OR D6114ZLQ5B
MAX.POWER OF ENGINE	kw/rpm	162/2200
MAX.TORQUE OF ENGINE	N.m	784/1300~1500

QY16C-7

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	16000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	737
BOOM MAX.LIFTING HEIGHT	m	24.5
JIB MAX.LIFTING HEIGHT	m	31
SLEWING SPEED	r/min	0~2.5
MAX.TRAVELLING SPEED	km/h	69
MAX.GRADEABILITY	%	25
APPROACH ANGLE	°	19
DEPARTURE ANGLE	°	11
SELF-WEIGHT IN TRAVELLING CONDITION	kg	21300
OVERALL DIMENSIONS(L×W×H)	mm	12200×2500×3300
OUTRIGGER LONGITUDINAL SPAN	m	4.7
OUTRIGGER TRANSVERSAL SPAN	m	5.4
BOOM LENGTH	m	9.7~24
JIB LENGTH	m	7
CHASSIS		PY5250
DIESEL MODEL		Hangfa X6130 OR D6114ZLQ5B
MAX.POWER OF ENGINE	kw/rpm	162/2200
MAX.TORQUE OF ENGINE	N.m	784/1300~1500

QY12H

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	12000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	414
BOOM MAX.LIFTING HEIGHT	m	22.3
JIB MAX.LIFTING HEIGHT	m	27.5
SLEWING SPEED	r/min	0~3
MAX.TRAVELLING SPEED	km/h	78
MAX.GRADEABILITY	%	30
APPROACH ANGLE	°	16
DEPARTURE ANGLE	°	10.5
SELF-WEIGHT IN TRAVELLING CONDITION	kg	14780
OVERALL DIMENSIONS(L×W×H)	mm	10400×2500×3200
OUTRIGGER LONGITUDINAL SPAN	m	3.875
OUTRIGGER TRANSVERSAL SPAN	m	4.6
BOOM LENGTH	m	8.7~21.7
JIB LENGTH	m	6
CHASSIS		PY5170
DIESEL MODEL		Yuchai YC4112ZLQ(Euro II)
MAX.POWER OF ENGINE	kw/rpm	132/2300
MAX.TORQUE OF ENGINE	N.m	660/1300~1500

QY12C

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	12000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	414
BOOM MAX.LIFTING HEIGHT	m	21.7
JIB MAX.LIFTING HEIGHT	m	27.5
SLEWING SPEED	r/min	0~3
MAX.TRAVELLING SPEED	km/h	71
MAX.GRADEABILITY	%	27
APPROACH ANGLE	°	25
DEPARTURE ANGLE	°	13
SELF-WEIGHT IN TRAVELLING CONDITION	kg	15100
OVERALL DIMENSIONS(L×W×H)	mm	10400×2500×3200
OUTRIGGER LONGITUDINAL SPAN	m	3.8
OUTRIGGER TRANSVERSAL SPAN	m	4.6
BOOM LENGTH	m	8.7~21.7
JIB LENGTH	m	6
CHASSIS		PY5160
DIESEL MODEL		Hangfa X6130
MAX.POWER OF ENGINE	kw/rpm	132/2200
MAX.TORQUE OF ENGINE	N.m	720/1400~1600

QY12A

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	12000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	414
BOOM MAX.LIFTING HEIGHT	m	27.7
JIB MAX.LIFTING HEIGHT	m	33.7
SLEWING SPEED	r/min	0~3
MAX.TRAVELLING SPEED	km/h	80
MAX.GRADEABILITY	%	22
APPROACH ANGLE	°	28
DEPARTURE ANGLE	°	11.5
SELF-WEIGHT IN TRAVELLING CONDITION	kg	14450
OVERALL DIMENSIONS(L×W×H)	mm	10300×2500×3200
OUTRIGGER LONGITUDINAL SPAN	m	4.0
OUTRIGGER TRANSVERSAL SPAN	m	4.6
BOOM LENGTH	m	8.7~21.7
JIB LENGTH	m	6
CHASSIS		CA1143K2T2
DIESEL MODEL		CA6110Z5A1
MAX.POWER OF ENGINE	kw/rpm	132/2900
MAX.TORQUE OF ENGINE	N.m	392/1800~2000

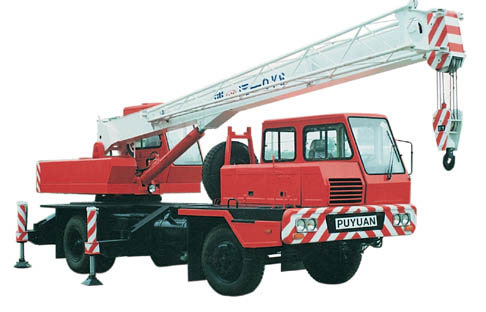

QY8C

Specifications

ITEM	UNIT	DATA
LIFTING CAPACITY	kg	8000
MAX LIFTING MOMENT WITH MIN.BOOM LENGTH	kN.m	235
BOOM MAX.LIFTING HEIGHT	m	18
SLEWING SPEED	r/min	0~3
MAX.TRAVELLING SPEED	km/h	90
MAX.GRADEABILITY	%	28
APPROACH ANGLE	°	28
DEPARTURE ANGLE	°	12
SELF-WEIGHT IN TRAVELLING CONDITION	kg	9500
OVERALL DIMENSIONS(L×W×H)	mm	9290×2450×3073
OUTRIGGER LONGITUDINAL SPAN	m	3.7
OUTRIGGER TRANSVERSAL SPAN	m	3.9
