China Best Products Jinma and LW-6, LW-7, LW-8 quick detached Backhoe Specification

JW03 backhoe for Jinma tractor(18 to 28 hp) $2980

YW6 sub frame for Jinma tractor(30hp) $3080

JW04 backhoe for Jinma tractor(30 to 45hp) $3280

LW-6 backhoe $2980

LW-7 backhoe $3280

LW-8 backhoe $3480

CW series for Changzhou tractors, SW series for Shandong tractors.

SW6 for Shandong tractor 30hp, sub frame $3080

SW7 for Shandong tractor 30 to 50hp, sub frame $3380

SW8 for Shandong tractor 55 to 80hp, sub frame $3580

CW6 for Changzhou tractor 30hp, sub frame $3080

CW7 for Changzhou tractor 30to 50hp, sub frame $3380

CW8 for Changzhou tractor 55 to 80hp, sub frame $3580

extra bucket $390

hydraulic pump $150, this pump is not covered by warranty.

Usually we have LW series backhoes in stock, ship out from China warehouse in 3 to 9 days, check with us when you order.

$500 deposit, balance before pick up for customers in the states and Canada. The deposit is non-refundable.

ship to major cities or basic port warehouse world wide

to door delivery from $700 for continental states

List of locations for pickup

We clear customs for USA and Canada, GST on top, customs from $250 if not order with tractor.

One year parts warranty from the manufacturer.

Jinma JW-3, JW-04 backhoe spec

　 JW-03 JW-04/HW-04
Tractor HP 18-25 30-45
BUCKET CAPACITY (M3): 0.036 0.048
BUCKET WIDTH: 0.3 M 　
OVERALL DIMENSIONS (DURING TRANSPORTATION): 2.3 X 4.5 X 1.6 M 　
MAXIMUM DIGGING DEPTH E (cm/inch): 180/70.9 180/70.9
MAXIMUM DIGGING RADIUS K (M): 2.8 2.8
BUCKET ROTATING ANGLE (DEGREE): 160 160
DISCHARGING HEIGHT B (M) 2 2
CONTROL LEVEL 4 　
EXTENSION WIDTH G (WHILE SUPPORTING LEG WORKING) 180cm/70.9" 　
WEIGHT: 500 kg/1000lb 　

1 cubic meter = 35.31 cubic feet

1 millimeter = 0.039 inch

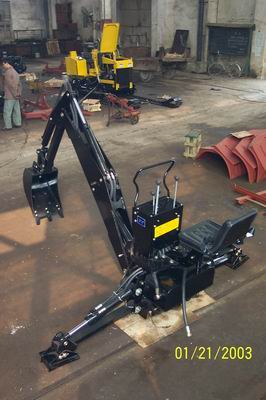

Specifications LW Series Quick Attach Type 3 Point Hitch Backhoe
Model
LW-6
LW-7
LW-8
Tractor Horsepower 18-30 35-45 50-80
Max.digging depth (mm/inch)
1850/73
2150/85
2640/104
Category I II II
Max.digging depth flat bottom (mm/inch)
1600/63
2000/79
2500/98
Max. digging height (mm/inch)
2500/98
3400/134
3510/138
Loadover heith (mm/inch)
1400/55
1760/69
2000/79
Transport height (mm/inch)
1733/68
1878/74
1952/77
Ground clearance (mm/inch)
280/11
290/11
290/11
Boom pivot height (mm/inch)
420/16
500/20
500/20
Straight wall digging depth (mm/inch)
895/35
1134/45
1446/57
Max.digging radius (mm/inch)
2800/110
3360/132
3930/155
Loading reach (mm/inch)
1044/41
1187/47
1945/77
Bucket rotation(angle)
160
160
160
Swing Arc(angle)
140
140
140
hydraulic pump type E310 E310 or E314 E314
　 10ml/r 10 or 14ml/r 14ml/r
　

2000rpm
Valve standard pressure (MPa/psi)

16/2320
valve over-loading protection (MPa/psi)

7±1/1015±145
hydraulic input(L/m or GPM)

28/7
Packing size (mm) 2300 x 800 x 1100
Net weight(kg/lb) 460/1012 570/1254 640/1408
Gross weight(kg/lb) 510/1122 620/1364 690/1518
Net dimension (mm) 1450 x 2200 x 1100 (3 units/packing frame)
20' container : 24 units
Bucket size and Cap.
Size(mm/inch)
250/10
300/12
400/16
450/18
500/20
550/22
Cap.(mm)
0.030
0.036
0.048
0.054
0.06
0.066

We don't carry PTO pumps. PTO pumps that works with LW series backhoe, Prince or Kelly PTO pump, 7 GPM for LW6, 7/10 GPM for LW7, 10 GPM for LW8

packing units packing size in mm backhoe net

weight in kg

 weights for

iron frame


LW6 single 2250x800x1100 460kg single unit 100kg
2 units 2250x1200x1100
3 units  2250x1450x1100
LW7 single 2250x800x1100 570kg 2 units 140kg
2 units 2250x1250x1100
3 units 2250x1600x1100
LW8 single 2250x800x1100 640kg 3 units

230kg
2 units 2250x1200x1100
3 units 2250x1650x1100



The standard bucket is 400mm/16 inch for LW-6, LW-7, and LW-8.

Regarding to the connection of the LW-7 with tractor,
1.       If there are quick action couplings on the tractor's pump. The LW hose can be easily connected to the tractor by the quick action couplings.
2.       If there is no quick action coupling from the pump of your tractor, the LW hose can be connected to your tractor by threaded pipe ends. The thread of our pipe end is of metric system with metric-royal adaptor, so it works with both metric or royal.


Nice photos of LW-6 backhoe from Esa 1 2 3 4

Foton Backhoe Specifications
　
Name
Backhoe 30-40 hp
Backhoe 50-70 hp
Type
LW-7
WTY-5
Capacity (m3)
0.045
0.3
Digging Depth (m)
2
3.2
Unloading Distance (mm)
1150

Digging Time
5-7
5-7
Hydraulic pump CB310 CBG2080

　

Ship to major cities or port

All other tractors and implements　

Ask us
